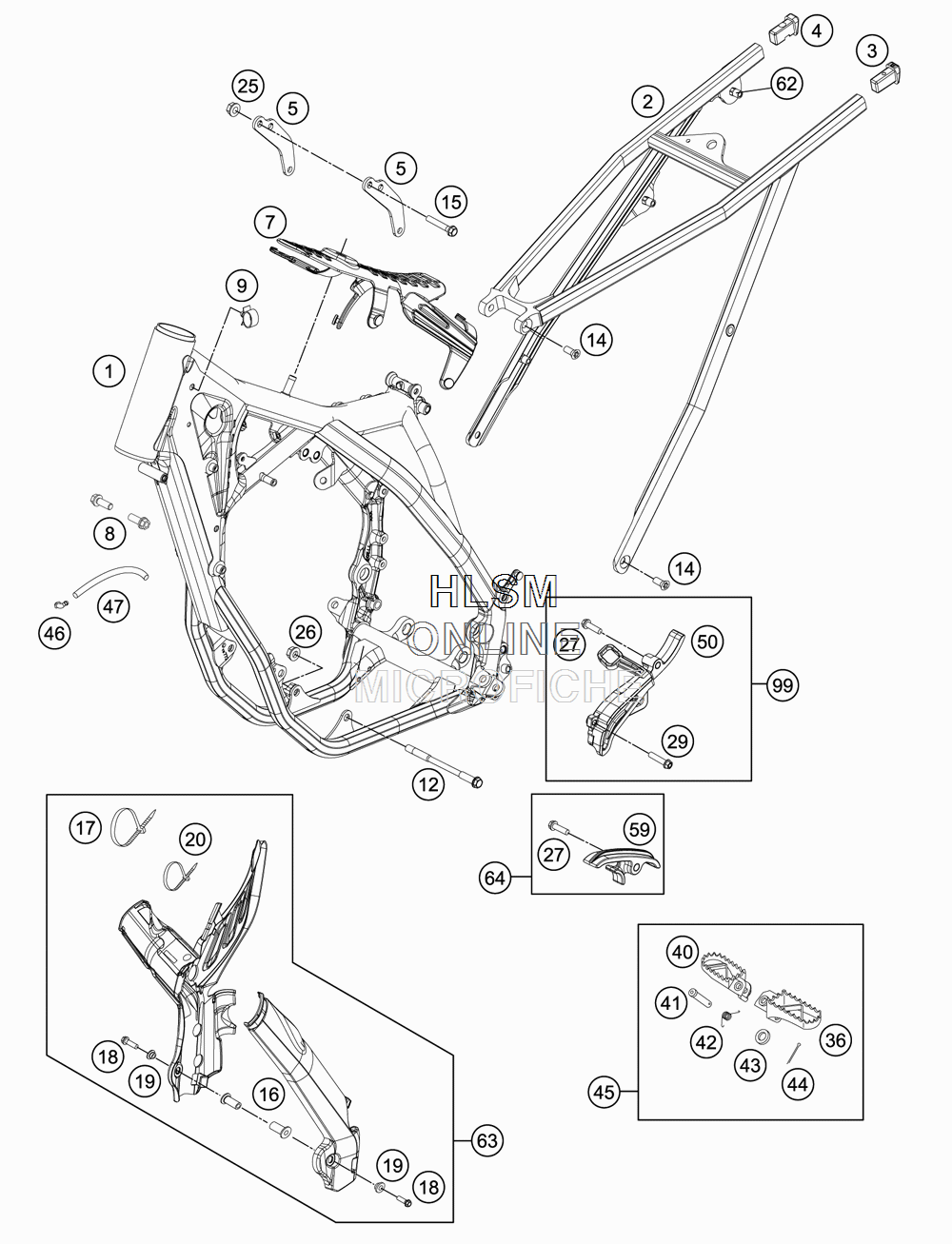

FRAME для Ktm 350 XCF - 2015 года выпуска

№

Артикул

Название
1

7770300130004 FRAME "777N4" (ORANGE)

FRAME "777N4" (ORANGE)

340 ₽
2

77203002000 SUB FRAME SX

SUB FRAME SX

97 690 ₽
3

78103002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

6 050 ₽
4

78103002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

5 490 ₽
5

77703013000 REINFORCING

REINFORCING

1 690 ₽
7

77207012000 TANK REST RUBBER

TANK REST RUBBER

2 160 ₽
8

0025080166S HH COLLAR SCREW M8X16 TX40

HH COLLAR SCREW M8X16 TX40

500 ₽
9

57013072100 WIRING HOLDER 16MM

WIRING HOLDER 16MM

150 ₽
12

77203014000 ENGINE BRAC.SCR. M10X115

ENGINE BRAC.SCR. M10X115

2 080 ₽
14

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
15

56530079000S HH COLLAR SCREW M8X44 WS13

HH COLLAR SCREW M8X44 WS13

530 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
17

44011076305 CABLE TIE 300/4,8MM (BLACK)

CABLE TIE 300/4,8MM (BLACK)

290 ₽
18

0738050250 COU.SUNK SCR. AH ISO7380 M5X25

COU.SUNK SCR. AH ISO7380 M5X25

270 ₽
19

54803092060 BUSH F . FRAME PROTECTION

BUSH F . FRAME PROTECTION

820 ₽
20

44011076140 CABLE TIE 140/2,5MM (BLACK)

CABLE TIE 140/2,5MM (BLACK)

100 ₽
25

06923080003 HEXAGON NUT DIN EN1661 M8 SW13

HEXAGON NUT DIN EN1661 M8 SW13

290 ₽
26

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
27

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
29

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
36

59003040250 FOOT PEG L/S (SILVER)

FOOT PEG L/S (SILVER)

11 770 ₽
40

59003041250 FOOT PEG R/S (SILVER)

FOOT PEG R/S (SILVER)

11 770 ₽
41

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

0125100003 W ASHER DIN0125-A10,5

W ASHER DIN0125-A10,5

290 ₽
44

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
45

5030314013390 FOOTPEG L. + R. CPL.

FOOTPEG L. + R. CPL.

45 270 ₽
46

50303089000 ANGLE PIECE

ANGLE PIECE

1 160 ₽
47

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
50

77203096000 SPROCKET COVER

SPROCKET COVER

3 600 ₽
59

77203053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 080 ₽
62

77303139000 BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

880 ₽
63

77203094000 PLASTIC FRAME PROTECTION SET

PLASTIC FRAME PROTECTION SET

14 050 ₽
64

77203053010 CHAIN SLIDING KIT BELOW CPL.

CHAIN SLIDING KIT BELOW CPL.

5 060 ₽
99

77203096010 SPROCKET COVER KIT

SPROCKET COVER KIT

4 700 ₽
