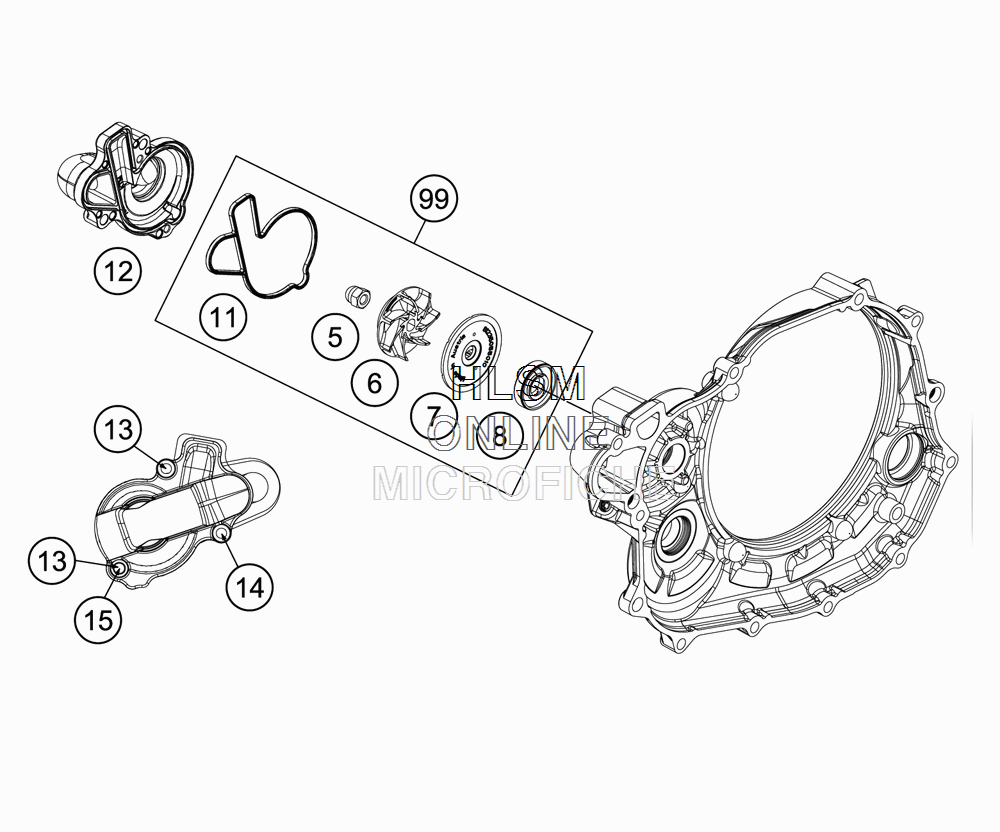

WATER PUMP для Ktm 450 SXF - 2015 года выпуска
-
№АртикулНазвание
-
561230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
681235055020 WATERPUMP ROTORWATERPUMP ROTOR
-
781235055110 DISC WATERPUMPDISC WATERPUMP
-
80760123073 SHAFT SEAL RING 12X30X7 PTFESHAFT SEAL RING 12X30X7 PTFE
-
1178135053000 WATERPUMP GASKETWATERPUMP GASKET
-
1278135052000 WATERPUMP COVER CPL.WATERPUMP COVER CPL.
-
130025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
140025060656 HH COLLAR SCREW M6X65 TX30HH COLLAR SCREW M6X65 TX30
-
150603061001 CU-SEAL RING DIN7603-6X10X 1CU-SEAL RING DIN7603-6X10X 1
-
9981235055015 WATERPUMP REP. KITWATERPUMP REP. KIT
