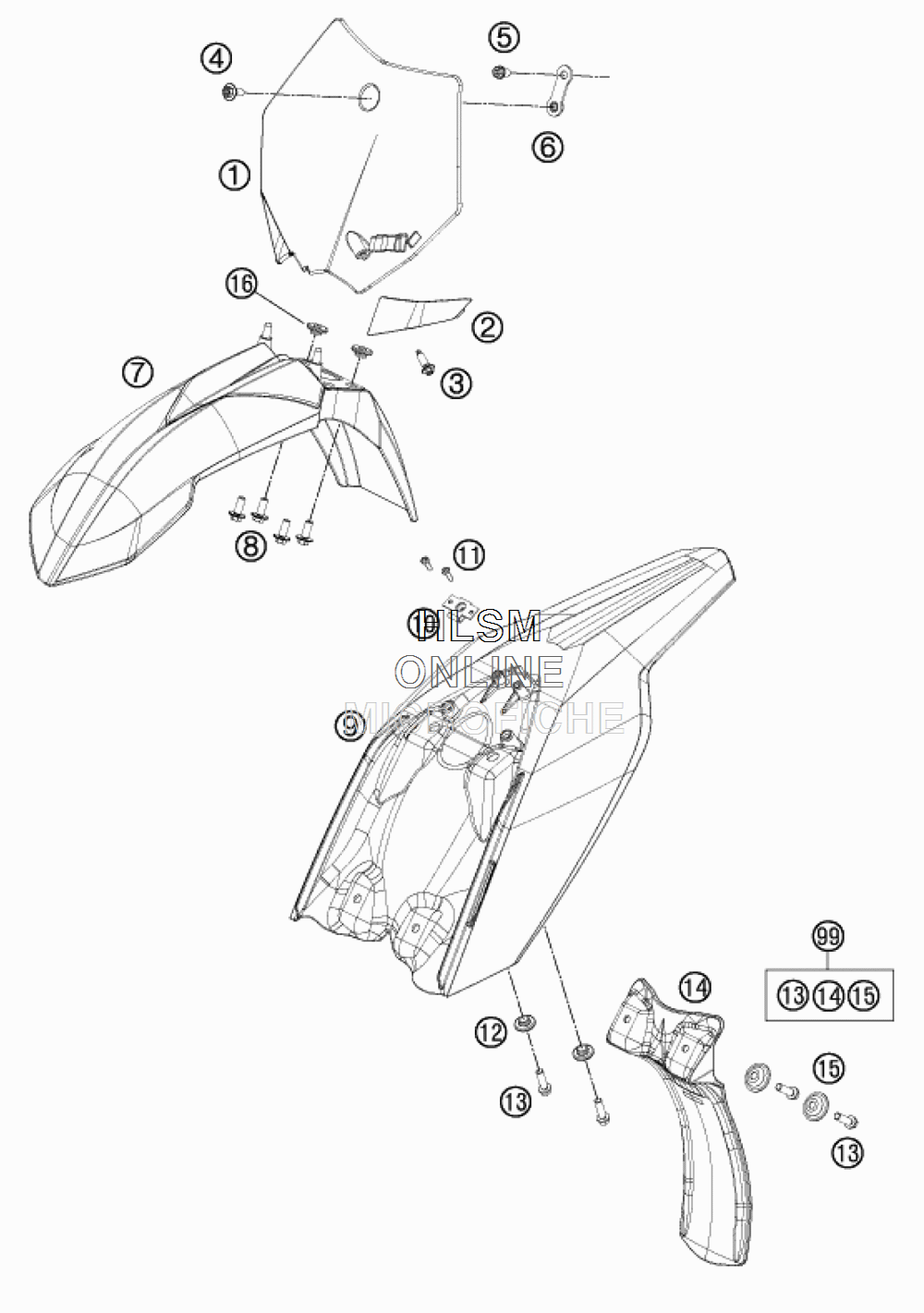

MASK FENDER для Ktm 50 SX - 2015 года выпуска
-
№АртикулНазвание
-
14520800700028 START NUMBER PLATESTART NUMBER PLATE
-
24520802200030 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
30017060206 SCREW F . PLASTIC K60X20AL SW6SCREW F . PLASTIC K60X20AL SW6
-
40024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
50025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
645208007050 RET AINING PLATE F . NUMBER PL.RET AINING PLATE F . NUMBER PL.
-
74520801000004 FENDERFENDER
-
80024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
945208013000X4 REAR PAR TREAR PAR T
-
1045007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
110981350163 SHEET MET .SCR.DIN7981- 3,5X16SHEET MET .SCR.DIN7981- 3,5X16
-
1254808020000 SPACER BUSHING 03SPACER BUSHING 03
-
130025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1445206010000 SPLASH PROTECT .SPLASH PROTECT .
-
1572210079000 BUCKETBUCKET
-
1650213161000 COLLAR BUSHINGCOLLAR BUSHING
-
9945206010010 SPLASH PROTECTOR KIT (INCL 13,14,15)SPLASH PROTECTOR KIT (INCL 13,14,15)
