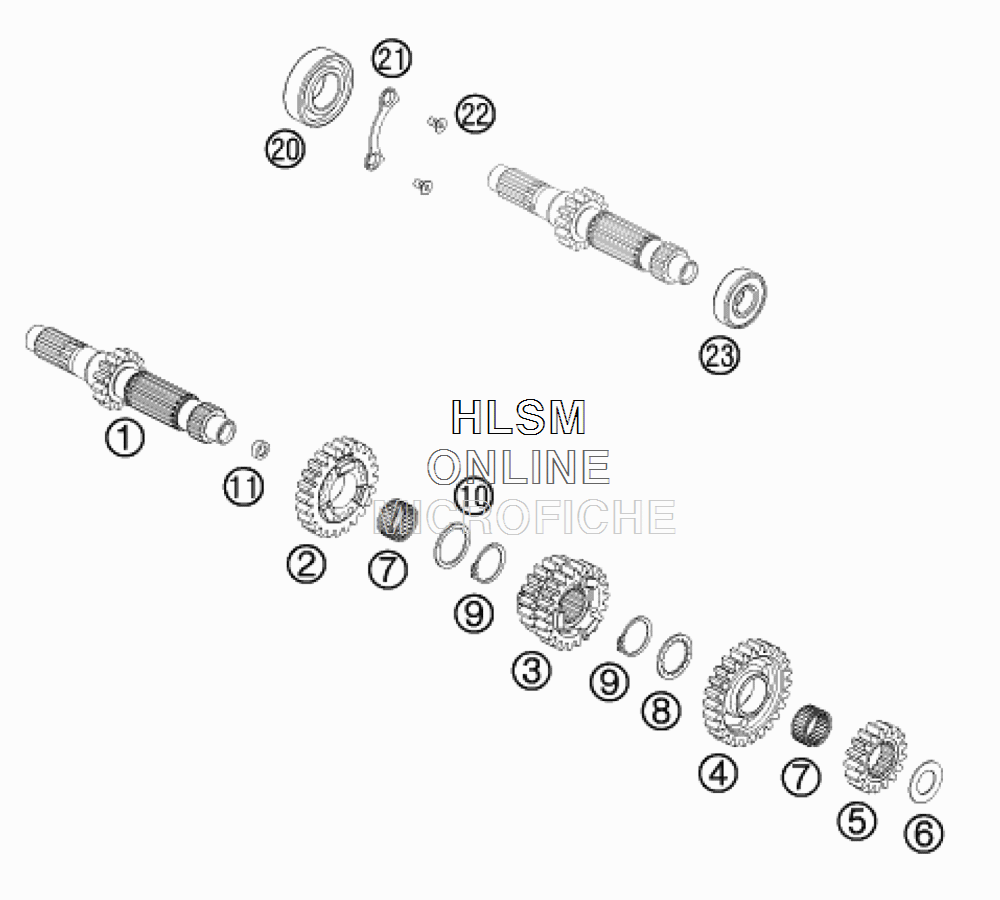

TRANSMISSION - MAIN SHAFT для Ktm 500 EXC - 2015 года выпуска
-
№АртикулНазвание
-
178133001050 MAIN SHAFT 14 T .MAIN SHAFT 14 T .
-
278033005100 IDLER GEAR 5. GEARIDLER GEAR 5. GEAR
-
378033003000 SLIDING GEAR 3/4 G.SLIDING GEAR 3/4 G.
-
478033006100 IDLER GEAR 6. GEARIDLER GEAR 6. GEAR
-
578033002000 SOLID GEAR 2.G. 08SOLID GEAR 2.G. 08
-
656033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
70405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
878033033000 STOP DISK 23 X 32 X 1,5STOP DISK 23 X 32 X 1,5
-
90471250120 CIRCLIP DIN0471-25X1 ,2CIRCLIP DIN0471-25X1 ,2
-
1078033031000 STOP DISK 26 X 32 X 1,5STOP DISK 26 X 32 X 1,5
-
1178033001110 BUSHINGBUSHING
-
200625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
2178033032000 TAB WASHER BEARING MAIN SHAFTTAB WASHER BEARING MAIN SHAFT
-
220019050106S INT . TORX FLAT HEAD M5X10 10.9INT . TORX FLAT HEAD M5X10 10.9
-
230625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
