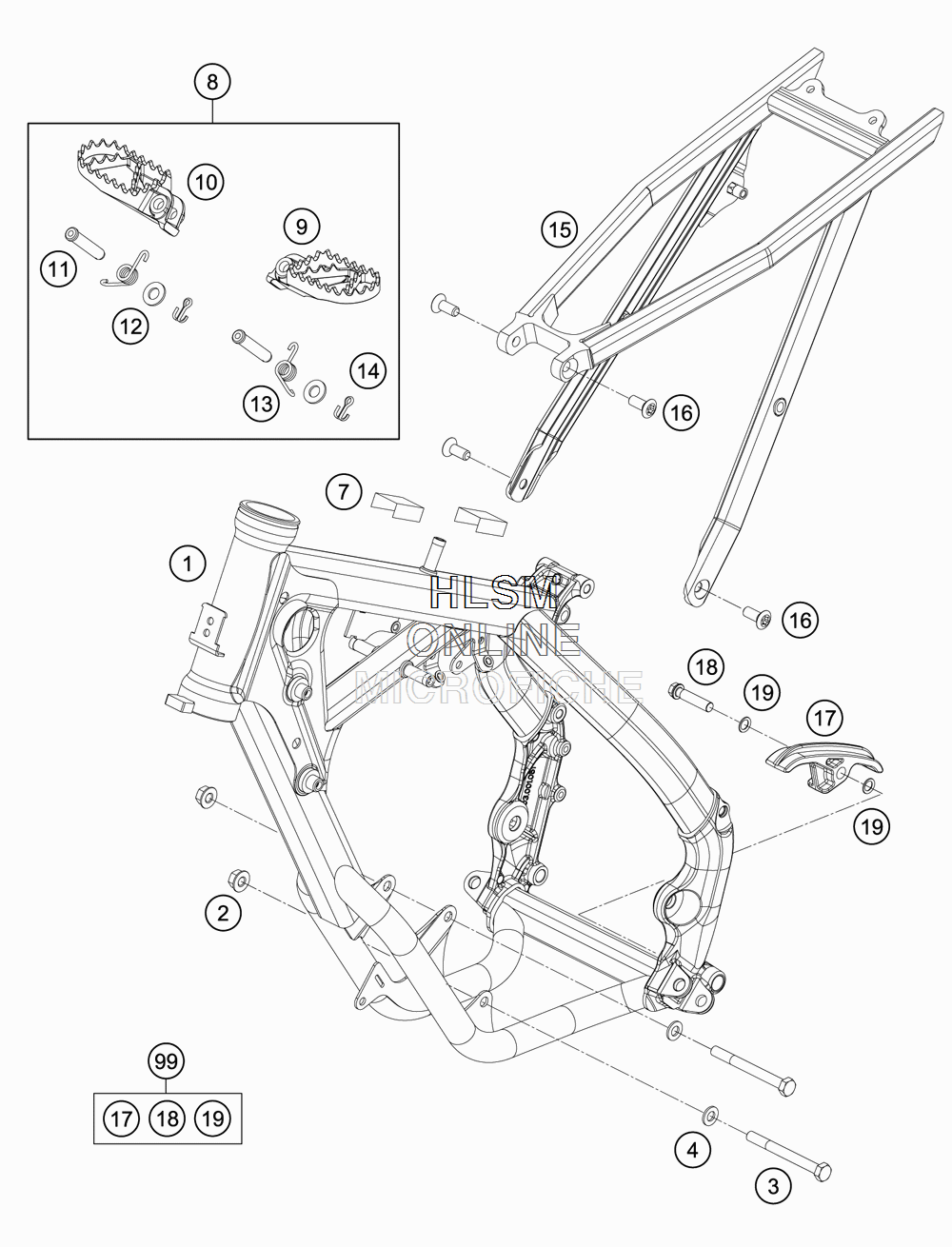

FRAME для Ktm 65 SXS - 2015 года выпуска
-
№АртикулНазвание
-
146203001300BE FRAME "462O3" (ANTHRAZITE)FRAME "462O3" (ANTHRAZITE)
-
206923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
30931080805S HH SCREW DIN931 M8X80 SSHH SCREW DIN931 M8X80 SS
-
40125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
750307012000 ADH. FOIL TRANSP . 80X80 MMADH. FOIL TRANSP . 80X80 MM
-
847103040033 FOOTREST CPL.FOOTREST CPL.
-
947103040000 FOOTREST L/SFOOTREST L/S
-
1047103041000 FOOTREST R/SFOOTREST R/S
-
1154803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
120125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1354603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
140094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
1546203002000 SUB FRAME 65 SXSUB FRAME 65 SX
-
160019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
1777303053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
180025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
1936003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
9977303053110 CHAIN SLIDING KIT BELOWCHAIN SLIDING KIT BELOW
