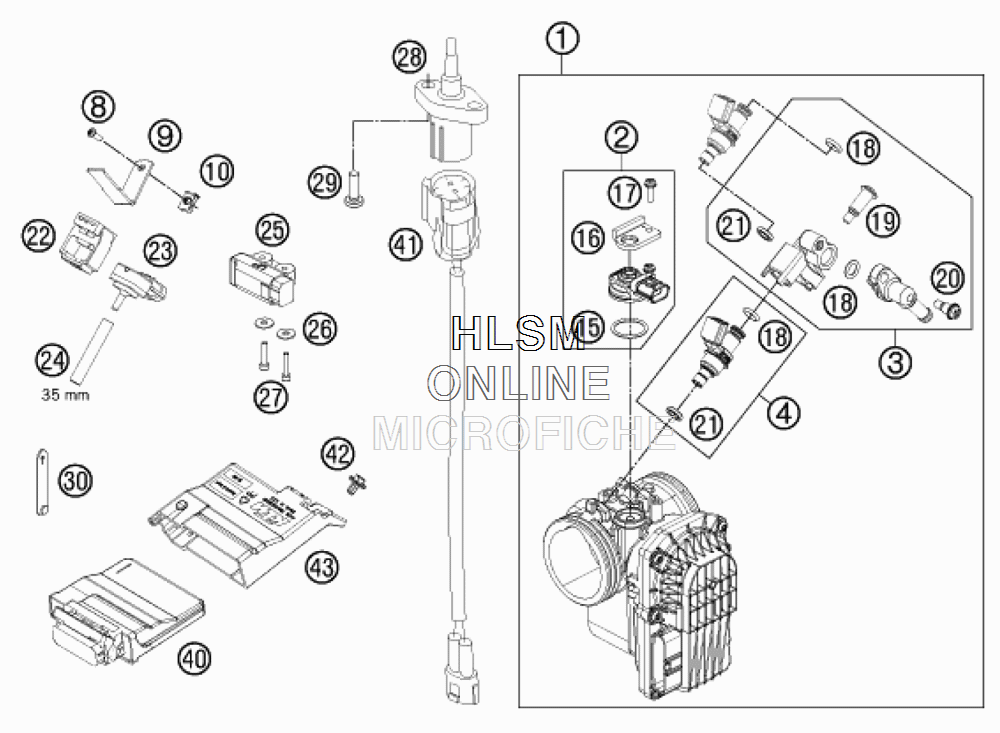

THROTTLE BODY для Ktm 690 DUKE ABS WHITE - 2015 года выпуска

№

Артикул

Название
1

76041001100 THROTTLE BODY

THROTTLE BODY

138 280 ₽
2

75041085044 MAP SENSOR CPL.

MAP SENSOR CPL.

45 060 ₽
3

76041013044 FUEL PIPE CONNECTOR CPL.

FUEL PIPE CONNECTOR CPL.

23 860 ₽
4

76041023044 FUEL INJECTOR ASSY SET

FUEL INJECTOR ASSY SET

47 050 ₽
8

78105081010 SCREW TORX M5X10

SCREW TORX M5X10

290 ₽
9

76003001077 PRESSURE SENSOR HOLDER

PRESSURE SENSOR HOLDER

2 100 ₽
10

69008021080 RANGE CHANGE MET AL NUT M5

RANGE CHANGE MET AL NUT M5

730 ₽
15

75041085010 O-RING

O-RING

1 400 ₽
16

75041085020 PLATE, STAY

PLATE, STAY

1 320 ₽
17

75041085030 SCREW WASHER

SCREW WASHER

570 ₽
18

75041023020 O-RING 7,2X2,2

O-RING 7,2X2,2

2 430 ₽
19

75041013060 SCREW SHOULDER

SCREW SHOULDER

1 550 ₽
20

75041013010 SCREW SHOULDER

SCREW SHOULDER

1 610 ₽
21

75041023010 SEAL RING

SEAL RING

3 070 ₽
22

61041085150 RUBBER SUPP. PRESSURE SENS.

RUBBER SUPP. PRESSURE SENS.

1 200 ₽
23

61041085100 PRESSURE SENSOR

PRESSURE SENSOR

33 410 ₽
24

60031098001 HOSE 3,2X8,5 PER METER

HOSE 3,2X8,5 PER METER

3 410 ₽
25

61041088000 ROLLOVER SENSOR

ROLLOVER SENSOR

15 650 ₽
26

61041088050 SHIM 4,3X15X1,2 5MM GALVANIZED

SHIM 4,3X15X1,2 5MM GALVANIZED

180 ₽
27

0912040253 AH SCREW DIN0912-M 4X25

AH SCREW DIN0912-M 4X25

60 ₽
28

61041080000 AMBIENT -AIR TEMPERA TURE SENSOR

AMBIENT -AIR TEMPERA TURE SENSOR

5 490 ₽
29

0018050163 INT . TORX OVAL HEAD M5X16

INT . TORX OVAL HEAD M5X16

150 ₽
30

60011093060 RUBBER CABLE TIE 60MM

RUBBER CABLE TIE 60MM

880 ₽
40

76041031000 ELECTRONIC CONTROL UNIT

ELECTRONIC CONTROL UNIT

134 920 ₽
41

76011048000 AMBIENT -AIR TEMP . SENSOR CABLE

AMBIENT -AIR TEMP . SENSOR CABLE

1 490 ₽
42

0024060106 HH COLLAR SCREW M6X10 TX30

HH COLLAR SCREW M6X10 TX30

500 ₽
43

76041029000 TIMING CHARGER EFI HOLDER

TIMING CHARGER EFI HOLDER

2 980 ₽
