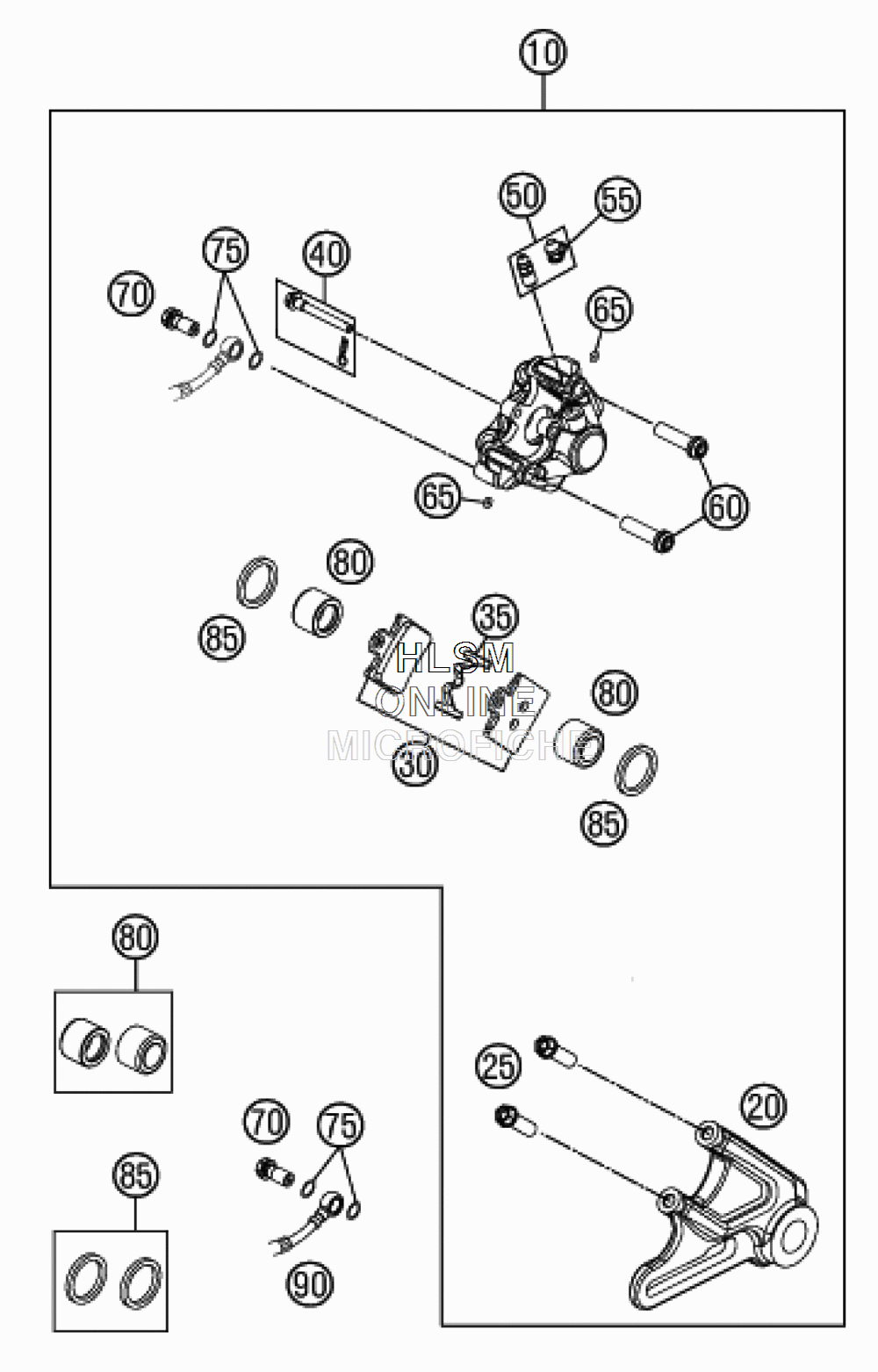

BRAKE CALIPER REAR для Ktm 85 SX 19/16 - 2015 года выпуска
-
№АртикулНазвание
-
1047013080300 BRAKE CALIPER REAR CPL.BRAKE CALIPER REAR CPL.
-
2047013075000 BRAKE CALIPER SUPPORT CPL.BRAKE CALIPER SUPPORT CPL.
-
250025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
3047013090300 BRAKE PADS REARBRAKE PADS REAR
-
3547013018000 RETAINING SPRINGRETAINING SPRING
-
4047013092000 SPECIAL SCREW WITH SPLINT PINSPECIAL SCREW WITH SPLINT PIN
-
5047013085000 BLEEDER SCREW M8X1BLEEDER SCREW M8X1
-
5547013021000 CAP FOR BLEEDER SCREWCAP FOR BLEEDER SCREW
-
6047013084000 SPECIAL SCREW CALIPER M8X30SPECIAL SCREW CALIPER M8X30
-
6507700257178 O-RING 2,57X1,78O-RING 2,57X1,78
-
7047013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
750770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
8047013083200 REPAIR KIT BRAKE PISTONREPAIR KIT BRAKE PISTON
-
8547013081100 REP . KIT SEAL. RINGS REARREP . KIT SEAL. RINGS REAR
-
9047013070000 BRAKE HOSE REARBRAKE HOSE REAR
