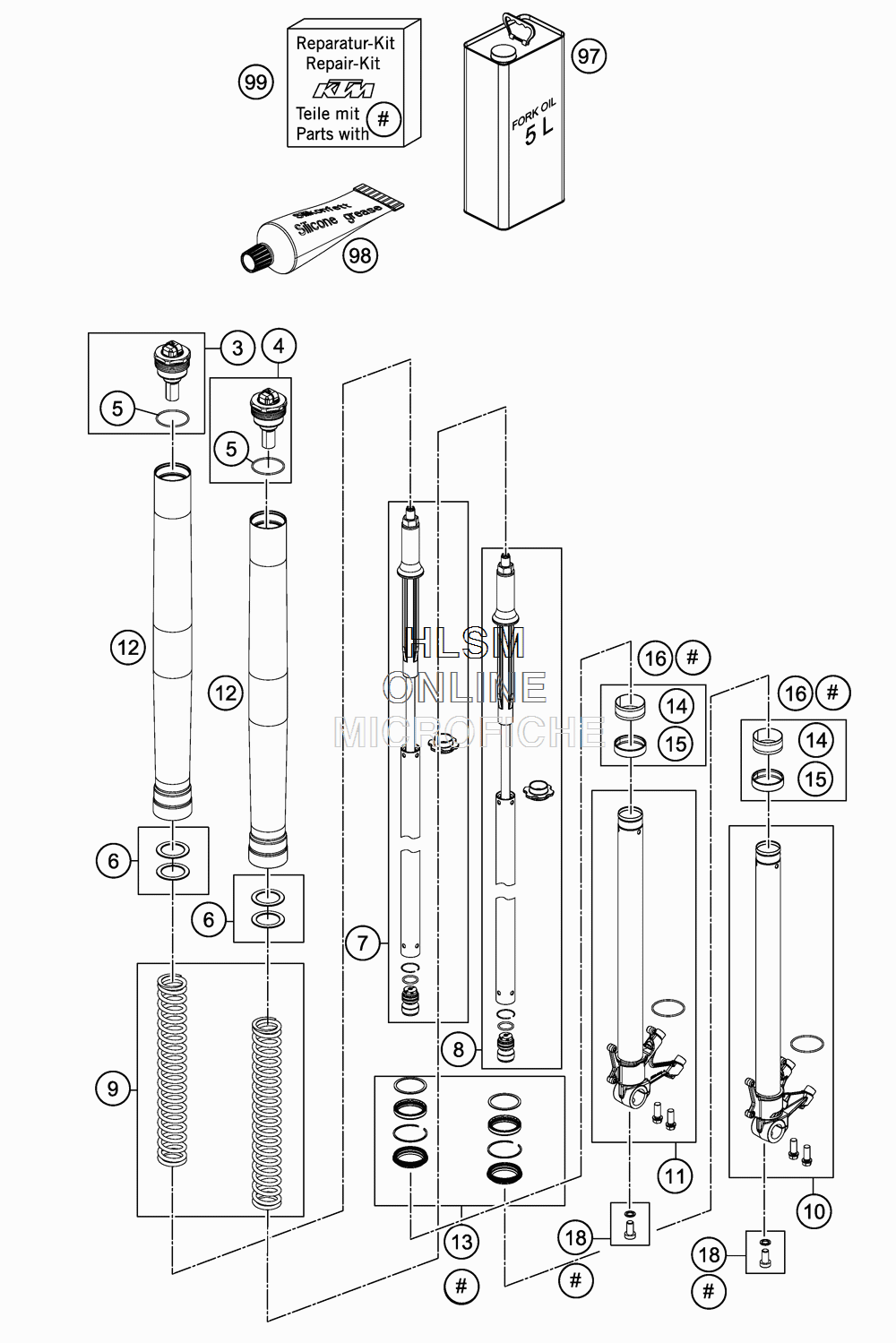

FRONT FORK DISASSEMBLED для Ktm 1190 ADVENTURE ABS GREY - 2016 года выпуска
-
№АртикулНазвание
-
343570712S SCREW CAP M15X1.5 REBSCREW CAP M15X1.5 REB
-
443570668S SCREW CAP M15X1.5 COMSCREW CAP M15X1.5 COM
-
546810340 O-RING NBR 45X2O-RING NBR 45X2
-
6R514 SPRING SP ACER KITSPRING SP ACER KIT
-
757430049S1 CARDRIDGE SET CPL. R/SCARDRIDGE SET CPL. R/S
-
857430048S1 CARDRIDGE SET CPL. L/SCARDRIDGE SET CPL. L/S
-
995010059S1 SPRING KITSPRING KIT
-
1048601081S1 AXLE CLAMP W . INNER TUBE L/SAXLE CLAMP W . INNER TUBE L/S
-
1148601082S1 AXLE CLAMP W. INNER TUBE R/SAXLE CLAMP W. INNER TUBE R/S
-
1248601099 OUTER TUBE L=550 D54/D60 3LOUTER TUBE L=550 D54/D60 3L
-
13R14040 GASKET KIT CPL.GASKET KIT CPL.
-
1448601009 GUIDING BUSH 48X52X12 R11GUIDING BUSH 48X52X12 R11
-
1548601008 GUIDING BUSH 47X49X20 R11GUIDING BUSH 47X49X20 R11
-
16R14028 GUIDING BUSH SETGUIDING BUSH SET
-
1800501020S1 AH SCREW M10X20 SETAH SCREW M10X20 SET
-
9748601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
98T511 SILICONE GREASE F. DUST STRISILICONE GREASE F. DUST STRI
-
99R14037 REP. KIT ADV. 2013REP. KIT ADV. 2013
