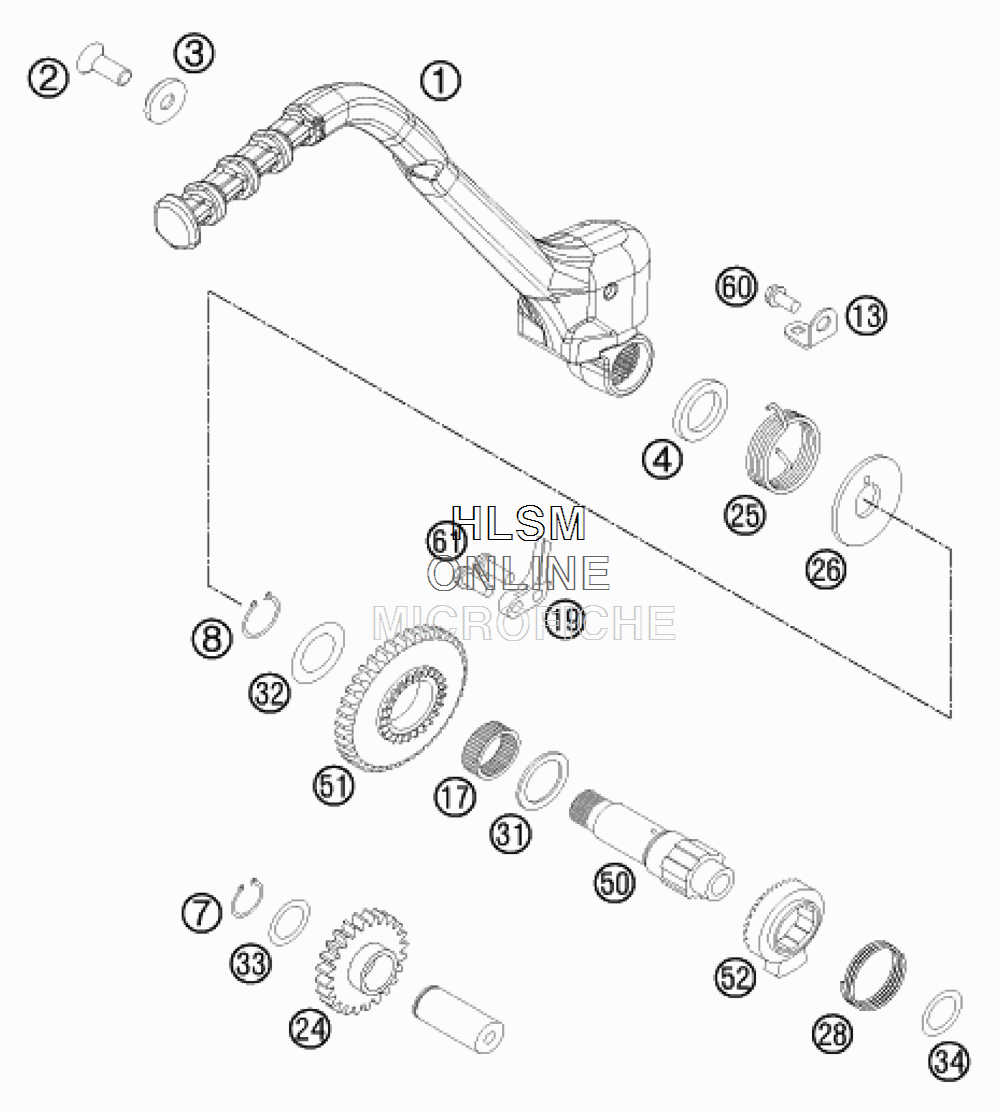

KICK STARTER для Ktm 250 SX - 2016 года выпуска
-
№АртикулНазвание
-
177133070144 KICK STARTER CPL.KICK STARTER CPL.
-
20019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
354633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
-
40760193070 SHAFT SEAL RING 19X30X7 BSHAFT SEAL RING 19X30X7 B
-
70471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
80471190120 CIRCLIP DIN0471-19X1,2CIRCLIP DIN0471-19X1,2
-
1354633074000 SPRING HANGERSPRING HANGER
-
170405222610 NEEDLE BEARING K 22X26X10 ANEEDLE BEARING K 22X26X10 A
-
1959033069000 BUMP PARTBUMP PART
-
2454833024000 INTERMEDIATE GEARINTERMEDIATE GEAR
-
2554633025000 KICK STARTER SPRINGKICK STARTER SPRING
-
2654633026000 DRIVING HUBDRIVING HUB
-
2858033028000 RATCHET GEAR SPRING 1,2 MMRATCHET GEAR SPRING 1,2 MM
-
3158033031000 STOP DISK 22,2 X 30 X 1,5STOP DISK 22,2 X 30 X 1,5
-
3259033080000 SHIM 20X32X1SHIM 20X32X1
-
3354633090000 STOP DISK 17,2X25X1STOP DISK 17,2X25X1
-
340988172405 SHIM WASHER DIN0988-17X24X0,5SHIM WASHER DIN0988-17X24X0,5
-
5059033050100 KICK STARTER SHAFTKICK STARTER SHAFT
-
5154833051034 KICK STARTER GEAR 34-TKICK STARTER GEAR 34-T
-
5259033052000 RATCHET GEAR KICKSTARTERRATCHET GEAR KICKSTARTER
-
600025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
610025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
