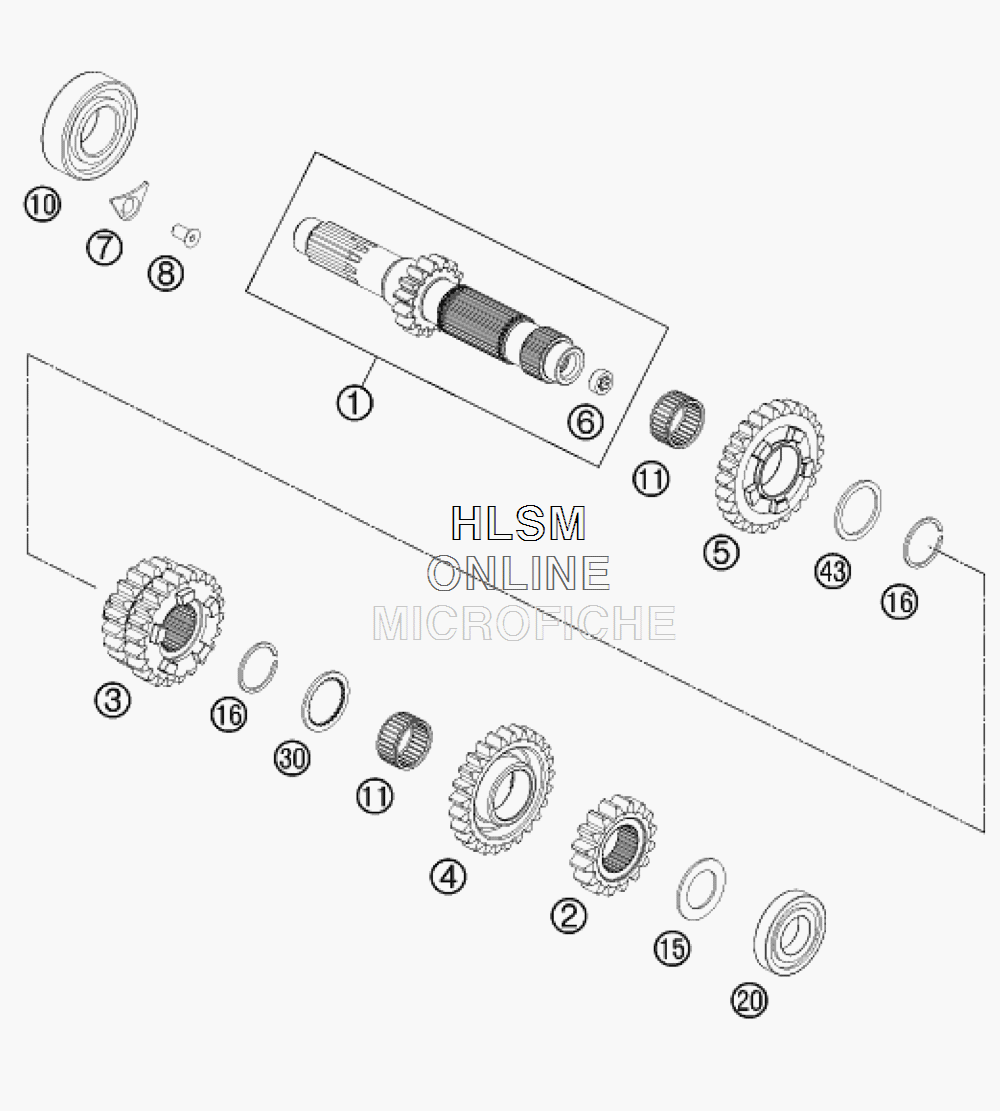

TRANSMISSION - MAIN SHAFT для Ktm 350 XCF - 2016 года выпуска
-
№АртикулНазвание
-
177233201000 MAIN SHAFT CPL. 15ZMAIN SHAFT CPL. 15Z
-
254833202000 SOLID GEARSOLID GEAR
-
379233103000 SLIDING GEAR 3./4.G. Z=20/22SLIDING GEAR 3./4.G. Z=20/22
-
454833205000 IDLER GEAR 5.G, Z =25IDLER GEAR 5.G, Z =25
-
554833206000 IDLER GEAR 6. G, Z=26IDLER GEAR 6. G, Z=26
-
678033001110 BUSHINGBUSHING
-
775030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
80019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
100625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
110405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
1577233015000 DISK 20,2X32X1,3DISK 20,2X32X1,3
-
160417024000 CIRCLIP WS24CIRCLIP WS24
-
200625160041 BALL BEARING TM 16004 C4BALL BEARING TM 16004 C4
-
3054833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
-
4354833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
