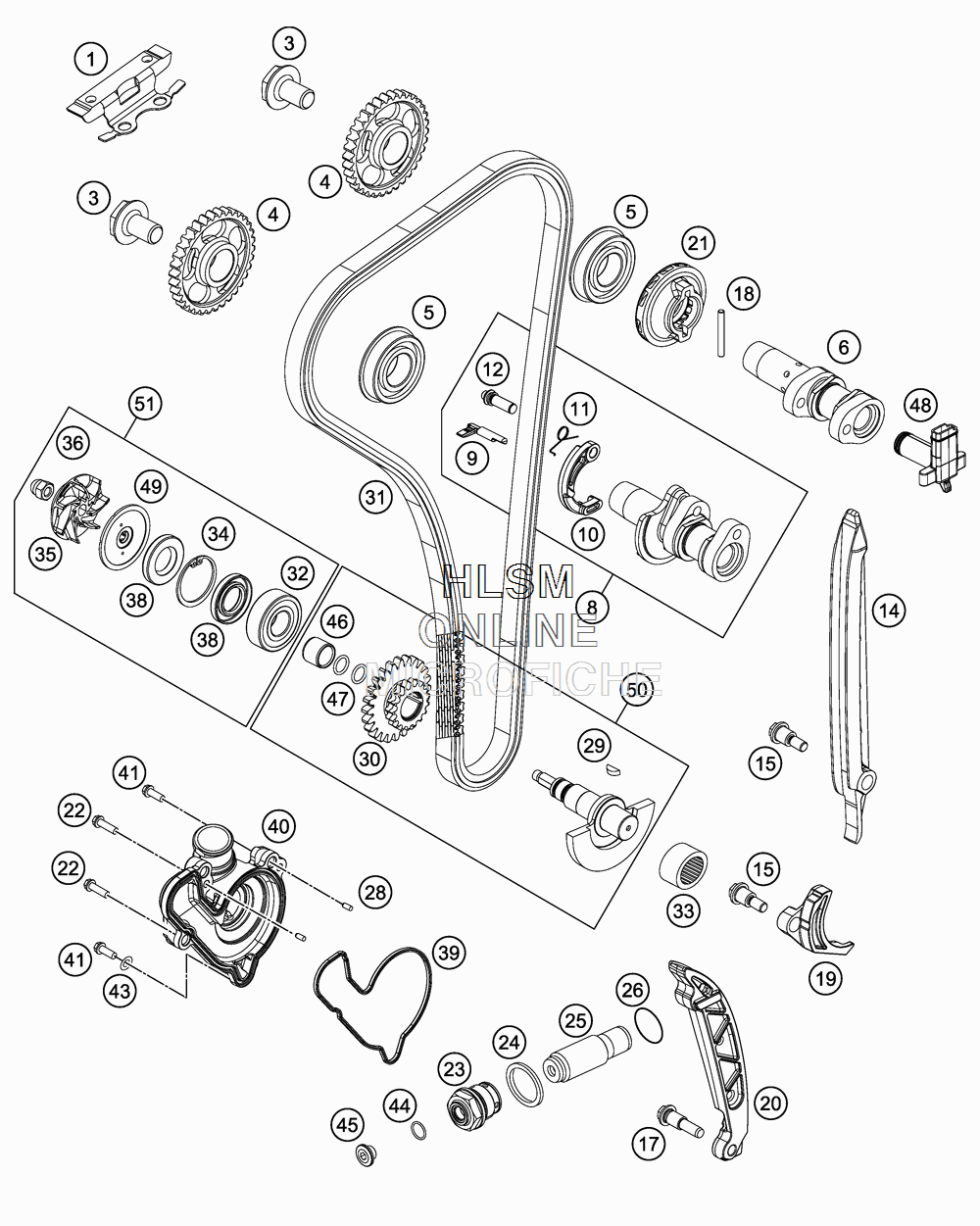

TIMING DRIVE для Ktm 350 XCFW SIX DAYS - 2016 года выпуска
-
№АртикулНазвание
-
177236004100 TIMING CHAIN GUIDE TOPTIMING CHAIN GUIDE TOP
-
377036012100 CAMSHAFT GEAR SCREWCAMSHAFT GEAR SCREW
-
477236011000 CAMSHAFT GEARCAMSHAFT GEAR
-
50625060043 BALL BEARING 6004 NR C3BALL BEARING 6004 NR C3
-
677536009000 CAMSHAFT INTAKECAMSHAFT INTAKE
-
872036010044 CAMSHAFT EXH. WITH DEKO CPL.CAMSHAFT EXH. WITH DEKO CPL.
-
977236015000 AUTO DECOMPRESSIONAUTO DECOMPRESSION
-
1077036016100 AUTO DECO WEIGHTAUTO DECO WEIGHT
-
1177236017000 SPRING FOR AUTO DECOMPR.SPRING FOR AUTO DECOMPR.
-
1277236019000 BUSHING SCREW AUTODEC.BUSHING SCREW AUTODEC.
-
1477236001000 TIMING CHAIN GUIDETIMING CHAIN GUIDE
-
1577236001160 BUSHING SCREW M6BUSHING SCREW M6
-
1777236002160 BUSHING SCREW M8BUSHING SCREW M8
-
180402035298 NEEDLE ROOLER NRB 3.5X29.8-G2NEEDLE ROOLER NRB 3.5X29.8-G2
-
1977236005000 SECURING PROTECTIONSECURING PROTECTION
-
2077236002000 TENSIONING RAILTENSIONING RAIL
-
2177236082000 VENTILATION GEAR CPL.VENTILATION GEAR CPL.
-
220025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
2377336008000 HOLDING BOLT M24X1,5HOLDING BOLT M24X1,5
-
240603242920 CU SEAL-RING DIN7603 A24X29X2CU SEAL-RING DIN7603 A24X29X2
-
2577036003000 CHAIN ADJUSTER HYD.CHAIN ADJUSTER HYD.
-
260770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
280402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
290888030037 WOODRUFF KEY DIN6888-3X3,7WOODRUFF KEY DIN6888-3X3,7
-
3077236076000 TIMING VALVE TWIN WHEELTIMING VALVE TWIN WHEEL
-
3177236013000 TIMING CHAINTIMING CHAIN
-
320625062022 BALL BEARING 6202 C0 2BALL BEARING 6202 C0 2
-
3377230058000 NEEDLE BEARING NK16/16NEEDLE BEARING NK16/16
-
340472300120 CIRCLIP 30X1,2CIRCLIP 30X1,2
-
3581235055020 WATER PUMP ROTORWATER PUMP ROTOR
-
3661230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
3807601530451 SHAFT SEAL RING 15X30X4.5 BAUDSHAFT SEAL RING 15X30X4.5 BAUD
-
3977735053000 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
-
4077735052000 WATERPUMP COVERWATERPUMP COVER
-
410025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
430603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
440770010010 O-RING 10,00X1,00 NBR 70 SHO-RING 10,00X1,00 NBR 70 SH
-
4577236080100 SCREW PLUGSCREW PLUG
-
4677236072020 WEAR BUSHING WAPUWEAR BUSHING WAPU
-
4707700900151 O-RING 9X1,5 V80 SHO-RING 9X1,5 V80 SH
-
4877236081000 ANGLE PIECE F. BREATHER SYSTEMANGLE PIECE F. BREATHER SYSTEM
-
4981235055110 DISC WATER PUMPDISC WATER PUMP
-
5077536072033 BALANCER SHAFT CPL.BALANCER SHAFT CPL.
-
5177235055010 WATER PUMP REP. KITWATER PUMP REP. KIT
