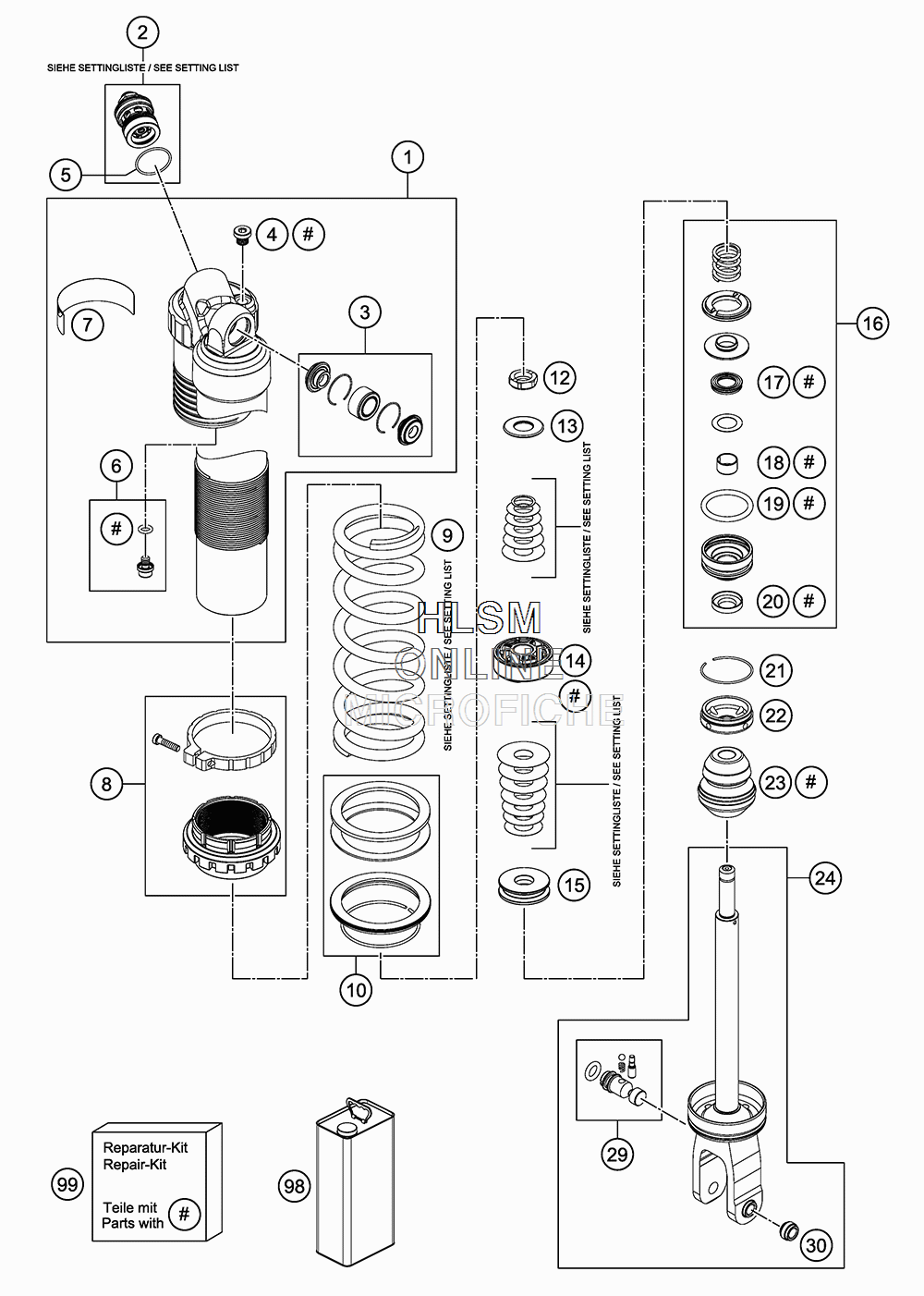

SHOCK ABSORBER DISASSEMBLED для Ktm 450 SX-F FACTORY EDITION - 2016 года выпуска
-
№АртикулНазвание
-
150181040S1 MONOSOCK UPPER PART CPL.MONOSOCK UPPER PART CPL.
-
250181101S1 DCC-COMPR .DAMP .CONTROL LINKDCC-COMPR .DAMP .CONTROL LINK
-
250181101S2 DCC-COMPR .DAMP .CONTROL LINKDCC-COMPR .DAMP .CONTROL LINK
-
250181101S3 DCC-COMPR .DAMP .CONTROL LINKDCC-COMPR .DAMP .CONTROL LINK
-
3R12025 REP .KIT BEAR./SEAL KGW 1525 HDREP .KIT BEAR./SEAL KGW 1525 HD
-
450180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
550180218 O-RING 25X1,5 VITONO-RING 25X1,5 VITON
-
636120151S PLUG SCREW M5X6 CPL.PLUG SCREW M5X6 CPL.
-
752000128 STICKER WP W ARNINGSTICKER WP W ARNING
-
850180991S SPRING ADJUSTER PLASTIC CPL.SPRING ADJUSTER PLASTIC CPL.
-
991210106S SPRING 247 42 N/MMSPRING 247 42 N/MM
-
991210107S SPRING 247 45 N/MMSPRING 247 45 N/MM
-
991210108S SPRING 247 48 N/MMSPRING 247 48 N/MM
-
991210109S SPRING 252 51 N/MMSPRING 252 51 N/MM
-
1050180824S SPRING PLATE SETSPRING PLATE SET
-
1150180273 CIRCLIP 58,2X2CIRCLIP 58,2X2
-
1250181112 PISTON ROD NUT M12X1PISTON ROD NUT M12X1
-
1350181092 REBOUND DISC 12X34 T2 H0REBOUND DISC 12X34 T2 H0
-
1450181030E PISTON ID12PISTON ID12
-
1550181091 REBOUND DISC 12X43 H8REBOUND DISC 12X43 H8
-
1650180603SA ADAPTER D50 H28 CPL.ADAPTER D50 H28 CPL.
-
1750180605S SEAL D18X30X5SEAL D18X30X5
-
1846180119 DU-BUSH 18X20X12DU-BUSH 18X20X12
-
1950180103 O-RING 41X5O-RING 41X5
-
2050180606 DUST SEAL 1828DUST SEAL 1828
-
2150180126 CIRCLIP 53X1,75CIRCLIP 53X1,75
-
2250180626 RESERVOIR CAP D=50 H=10RESERVOIR CAP D=50 H=10
-
2350181100 BUMP RUBBER 57X18 H46BUMP RUBBER 57X18 H46
-
2450181032S1 MONOSHOCK BOTTOM PART CPL.MONOSHOCK BOTTOM PART CPL.
-
2950181094S ADJUSTING SCREW M8X0,5 CPL.ADJUSTING SCREW M8X0,5 CPL.
-
3046811205 ADAPTOR-BUSH M10X1,50, D=15ADAPTOR-BUSH M10X1,50, D=15
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12029 REP . KIT 5018 LINK US/HQVREP . KIT 5018 LINK US/HQV
