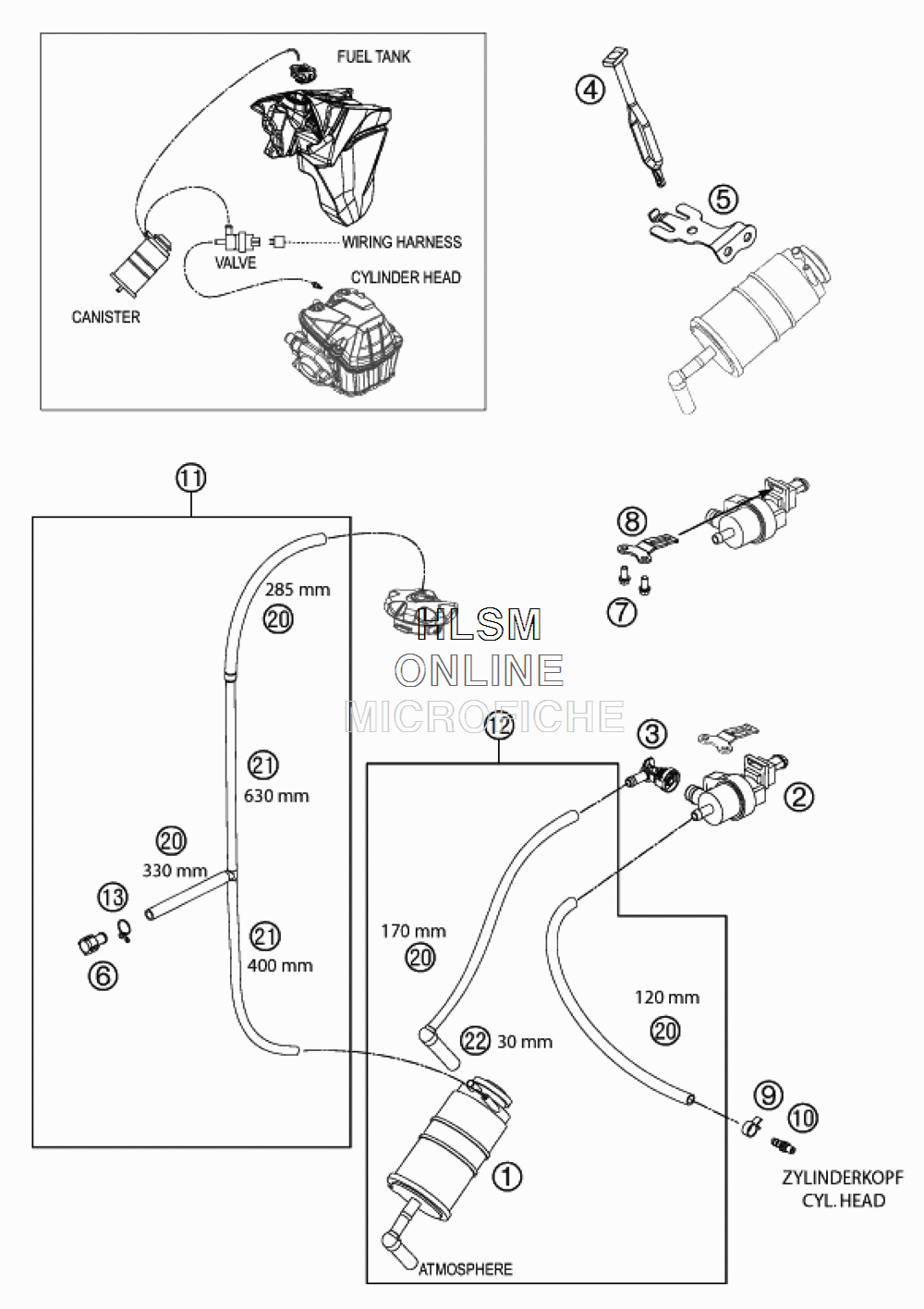

EV APORA TIVE CANISTER для Ktm 500 EXC - 2016 года выпуска
-
№АртикулНазвание
-
159415001100 EVAPORATIVE CANISTEREVAPORATIVE CANISTER
-
261115015000 VALVE FOR CARBON CANISTERVALVE FOR CARBON CANISTER
-
361115016000 FITTING PIECE NQV2 NW7 90°FITTING PIECE NQV2 NW7 90°
-
450303018000 RUBBER L=145MMRUBBER L=145MM
-
578115001050 BRACKET EVAP.CANISTERBRACKET EVAP.CANISTER
-
678015026000 PLUG D=6/10PLUG D=6/10
-
70025060086 HH COLLAR SCREW M6X8HH COLLAR SCREW M6X8
-
878115002000 BRACKET AKF-VALVEBRACKET AKF-VALVE
-
959007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
1060036023100 VACUUM CONECTION M6/0,5MMVACUUM CONECTION M6/0,5MM
-
1181215041033 DRAINING EVAP-CAN. CPL.DRAINING EVAP-CAN. CPL.
-
1278115001033 EVAP CANISTER CPL.EVAP CANISTER CPL.
-
1350231005000 HOSE CLAMP YDNAC 10119HOSE CLAMP YDNAC 10119
-
2078015019000 HOSE EPA D=6/10 L=2000MMHOSE EPA D=6/10 L=2000MM
-
2178015021000 HOSE EPA D=4/8 L=2000MMHOSE EPA D=4/8 L=2000MM
-
2260015219120 HOSE 8X12 FPM 120MMHOSE 8X12 FPM 120MM
