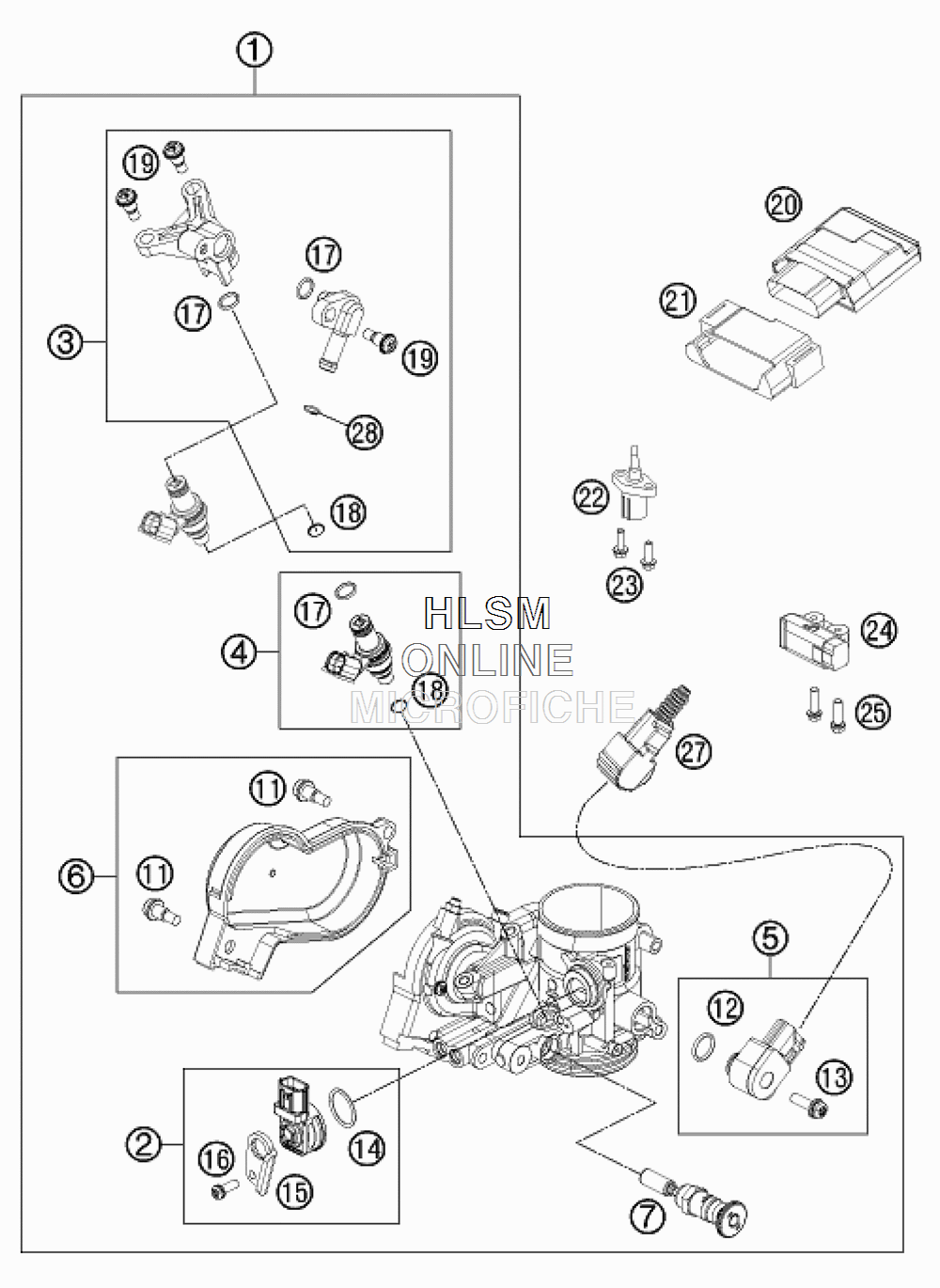

THROTTLE BODY для Ktm 500 XC-W - 2016 года выпуска
-
№АртикулНазвание
-
177241001000 THROTTLE BODYTHROTTLE BODY
-
281241085044 MAP SENSOR CPL.MAP SENSOR CPL.
-
381241013044 FUEL RAIL CPL.FUEL RAIL CPL.
-
475041023144 INJECTOR KIT CPL.INJECTOR KIT CPL.
-
581241077044 THROTTLE POSITION SENSOR CPL.THROTTLE POSITION SENSOR CPL.
-
681241056044 THROTTLE COVER CPL.THROTTLE COVER CPL.
-
781241060000 STARTER VALVE COMP.STARTER VALVE COMP.
-
1181241056020 SPECIAL SCREW AHSPECIAL SCREW AH
-
1261041077010 O-RING THROTTLE POS. SENSORO-RING THROTTLE POS. SENSOR
-
1381241077030 SPECIAL SCREWSPECIAL SCREW
-
1475041085010 O-RINGO-RING
-
1581241085020 PLATEPLATE
-
1681241085030 SPECIAL SCREWSPECIAL SCREW
-
1775041023020 O-RING 7,2X2,2O-RING 7,2X2,2
-
1875041023010 SEAL RINGSEAL RING
-
1975041013010 SCREW SHOULDERSCREW SHOULDER
-
2081241031100 ELECTRONIC CONTROL UNITELECTRONIC CONTROL UNIT
-
2177241031050 RUBBER BRACKET ECURUBBER BRACKET ECU
-
2261041080000 AMBIENT-AIR TEMPERATURE SENSORAMBIENT-AIR TEMPERATURE SENSOR
-
230025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
2461041088000 ROLLOVER SENSORROLLOVER SENSOR
-
250025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
2777111014050 PROTECTION CAP TPSPROTECTION CAP TPS
-
2877507017000 CLAMP ABA 14MMCLAMP ABA 14MM
