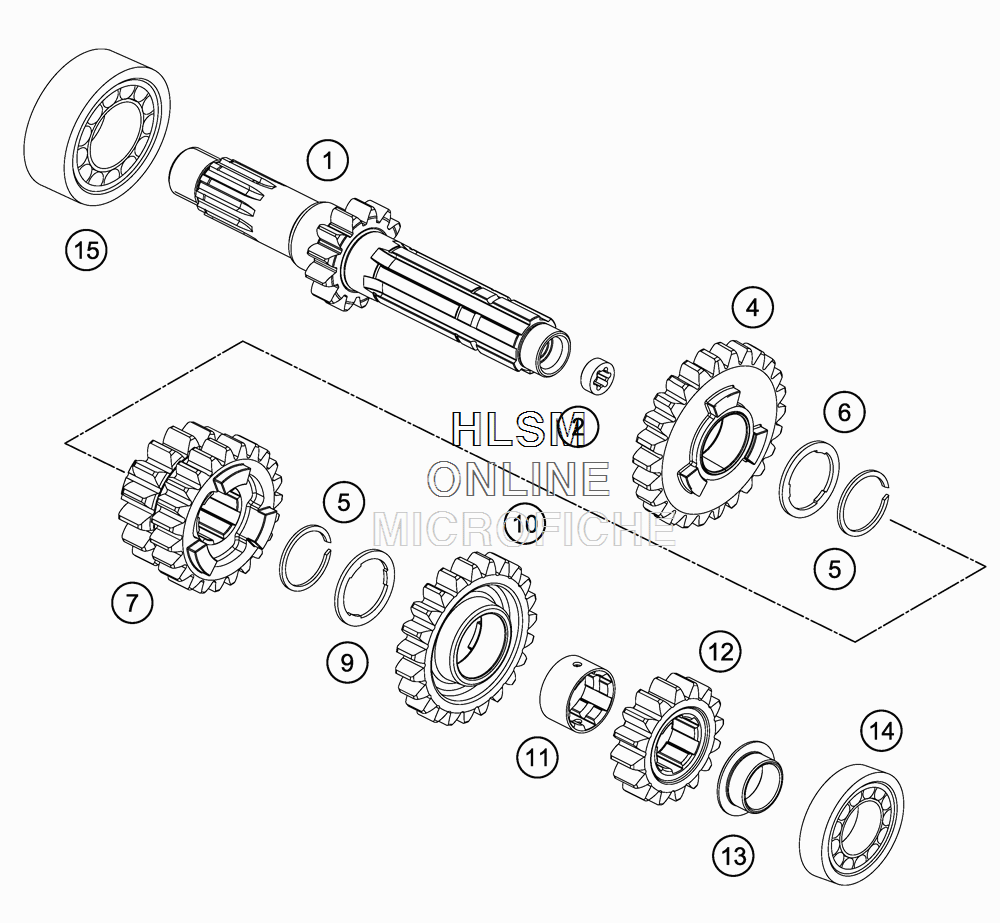

TRANSMISSION - MAIN SHAFT для Ktm FREERIDE 260R - 2016 года выпуска
-
№АртикулНазвание
-
172533001000 MAIN SHAFT CPL. 13TMAIN SHAFT CPL. 13T
-
278033001110 BUSHINGBUSHING
-
472033006044 IDLER GEAR 6TH GEAR CPL.IDLER GEAR 6TH GEAR CPL.
-
550133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
677733022000 STOP DISCSTOP DISC
-
777733103000 SLIDING GEAR 3/4 G. T="16/23"SLIDING GEAR 3/4 G. T="16/23"
-
977733021000 STOP DISCSTOP DISC
-
1077733105000 IDLER GEAR 5TH G. T=23IDLER GEAR 5TH G. T=23
-
1177733024000 IDLER GEAR BUSHINGIDLER GEAR BUSHING
-
1277733102000 SOLID GEAR 2NDSOLID GEAR 2ND
-
1377733027000 BUSHINGBUSHING
-
140625160040 GROOVED BALL BEAR. TM 16004 C3GROOVED BALL BEAR. TM 16004 C3
-
150625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
