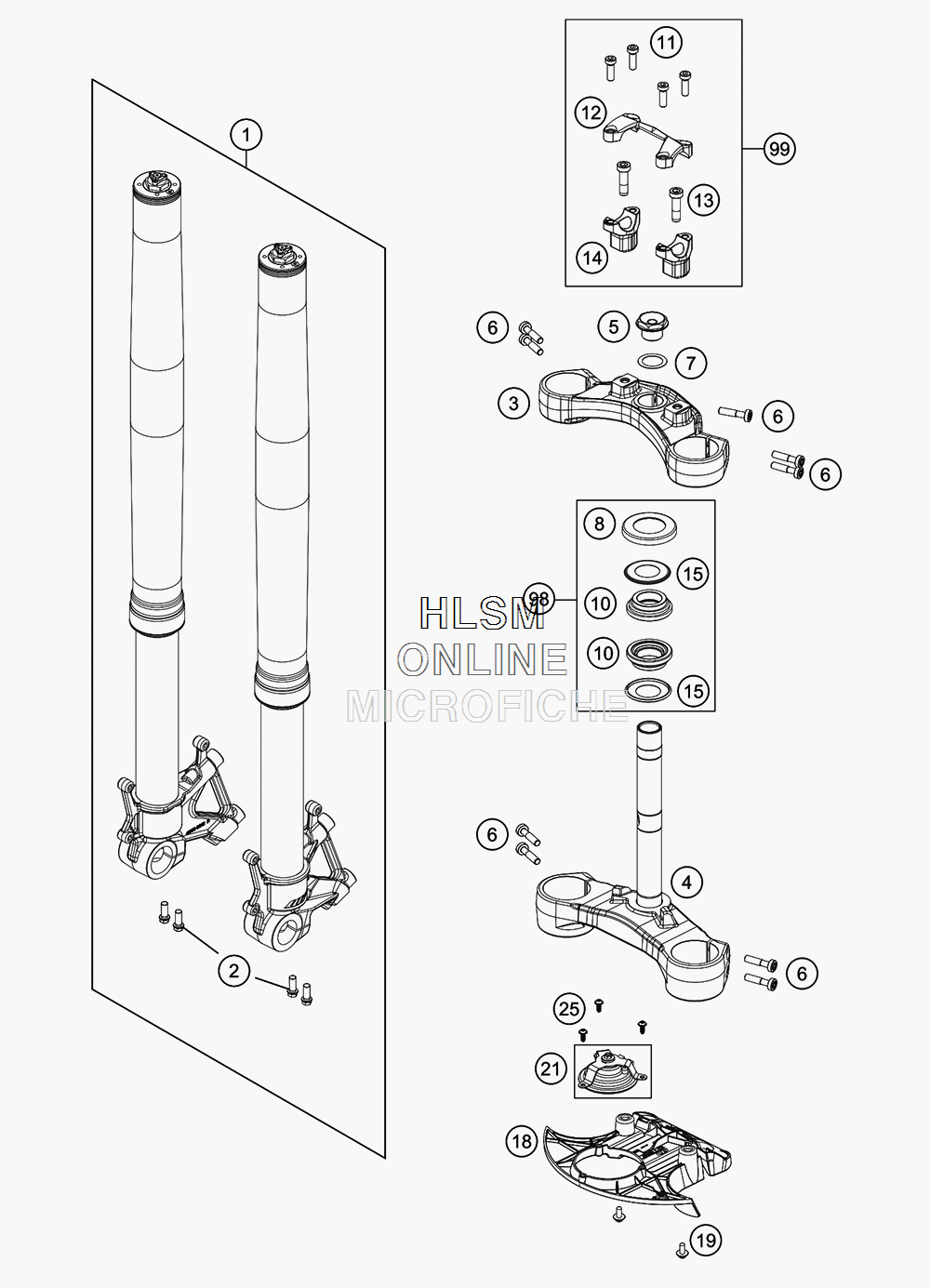

FRONT FORK- TRIPLE CLAMP для Ktm 1090 ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
114188Q2501 FORK ADVENTURE-R 2017FORK ADVENTURE-R 2017
-
20025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
36070113403233S UPPER TRIPLE CLAMPUPPER TRIPLE CLAMP
-
46040103203233S LOWER TRIPLE CLAMPLOWER TRIPLE CLAMP
-
56900103600001 STEERING HEAD SCREWSTEERING HEAD SCREW
-
60035080356 AH-COLLAR SCREW M8X35 ISA45AH-COLLAR SCREW M8X35 ISA45
-
70988253505 THRUST WASH DIN0988-25X35X0,5THRUST WASH DIN0988-25X35X0,5
-
869001086100 PROT. RING STEER. HEAD BEARINGPROT. RING STEER. HEAD BEARING
-
1069001181000 STEERINGHEAD KPL.17STEERINGHEAD KPL.17
-
110025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
127720103800030 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
130032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
145940103903730 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
1569001084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
1860308024200 TRIPLECLAMP-FACEPLATE BELOWTRIPLECLAMP-FACEPLATE BELOW
-
190024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
2160311060100 HORNHORN
-
250081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
9869001181010 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
-
9900050000927 HANDLEBAR SUPPOR T KIT ADV .1190HANDLEBAR SUPPOR T KIT ADV .1190
