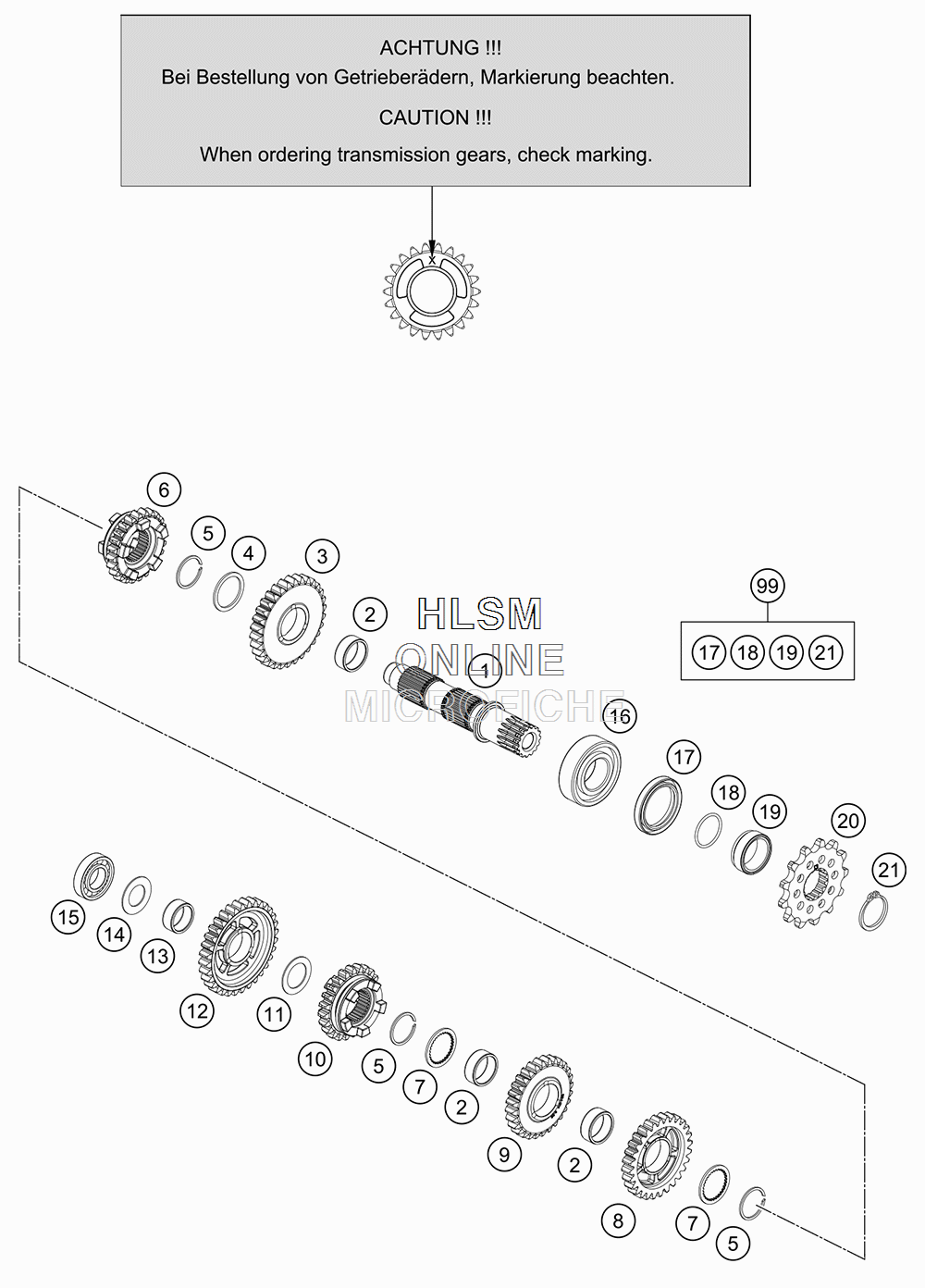

TRANSMISSION II - COUNTERSHAFT для Ktm 125 SX - 2017 года выпуска
-
№АртикулНазвание
-
150433010000 DRIVEN SHAFT CPL.DRIVEN SHAFT CPL.
-
20405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
350433012000 IDLER GEAR, 2ND GEAR, 30TIDLER GEAR, 2ND GEAR, 30T
-
454833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
50417024000 CIRCLIP WS24CIRCLIP WS24
-
650433016000 SLIDING GEAR, 6TH GEAR, 24TSLIDING GEAR, 6TH GEAR, 24T
-
754833043000 STOP DISC 25X0,8X30X30X7HSTOP DISC 25X0,8X30X30X7H
-
850433013000 IDLER GEAR, 3RD GEAR, 28TIDLER GEAR, 3RD GEAR, 28T
-
950433014000 IDLER GEAR, 4TH GEAR, 28TIDLER GEAR, 4TH GEAR, 28T
-
1050433015200 SLIDING GEAR 5TH GEAR T=23SLIDING GEAR 5TH GEAR T=23
-
1154833080000 STOP DISC 20,2X30X1STOP DISC 20,2X30X1
-
1250433011000 IDLER GEAR, 1ST GEAR, 32TIDLER GEAR, 1ST GEAR, 32T
-
130405202410 NEEDLE BEARING K20X24X10NEEDLE BEARING K20X24X10
-
1456033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
150625160031 GROOVED BALL B. 16003 C4 J1GROOVED BALL B. 16003 C4 J1
-
160625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
170760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
180770230020 O-RING 23,00X2,00 NBR70O-RING 23,00X2,00 NBR70
-
1950433030000 SP ACER BUSHING 12,4 MMSP ACER BUSHING 12,4 MM
-
2079233029013 SPROCKET 13TSPROCKET 13T
-
210471250200 CIRCLIP DIN0471 - 25X2CIRCLIP DIN0471 - 25X2
-
9900050000949 COUNTER SHAFT REP . KIT 125 SXCOUNTER SHAFT REP . KIT 125 SX
