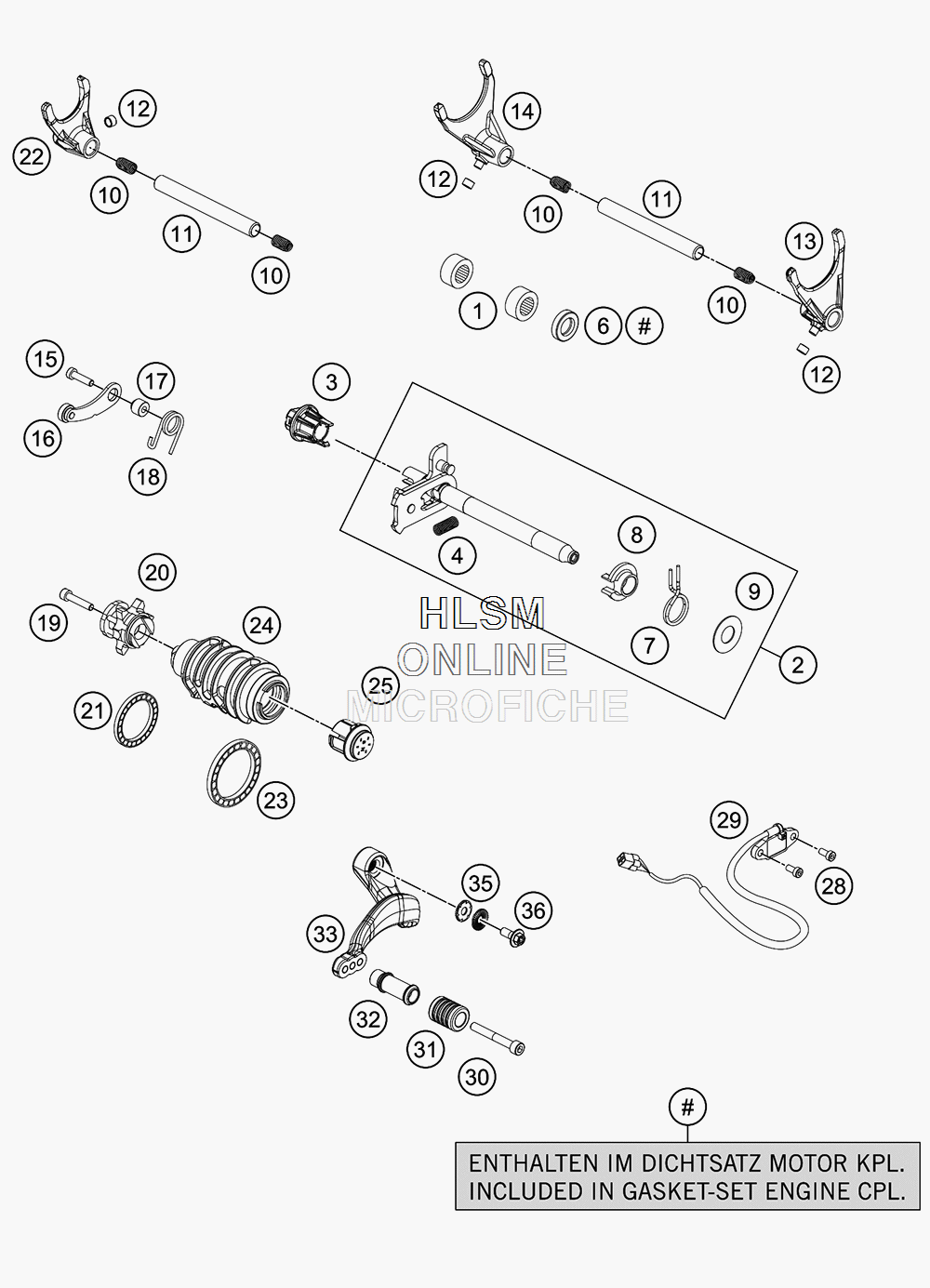

SHIFTING MECHANISM для Ktm 1290 SUPER ADVENTURE S ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
154632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
261434005044 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
361434050000 MAGNET HOLDERMAGNET HOLDER
-
456534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
60760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
761434014000 RETURN SPRING 2.3 MMRETURN SPRING 2.3 MM
-
854634020000 SPRING GUIDESPRING GUIDE
-
954634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
1058038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
1159034020000 SHIFT RAIL 11,8X105MMSHIFT RAIL 11,8X105MM
-
1250334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1361234002100 SHIFT FORK 2-3 GEARSHIFT FORK 2-3 GEAR
-
1461234001000 SHIFTING FORKSHIFTING FORK
-
150024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1661434024000 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
1775034052000 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
1861234023000 SPRING - LOCKING LEVERSPRING - LOCKING LEVER
-
190912060309 AH SCREW DIN0912-M 6X30 12.9AH SCREW DIN0912-M 6X30 12.9
-
2061434015000 SHIFT LOCA TING DRUM CPL.SHIFT LOCA TING DRUM CPL.
-
210625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2261234003200 SHIFT FORK 5-6 GEARSHIFT FORK 5-6 GEAR
-
230625068080 GROOVED BALL BEARING 6808 JRC3GROOVED BALL BEARING 6808 JRC3
-
2460434012001 SHIFTING DRUM 6GSHIFTING DRUM 6G
-
2579234012020 MAGNET HOLDER CPL.MAGNET HOLDER CPL.
-
280984050143S CYL. SCREW DIN6912 M5X14 8.8CYL. SCREW DIN6912 M5X14 8.8
-
2960411023000 GEAR POSITION SENSORGEAR POSITION SENSOR
-
300912060453 AH SCREW DIN0912-M 6X45AH SCREW DIN0912-M 6X45
-
3161034035000 RUBBER FOR SHIFT LEVERRUBBER FOR SHIFT LEVER
-
3269034032100 GEAR LEVERGEAR LEVER
-
3360734031000 GEAR LEVERGEAR LEVER
-
3550233041500 PAIR NORDLOCK WASHER M6PAIR NORDLOCK WASHER M6
-
360024060206S HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
