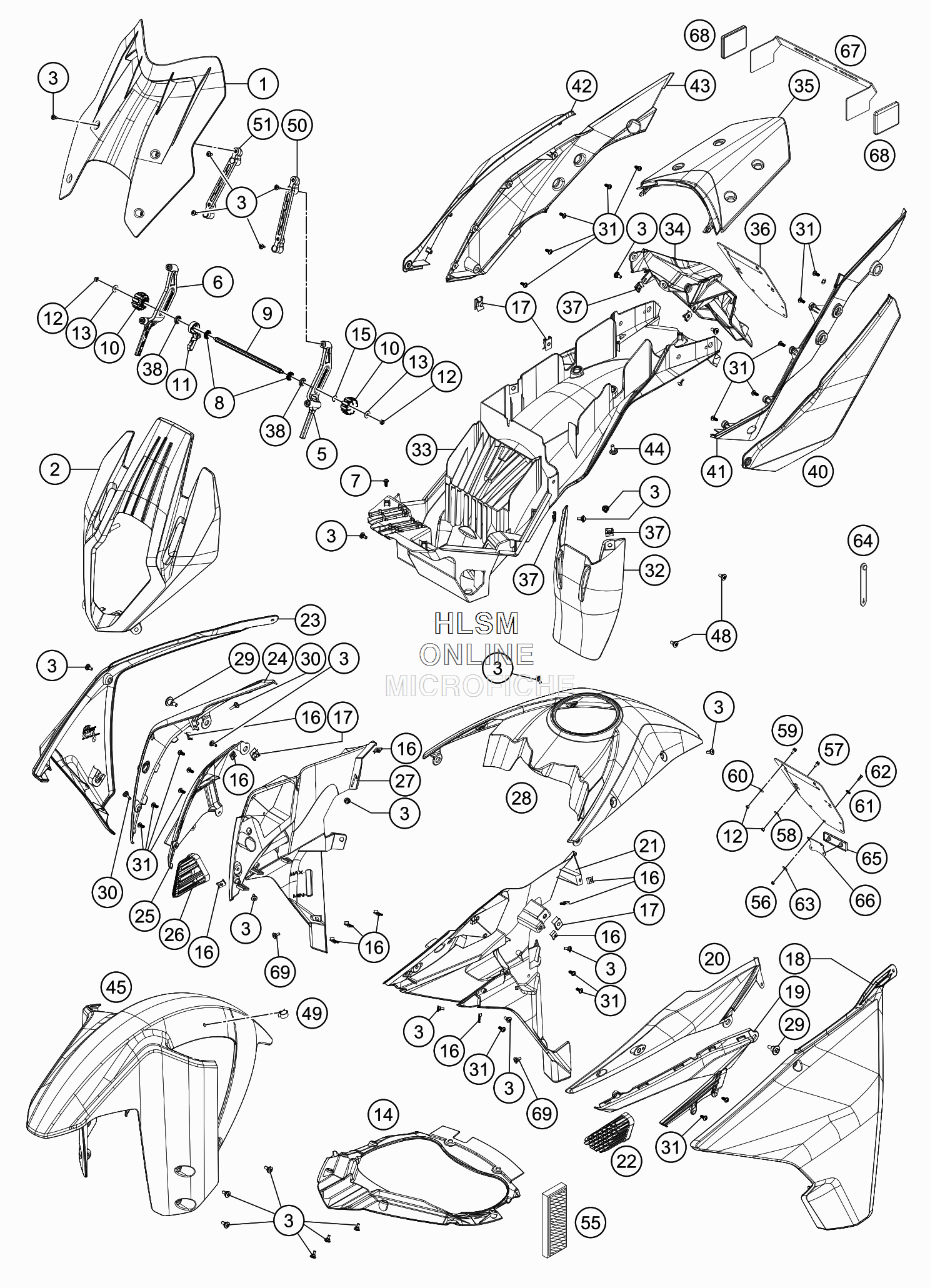

MASK- FENDERS для Ktm 1290 SUPER ADVENTURE T - 2017 года выпуска
-
№АртикулНазвание
-
160408108000 WIND SHIELD USAWIND SHIELD USA
-
260408001000 HEADLIGHT MASKHEADLIGHT MASK
-
369008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
560408008050 WINDSHIELD BRACKET L/SWINDSHIELD BRACKET L/S
-
660408008051 WINDSHIELD BRACKET R/SWINDSHIELD BRACKET R/S
-
70081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
860408008155 GEAR 16TH ADJUSTMENTGEAR 16TH ADJUSTMENT
-
960408008054 CONNECTIN SHAFT M6CONNECTIN SHAFT M6
-
1060408008053 ADJUSTING WHEELADJUSTING WHEEL
-
1160408008052 CLAMP LEVER RIGHTCLAMP LEVER RIGHT
-
120985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
130021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1460308005000 COCKPIT COVER LOWER SIDECOCKPIT COVER LOWER SIDE
-
1560408008063 WAVO SPRING YRW-0062WAVO SPRING YRW-0062
-
1669008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
1754603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1860408050000AAB FUEL TANK SPOILER LEFTFUEL TANK SPOILER LEFT
-
1960308002050KBA AIR INTAKE LEFTAIR INTAKE LEFT
-
2060308002000BGA MASK ARM LEFTMASK ARM LEFT
-
2160308025100 INNER LINING LEFTINNER LINING LEFT
-
2260308021050 COVERING GRID AIR INTAKE L/SCOVERING GRID AIR INTAKE L/S
-
2360408051000AAB FUEL TANK SPOILER RIGHTFUEL TANK SPOILER RIGHT
-
2460308003000BGA MASK ARM RIGHTMASK ARM RIGHT
-
2560308003050KBA AIR INLET RIGHTAIR INLET RIGHT
-
2660308031050 COVERING GRID AIR INTAKE RIGHTCOVERING GRID AIR INTAKE RIGHT
-
2760308026100 INNER LINING RIGHTINNER LINING RIGHT
-
2860308030000AAA TANK COVERTANK COVER
-
2960035001000 SPECIAL SCREW M6X21 WS=8SPECIAL SCREW M6X21 WS=8
-
3069008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
310081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
3260304050000 SPLASH PROTECTIONSPLASH PROTECTION
-
3360308019100 REAR END LOWER PARTREAR END LOWER PART
-
3460308015000 NUMBER PLATE SUPPORTNUMBER PLATE SUPPORT
-
356030801310033 TAIL FENDER BLACKTAIL FENDER BLACK
-
3660012081200 LICENCE FITTINGLICENCE FITTING
-
3754603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
3860408008057 WINDSHIELD HOLDER RUBBERWINDSHIELD HOLDER RUBBER
-
4060308041000AAA TAIL SPOILER L/S PEARL WHITETAIL SPOILER L/S PEARL WHITE
-
416030804300033 REAR SIDE COVER LEFTREAR SIDE COVER LEFT
-
4260308042000AAA TAIL SPOILER R/S PEARL WHITETAIL SPOILER R/S PEARL WHITE
-
436030804400033 REAR SIDE COVER RIGHTREAR SIDE COVER RIGHT
-
4483008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
4560308110100AAA FRONT FENDERFRONT FENDER
-
480025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
4958111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
5060408008060 WINDSHIELD ADAPTER L/SWINDSHIELD ADAPTER L/S
-
5160408008061 WINDSHIELD ADAPTER R/SWINDSHIELD ADAPTER R/S
-
5560012080100 SIDE REFLECTOR YELLOW "CEV"SIDE REFLECTOR YELLOW "CEV"
-
560985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
570024060156 HH COLLAR SCREW M6X15 (USA)HH COLLAR SCREW M6X15 (USA)
-
580021060003 WASHER DIN9021-A 6,4 (USA)WASHER DIN9021-A 6,4 (USA)
-
590024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
600125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
6140006006000 WASHER 6MMWASHER 6MM
-
620966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
630125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
6460011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
6558412080200 REFLECTOR RED ''CEV''REFLECTOR RED ''CEV''
-
6658412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
6762512081100 BRACKET SIDE REFLECTOR (USA)BRACKET SIDE REFLECTOR (USA)
-
6816512180100 SIDE REFLECTOR RED REAR (USA)SIDE REFLECTOR RED REAR (USA)
-
6969007125050 SCREW M5X14 ISA30 ALUSCREW M5X14 ISA30 ALU
