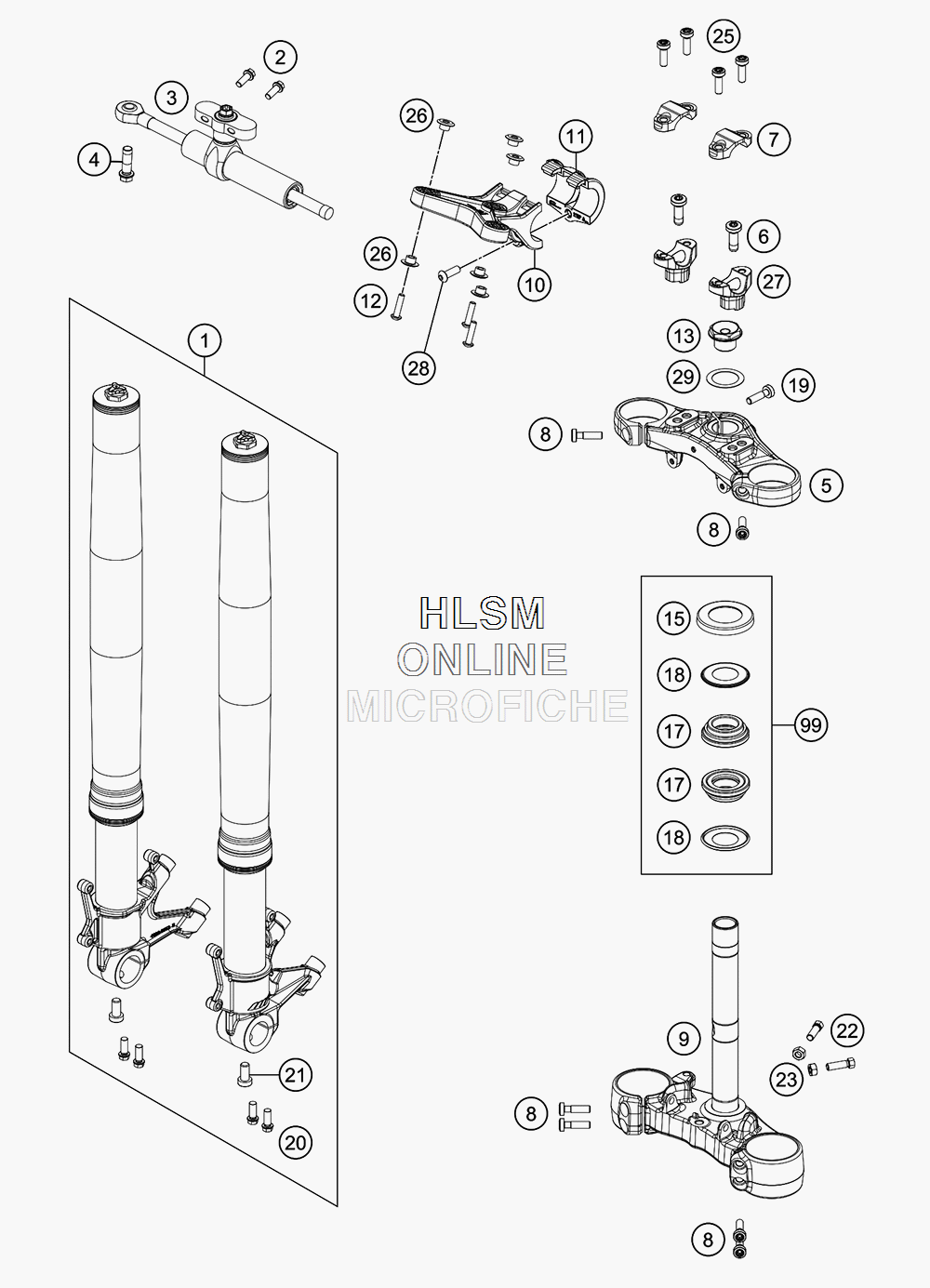

FRONT FORK - TRIPLE CLAMP для Ktm 1290 SUPER DUKE BLACK - 2017 года выпуска
-
№АртикулНазвание
-
114188Q2201 FORK WP SUPERDUKEFORK WP SUPERDUKE
-
20025060206S HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
316181N52ES STEERING DAMPER CPL. STROKE 75STEERING DAMPER CPL. STROKE 75
-
40025080256S HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
56160113402933S UPPER TRIPLE CLAMPUPPER TRIPLE CLAMP
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
76160103800030S HANDLE BAR CLAMP ARCHHANDLE BAR CLAMP ARCH
-
80035080306 AH-COLLAR SCREW M8X30 ISA45AH-COLLAR SCREW M8X30 ISA45
-
96160103202933S LOWER TRIPLE CLAMPLOWER TRIPLE CLAMP
-
1061601045100 INSTRUMENT HOLDER FRONT PARTINSTRUMENT HOLDER FRONT PART
-
1161601044000 INSTRUMENT HOLDER REAR PARTINSTRUMENT HOLDER REAR PART
-
120738050202 LENS HEAD SCREW ISO 7380-M5X20A2LENS HEAD SCREW ISO 7380-M5X20A2
-
136900103600001 STEERING HEAD SCREWSTEERING HEAD SCREW
-
1569001086100 PROT. RING STEER. HEAD BEARINGPROT. RING STEER. HEAD BEARING
-
1769001081100 BALL CAGE STEERING HEAD BEARINGBALL CAGE STEERING HEAD BEARING
-
1869001084000 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
190035080306S AH-COLLAR SCREW M8X30 ISA45AH-COLLAR SCREW M8X30 ISA45
-
200025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
2100501020S1 AH SCREW M10X20 SETAH SCREW M10X20 SET
-
2259001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
230934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
250035080256 AH-COLLAR SCREW M8X25 ISA45AH-COLLAR SCREW M8X25 ISA45
-
276140103903733S HANDLE BAR SUPPORTHANDLE BAR SUPPORT
-
280738060181 COU.SUNK SCR. AH ISO7380 M6X18COU.SUNK SCR. AH ISO7380 M6X18
-
290988253505 THRUST WASH DIN0988-25X35X0,5THRUST WASH DIN0988-25X35X0,5
-
9969001181010 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
