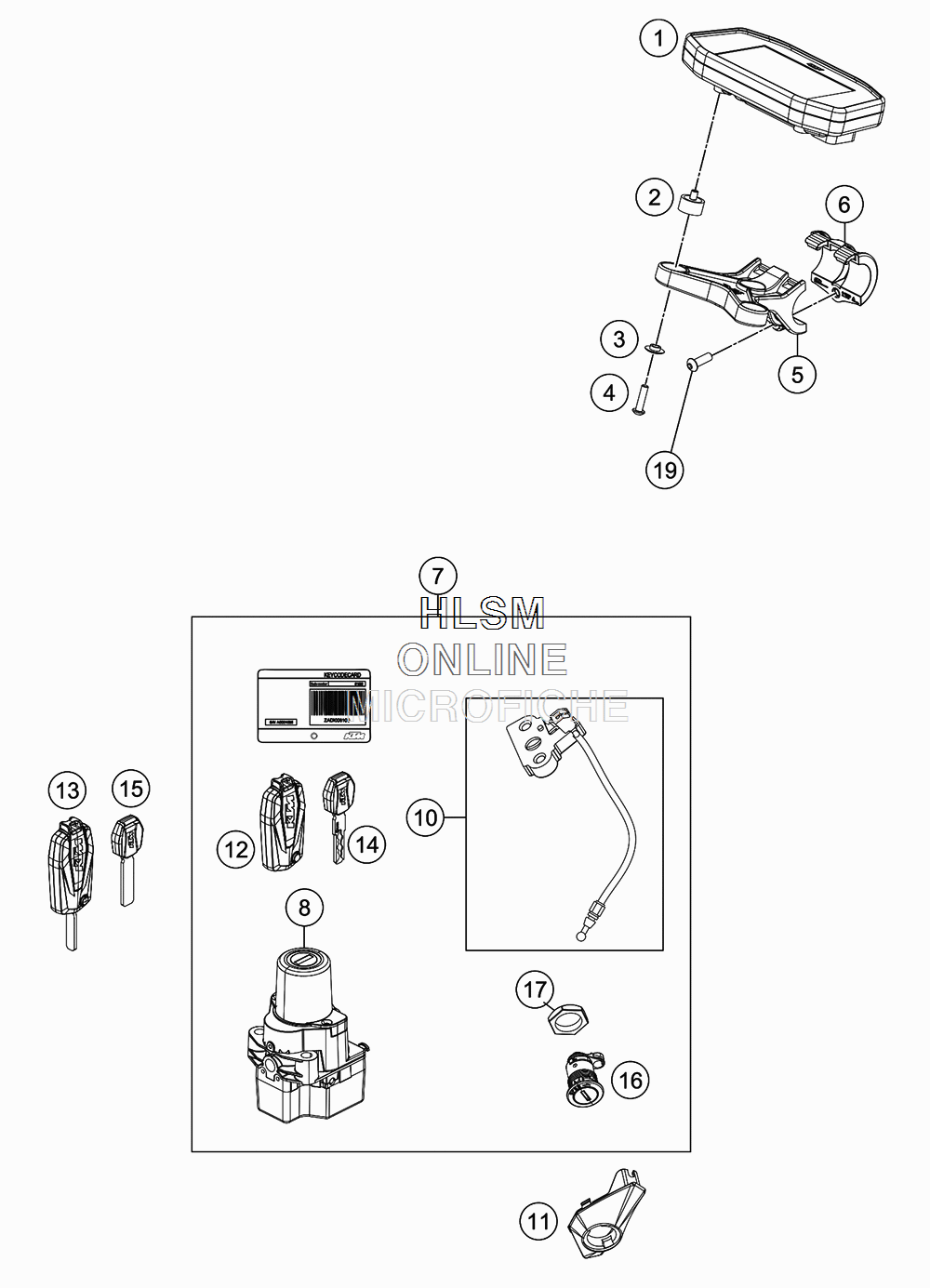

INSTRUMENTS / LOCK SYSTEM для Ktm 1290 SUPER DUKE R WHITE - 2017 года выпуска
-
№АртикулНазвание
-
161614069000 DASHBOARDDASHBOARD
-
261614069010 ABSORBER SPEEDOMETERABSORBER SPEEDOMETER
-
361614069020 TACHOMETER SUPPORT BUSHTACHOMETER SUPPORT BUSH
-
40738050082 FLAT HEAD SCREW ISO7380 M5X8 A2 TX25FLAT HEAD SCREW ISO7380 M5X8 A2 TX25
-
561601045100 INSTRUMENT HOLDER FRONT PARTINSTRUMENT HOLDER FRONT PART
-
661601044000 INSTRUMENT HOLDER REAR PARTINSTRUMENT HOLDER REAR PART
-
761611066044 LOCKSET KEYLESS CPL. 868 MHZLOCKSET KEYLESS CPL. 868 MHZ
-
861611066000 LOCK SETLOCK SET
-
1061307050000 SEAT LOCK MECHANISM CPL.SEAT LOCK MECHANISM CPL.
-
1161307055000 SOPPORT SEAT LOCKSOPPORT SEAT LOCK
-
1260711067000 RACE ON KEY 868 MHZRACE ON KEY 868 MHZ
-
1360711067010 BLANK RACE-ON KEY 868 MHZBLANK RACE-ON KEY 868 MHZ
-
1460411067000 IGNITION KEY KTMIGNITION KEY KTM
-
1560411067010 BLANK KTM IGNITION KEYBLANK KTM IGNITION KEY
-
1661307050020 LOCK CYLINDER SEAT LOCKLOCK CYLINDER SEAT LOCK
-
1769007050050 NUT SEAT LOCK M22X1,5NUT SEAT LOCK M22X1,5
-
190738060181 COU.SUNK SCR. AH ISO7380 M6X18COU.SUNK SCR. AH ISO7380 M6X18
