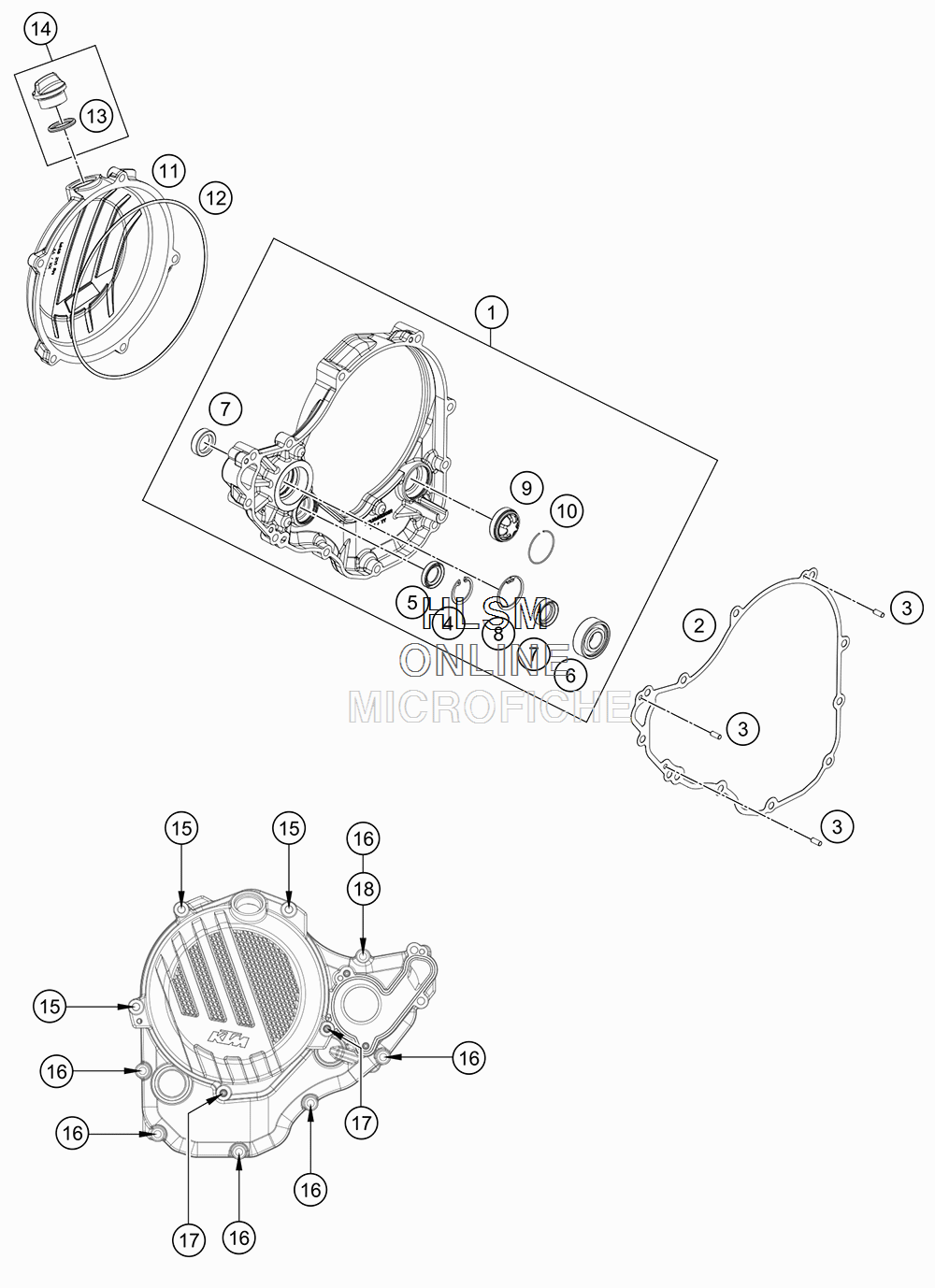

CLUTCH COVER для Ktm 250 SX-F - 2017 года выпуска
-
№АртикулНазвание
-
179230001044 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
279230025000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
30402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
40472024120 CIRCLIP DIN0472-24X1.2CIRCLIP DIN0472-24X1.2
-
50760142450 SHAFT SEAL RING 14X24X5 VITONSHAFT SEAL RING 14X24X5 VITON
-
60625062022 BALL BEARING 6202 C0 2BALL BEARING 6202 C0 2
-
707601530451 SHAFT SEAL RING 15X30X4.5 BAUDSHAFT SEAL RING 15X30X4.5 BAUD
-
80472300120 CIRCLIP 30X1,2CIRCLIP 30X1,2
-
959030019200 OIL SIGHT GLASSOIL SIGHT GLASS
-
1061030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
117923002600015 CLUTCH OUTSIDE COVERCLUTCH OUTSIDE COVER
-
1279230027000 CLUTCH COVER GASKET OUTSIDECLUTCH COVER GASKET OUTSIDE
-
130770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
1479430020033 OIL FILLER CAP M24X3 WITH O-RINGOIL FILLER CAP M24X3 WITH O-RING
-
150025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
160025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
170025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
180603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
