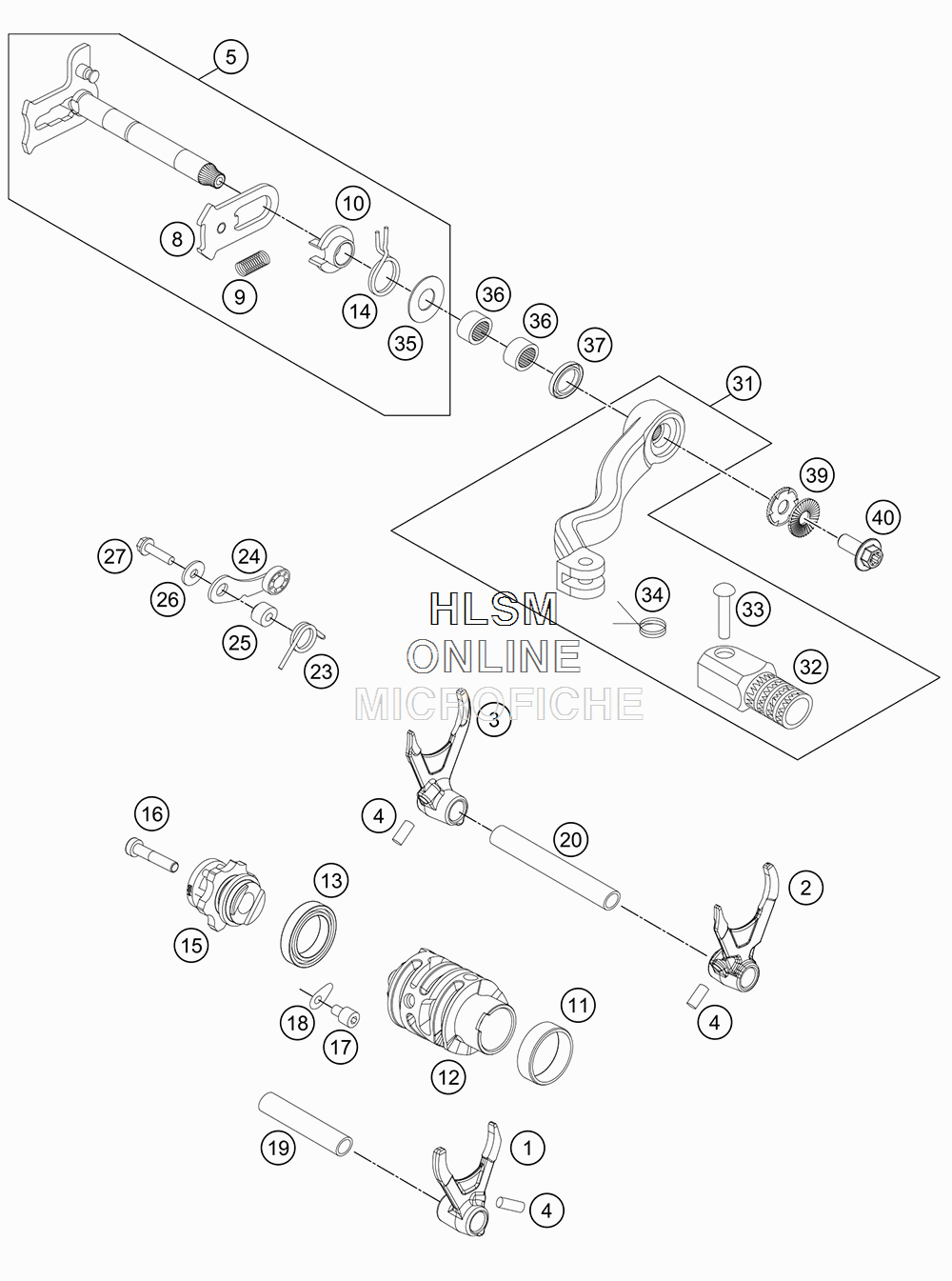

SHIFTING MECHANISM для Ktm 300 EXC-SD - 2017 года выпуска
-
№АртикулНазвание
-
179234101000 SHIFT FORK 5.-6. GEARSHIFT FORK 5.-6. GEAR
-
279234102000 SHIFT FORK 2.-4. GEARSHIFT FORK 2.-4. GEAR
-
379234103000 SHIFT FORK 1.-3. GEARSHIFT FORK 1.-3. GEAR
-
40402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
555434005133 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
861234008044 SLIDING PLATESLIDING PLATE
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1054634020000 SPRING GUIDESPRING GUIDE
-
1179234012010 FRICTION BEARING CONTROLLERFRICTION BEARING CONTROLLER
-
1279234112000 SHIFT ROLLERSHIFT ROLLER
-
130625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
1454834014000 RETURN SPRINGRETURN SPRING
-
1555434015000 GEARSHIFT CPL.GEARSHIFT CPL.
-
160984060302 AH SCREW DIN6912 M 6X30AH SCREW DIN6912 M 6X30
-
170019050106S INT. TORX FLAT HEAD M5X10 10.9INT. TORX FLAT HEAD M5X10 10.9
-
1875030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
1954834019000 SHIFT. RAIL MAIN SHAFTSHIFT. RAIL MAIN SHAFT
-
2077034019000 SHIFTING MAIN L=93MMSHIFTING MAIN L=93MM
-
2355434023100 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
2455434024000 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
2554634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
260349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
270025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
3155434031000 SHIFTING LEVER CPL.SHIFTING LEVER CPL.
-
3254634131000 STEP PLATE FOR SHIFT LEVER 250STEP PLATE FOR SHIFT LEVER 250
-
3354634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
3454634032100 SHIFTING LEVER SPRING 250SHIFTING LEVER SPRING 250
-
3554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
3654632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
370760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3950233041500 PAIR NORDLOCK WASHER M6PAIR NORDLOCK WASHER M6
-
400024060156S HH COLLAR SCREW M6X15 TORX30HH COLLAR SCREW M6X15 TORX30
