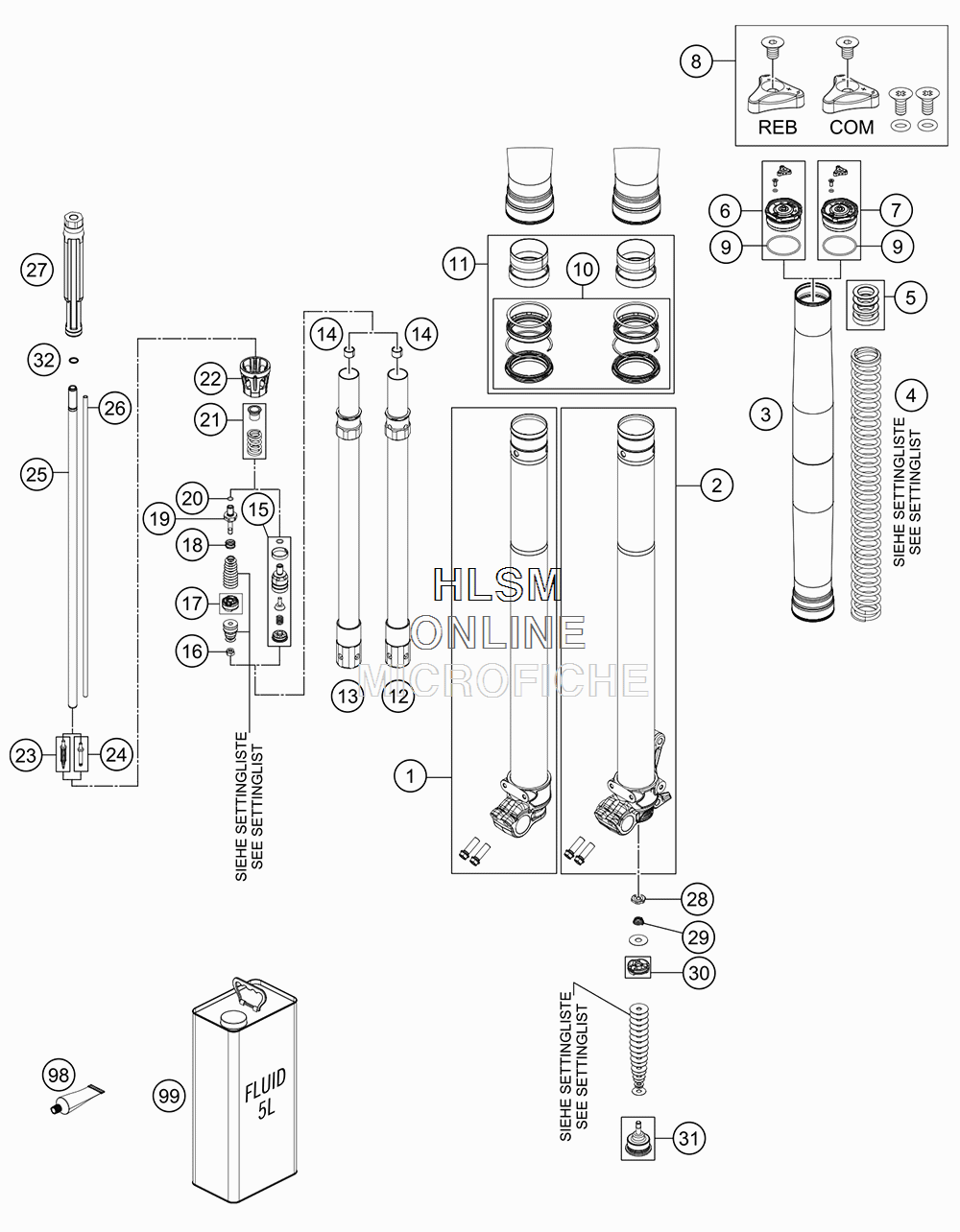

FRONT FORK DISASSEMBLED для Ktm 300 XC-W - 2017 года выпуска
-
№АртикулНазвание
-
148601633S1 AXLE CLAMP OC R/S CPL. & TUBEAXLE CLAMP OC R/S CPL. & TUBE
-
248601632S1 AXLE CLAMP OC L/S CPL. & TUBEAXLE CLAMP OC L/S CPL. & TUBE
-
348600736 OUTER TUBE L577 D54/60MM 2LOUTER TUBE L577 D54/60MM 2L
-
491410099S SPRING 3,8N/MM SET D=4,9MMSPRING 3,8N/MM SET D=4,9MM
-
491410100S SPRING 4,0N/MM SET D=4,9MMSPRING 4,0N/MM SET D=4,9MM
-
491410101S SPRING 4,2N/MM SET D=4,9MMSPRING 4,2N/MM SET D=4,9MM
-
491410102S SPRING 4,4N/MM SET D=4,9MMSPRING 4,4N/MM SET D=4,9MM
-
491410103S SPRING 4,6N/MM SET D=4,9MMSPRING 4,6N/MM SET D=4,9MM
-
491410104S SPRING 4,8N/MM SET D=4,9MMSPRING 4,8N/MM SET D=4,9MM
-
5R14026 SPRING SPACER KITSPRING SPACER KIT
-
648601631S SCREW CAP M51X 1,5 REB. CPL.SCREW CAP M51X 1,5 REB. CPL.
-
748601630S SCREW CAP M51X1,5 COMP . CPL.SCREW CAP M51X1,5 COMP . CPL.
-
8R14033 SCREW CAP SMALL PART KITSCREW CAP SMALL PART KIT
-
948600048 O-RING NBR 46 X 2O-RING NBR 46 X 2
-
10R14046 SEALING KITSEALING KIT
-
11R14063 FORK REP. KIT 48MM OFFROADFORK REP. KIT 48MM OFFROAD
-
1248600763S1 PIPE & THREADED SLEEVE WITH HOLEPIPE & THREADED SLEEVE WITH HOLE
-
1348600763S2 PIPE & THREADED SLEEVEPIPE & THREADED SLEEVE
-
1448600430 DU BUSH FOR PISTON RODDU BUSH FOR PISTON ROD
-
1548601554S PISTON ROD REBOUND CPL.PISTON ROD REBOUND CPL.
-
1640540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
1748600575S PISTON REBOUND + PISTON RINGPISTON REBOUND + PISTON RING
-
1848600382 SHUTTLE VALVE SPRING C=0,4SHUTTLE VALVE SPRING C=0,4
-
1948600576 PISTON ROD REBOUNDPISTON ROD REBOUND
-
2048600299 O-RING 6X1,2 NBRO-RING 6X1,2 NBR
-
2148600578S SPRING REBOUND + SPRING GUIDESPRING REBOUND + SPRING GUIDE
-
2248601298 SPRING SUPPORTSPRING SUPPORT
-
2348600277S ADJUSTING NEEDLE CPL.ADJUSTING NEEDLE CPL.
-
2448601558S COMPRESSI ON ADJ. NEEDLE CPL.COMPRESSI ON ADJ. NEEDLE CPL.
-
2548600568 PISTON ROD D=12 L=554 ALUPISTON ROD D=12 L=554 ALU
-
2648601786 ADJUSTING PIPEADJUSTING PIPE
-
2748601556S HYDR. STOP L200 Ш31,9 CPL.HYDR. STOP L200 Ш31,9 CPL.
-
2848600163 CHECK VALVE NUT M6X0,5 D=2CHECK VALVE NUT M6X0,5 D=2
-
2948600202 SPRING CHECK VALVE D=0,7SPRING CHECK VALVE D=0,7
-
3048600047S PISTON + O-RINGPISTON + O-RING
-
3148601553S SCREW CAP OC SPLIT CPL.SCREW CAP OC SPLIT CPL.
-
3204500003 O-RING 11X2,5 NBR 70 SH PTFEO-RING 11X2,5 NBR 70 SH PTFE
-
98T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
-
9948601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
