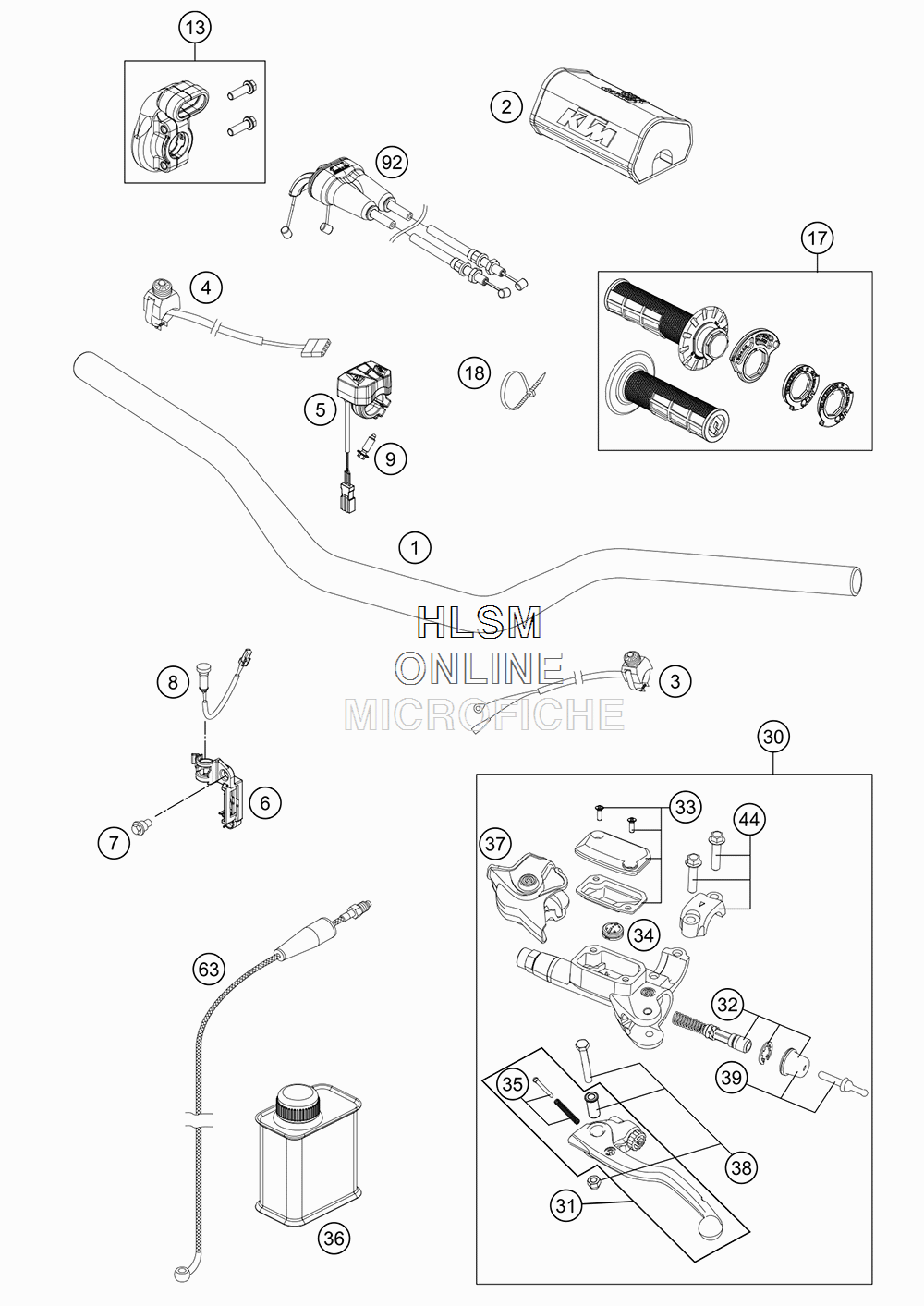

HANDLEBAR CONTROLS для Ktm 350 SX-F - 2017 года выпуска
-
№АртикулНазвание
-
17900200100030 HANDLEBAR D=28MMHANDLEBAR D=28MM
-
279002002000 BAR PADBAR PAD
-
350311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
478111074000 STARTER BUTTON GREYSTARTER BUTTON GREY
-
579039074000 MAP SWITCHMAP SWITCH
-
677214098000 HOLDER INDICATOR LIGHT SXHOLDER INDICATOR LIGHT SX
-
759001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
881214083000 INDICATOR LIGHT LED YELLOW FIINDICATOR LIGHT LED YELLOW FI
-
90017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
1379002010025 THROTTLE CONTROL CASING CPL.THROTTLE CONTROL CASING CPL.
-
1779002021100 GRIP SETGRIP SET
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1844011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
3079202030044 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
3154802031000 CLUTCH LEVER CPL. BREMBOCLUTCH LEVER CPL. BREMBO
-
3279202032044 REP. KIT PISTON 9MMREP. KIT PISTON 9MM
-
335480200310030 COVER HYD. CLUTCH CPL.COVER HYD. CLUTCH CPL.
-
3454802051000 VALVEVALVE
-
3554802052000 BOLT CPL.BOLT CPL.
-
3600062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
-
3754802037000 PROTECTION CAPPROTECTION CAP
-
3854802038100 LEVER SCREW CPL.LEVER SCREW CPL.
-
3954802046000 PUSH ROD CPL.PUSH ROD CPL.
-
4454802005100 CLAMP CPL.CLAMP CPL.
-
6379232063000 CLUTCH PIPECLUTCH PIPE
-
9279002091000 THROTTLE CABLE CPL. 4STROKETHROTTLE CABLE CPL. 4STROKE
