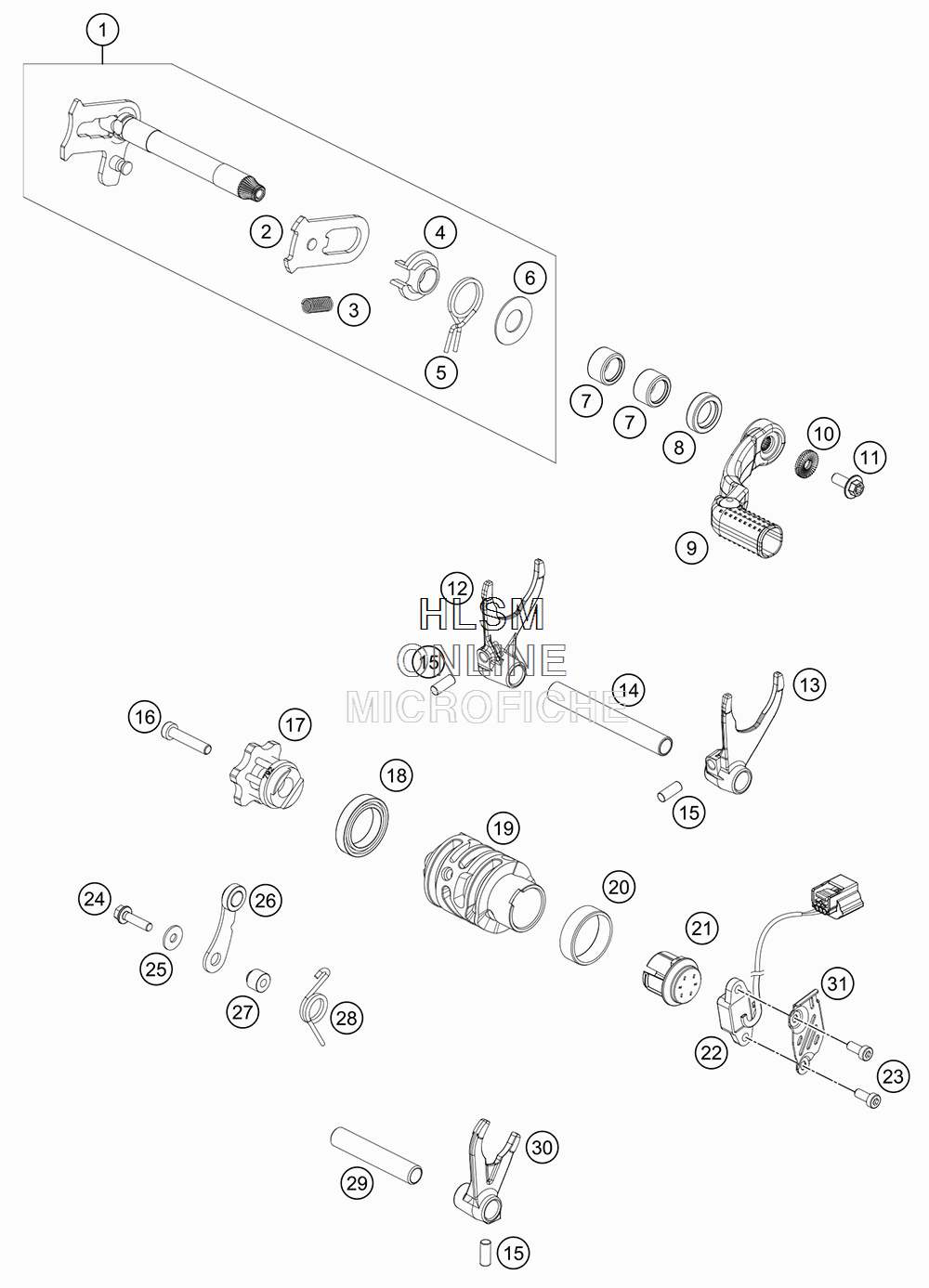

SHIFTING MECHANISM для Ktm 350 XC-F - 2017 года выпуска
-
№АртикулНазвание
-
179234005133 SHIFT SHAFT CPL.SHIFT SHAFT CPL.
-
279234008144 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
356534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
454634020000 SPRING GUIDESPRING GUIDE
-
554834014000 RETURN SPRINGRETURN SPRING
-
654634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
754632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
80760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
979234031100 SHIFT LEVER CPL.SHIFT LEVER CPL.
-
1050233041500 PAIR NORDLOCK WASHER M6PAIR NORDLOCK WASHER M6
-
110024060156S HH COLLAR SCREW M6X15 TORX30HH COLLAR SCREW M6X15 TORX30
-
1279234103000 SHIFT FORK 1.-3. GEARSHIFT FORK 1.-3. GEAR
-
1379234102000 SHIFT FORK 2.-4. GEARSHIFT FORK 2.-4. GEAR
-
1477034019000 SHIFTING MAIN L=93MMSHIFTING MAIN L=93MM
-
150402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
160984060302 AH SCREW DIN6912 M 6X30AH SCREW DIN6912 M 6X30
-
1779234015000 SHIFT DRUM LOCATING CPL.SHIFT DRUM LOCATING CPL.
-
180625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
1979234112000 SHIFT ROLLERSHIFT ROLLER
-
2079234012010 FRICTION BEARING CONTROLLERFRICTION BEARING CONTROLLER
-
2179234012020 MAGNET HOLDER CPL.MAGNET HOLDER CPL.
-
2279211023000 GEAR SENSORGEAR SENSOR
-
230984050143S CYL. SCREW DIN6912 M5X14 8.8CYL. SCREW DIN6912 M5X14 8.8
-
240025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
250021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
2679234024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
2754634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
2854834023000 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
2954834019000 SHIFT. RAIL MAIN SHAFT 250/300SHIFT. RAIL MAIN SHAFT 250/300
-
3079234101000 SHIFT FORK 5.-6. GEARSHIFT FORK 5.-6. GEAR
-
3179211024000 GUARD PLATE MOTION SENSORGUARD PLATE MOTION SENSOR
