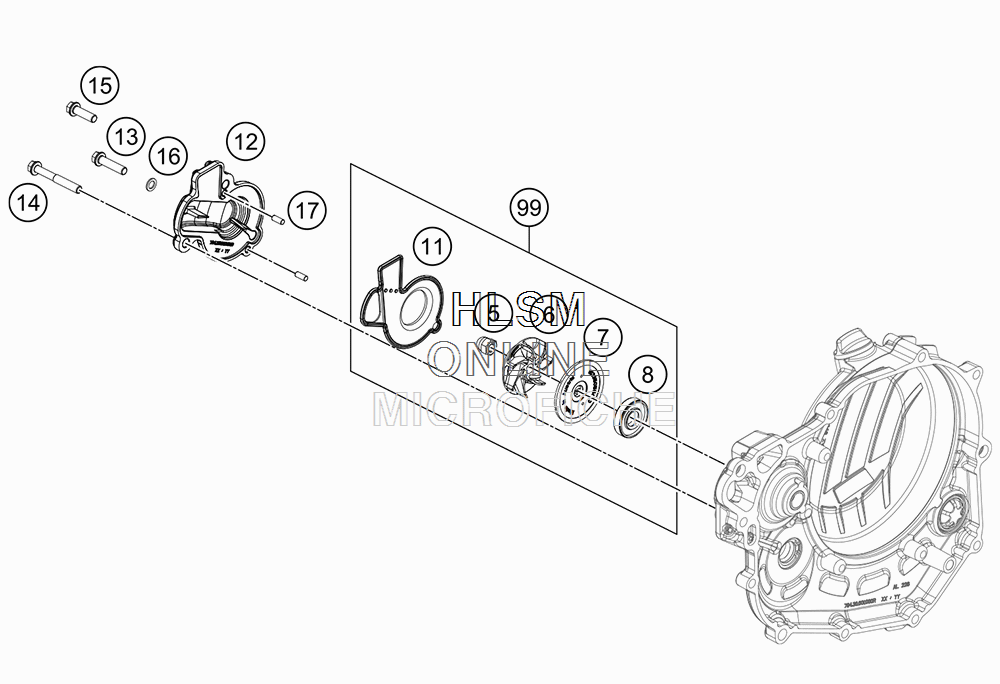

WATER PUMP для Ktm 450 SX-F - 2017 года выпуска
-
№АртикулНазвание
-
561230045000 CAP NUT M6 STAINLESS STEELCAP NUT M6 STAINLESS STEEL
-
681235055020 WATER PUMP ROTORWATER PUMP ROTOR
-
781235055110 DISC WATER PUMPDISC WATER PUMP
-
80760123073 SHAFT SEAL RING 12X30X7 PTFESHAFT SEAL RING 12X30X7 PTFE
-
1179435053000 SEAL WITH CARRIER PLATESEAL WITH CARRIER PLATE
-
1279435052000 WATER PUMP COVERWATER PUMP COVER
-
130025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
140025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
150025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
160603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
170402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
9979435055015 WATER PUMP REP. KITWATER PUMP REP. KIT
