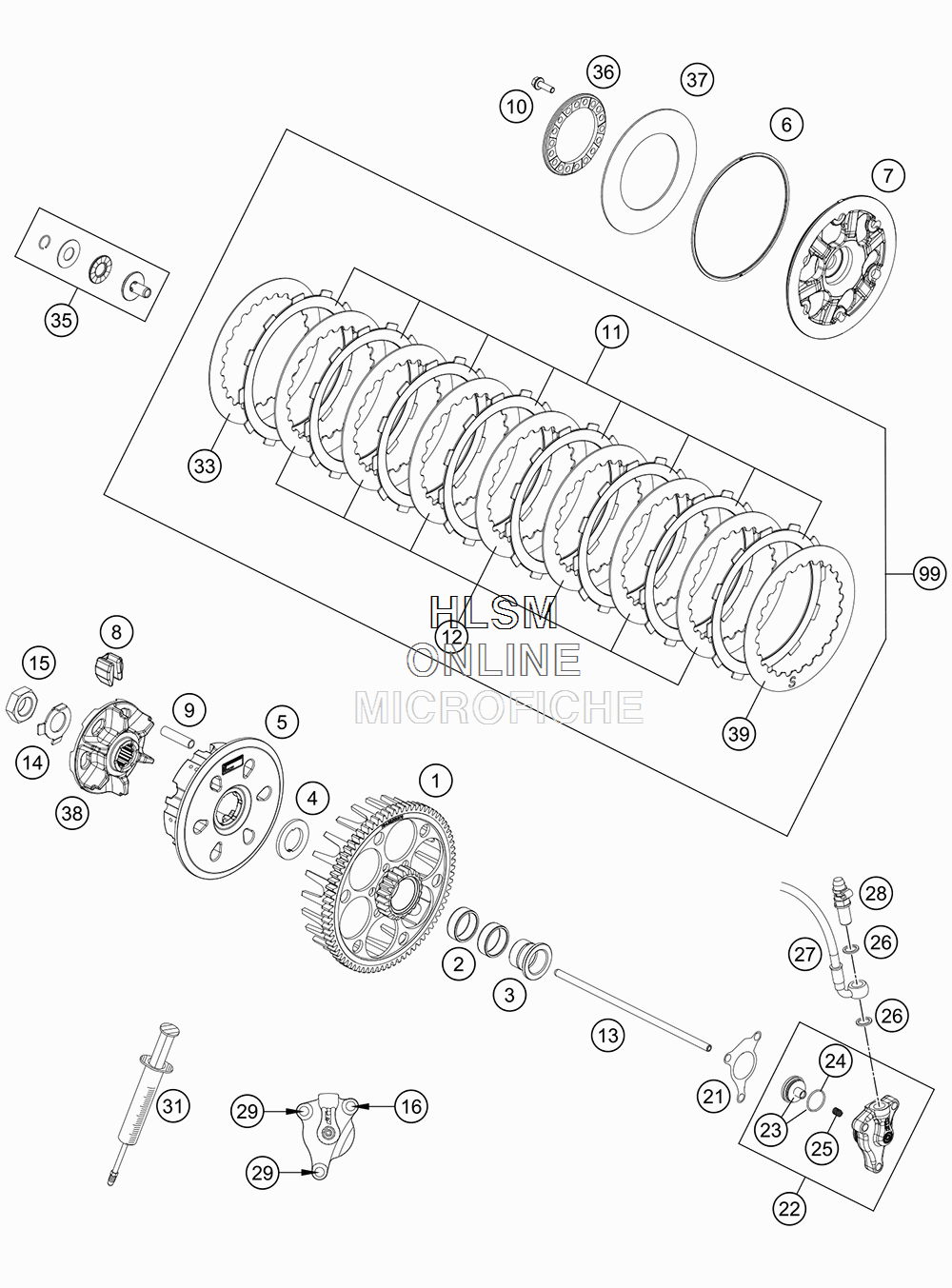

CLUTCH для Ktm 450 XC-F - 2017 года выпуска
-
№АртикулНазвание
-
179432001076 CLUTCH CAGECLUTCH CAGE
-
20405252910 NEEDLE BEAR K 25X29X10NEEDLE BEAR K 25X29X10
-
378132015100 COLLARSLEEVECOLLARSLEEVE
-
478932009000 WASHER 22 X 36,5 X 3WASHER 22 X 36,5 X 3
-
578132002300 CLUTCH HUBCLUTCH HUB
-
678132013000 WASHER 112X118X1.5WASHER 112X118X1.5
-
779432003000 CLUTCH PRESSURE CAPCLUTCH PRESSURE CAP
-
878132025100 DAMPING RUBBERDAMPING RUBBER
-
977232004000 DRIVING SLEEVE D=7,95 L=38DRIVING SLEEVE D=7,95 L=38
-
100025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
1159032011100 LINING DISC 2MMLINING DISC 2MM
-
1259032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
1379432054000 PUSH RODPUSH ROD
-
1478132018000 TAB WASHERTAB WASHER
-
150936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
160025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
2159032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
2254832061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
2354832066000 PISTON CPL.PISTON CPL.
-
2454832067000 O-RINGO-RING
-
2554832069000 PRESSURE SPRINGPRESSURE SPRING
-
260603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2778132063000 CLUTCH PIPECLUTCH PIPE
-
2862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
290025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
3150329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
3359032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
3578132057144 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
3678132006100 SPRING RINGSPRING RING
-
3778932005000 BELLEV. SPR. 71X115X1,6IO=4.74BELLEV. SPR. 71X115X1,6IO=4.74
-
3878132002111 HUBHUB
-
3978932010000 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
9978932010033 CLUTCH DISC KITCLUTCH DISC KIT
