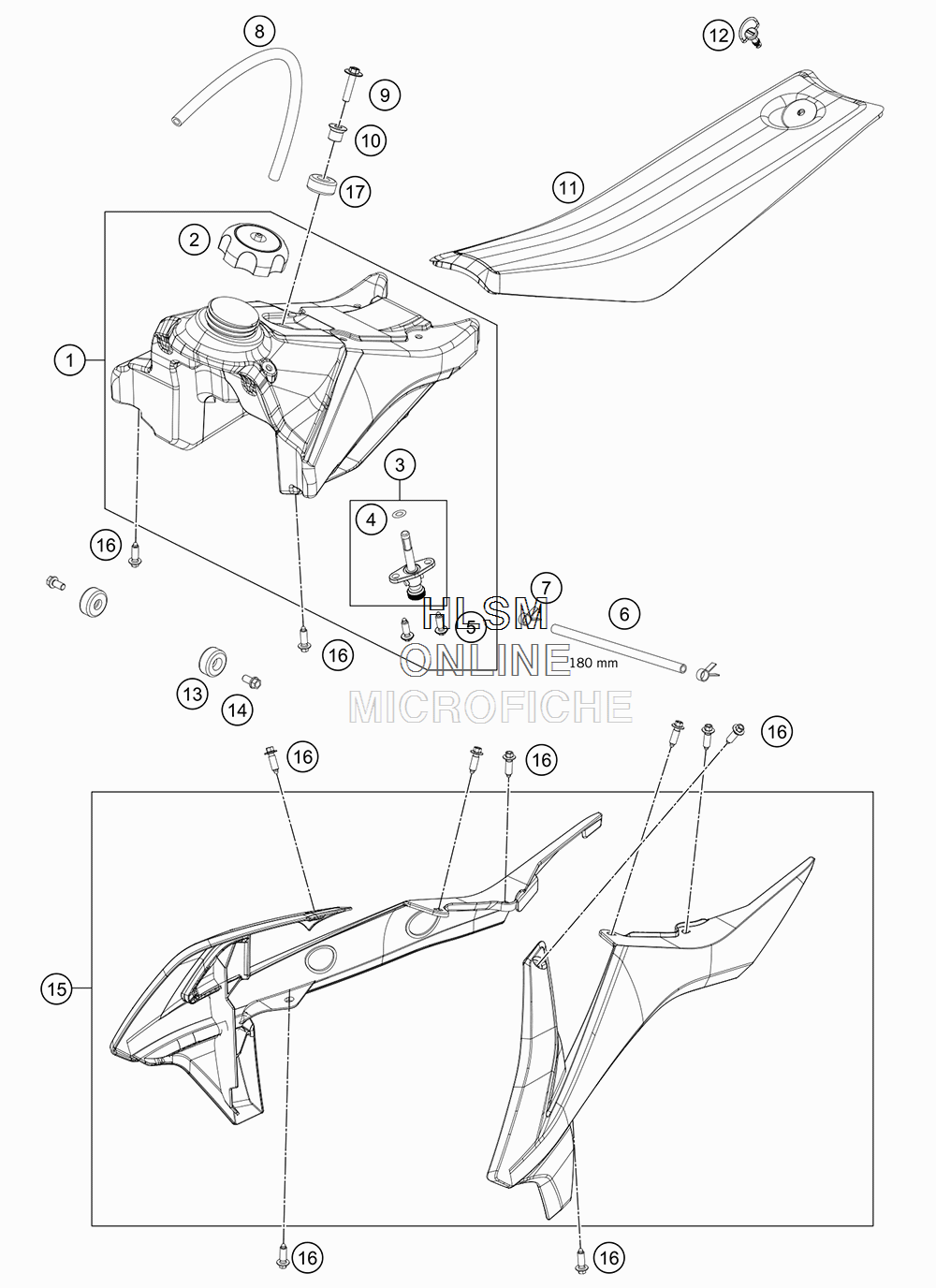

TANK SEAT COVERS для Ktm 50 SX MINI - 2017 года выпуска
-
№АртикулНазвание
-
14530701313330 FUEL T ANK CPL.FUEL T ANK CPL.
-
249007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
358507003200 FUEL COCK CPL.FUEL COCK CPL.
-
40770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
50017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
658307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
745031005000 YDNAC-CLAMP FUEL HOSE (8MM)YDNAC-CLAMP FUEL HOSE (8MM)
-
878007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
90024060273 COLLAR SCREW M6X27COLLAR SCREW M6X27
-
1077307026000 TANK BUSHINGTANK BUSHING
-
1145307040000 SEATSEAT
-
1245007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
1350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
140025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
154530805400028A SPOILERSET 50SX/MINISPOILERSET 50SX/MINI
-
160017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
1750307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
