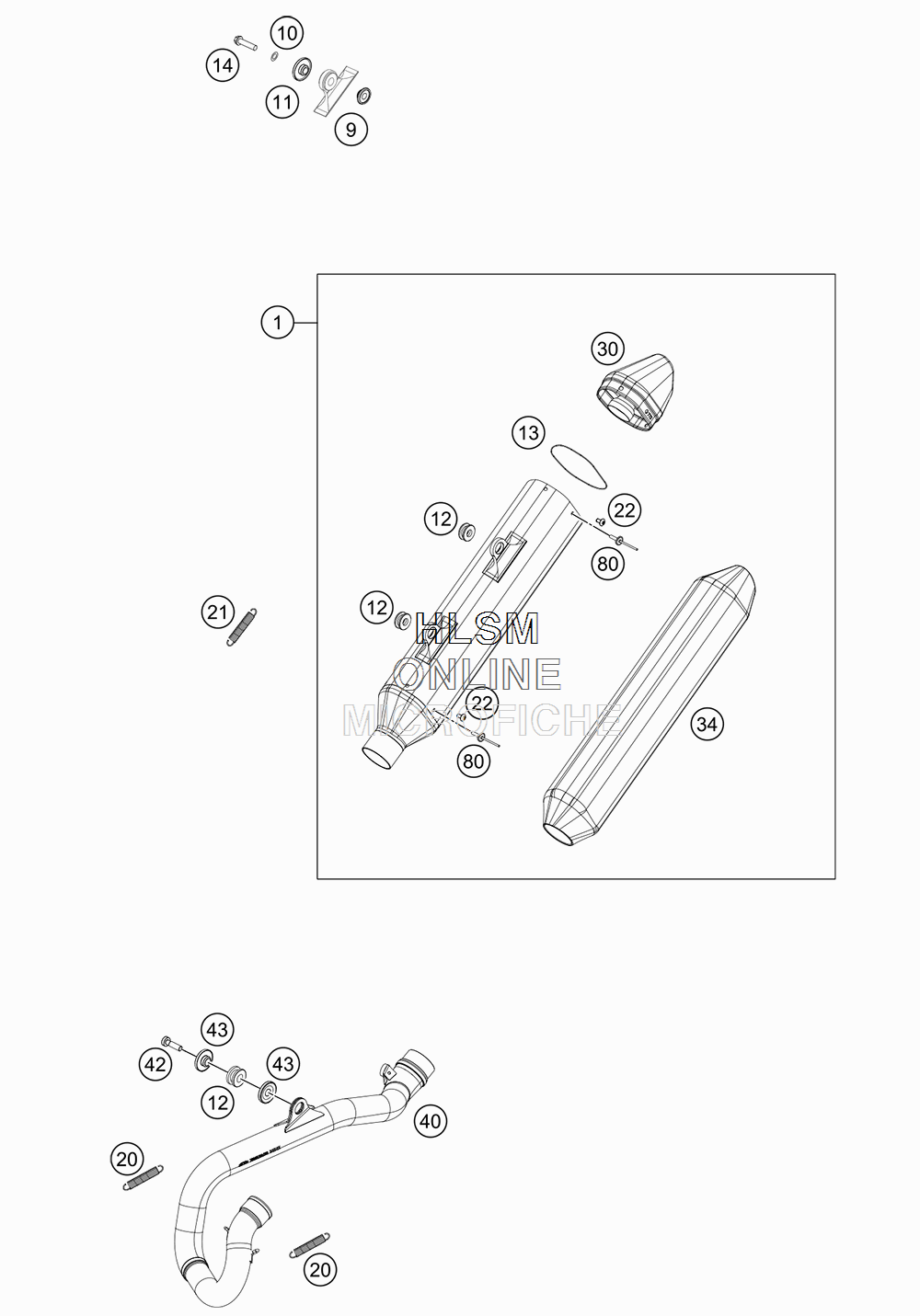

EXHAUST SYSTEM для Ktm 500 EXC-F - 2017 года выпуска
-
№АртикулНазвание
-
179605082000 SILENCER USASILENCER USA
-
977205069000 BUSHING 7.5X12X20X8.2BUSHING 7.5X12X20X8.2
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1177205169000 BUSHING 7.5X12X28X8.3BUSHING 7.5X12X28X8.3
-
1277205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
130770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
140025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
2150305116000 TEN.SPRING L=75MM EY.MOVEABLETEN.SPRING L=75MM EY.MOVEABLE
-
2278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
3079605082060 SILENCER CAPSILENCER CAP
-
3479005078640 ROCK WOOL SHAPED PARTROCK WOOL SHAPED PART
-
4079605109000 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
420035080306S AH-COLLAR SCREW M8X30 ISA45AH-COLLAR SCREW M8X30 ISA45
-
4379005069000 BUSHING 8,5X12X28X8,3BUSHING 8,5X12X28X8,3
-
800011401200 DUMMY RIVET 4,0X12 ALUDUMMY RIVET 4,0X12 ALU
