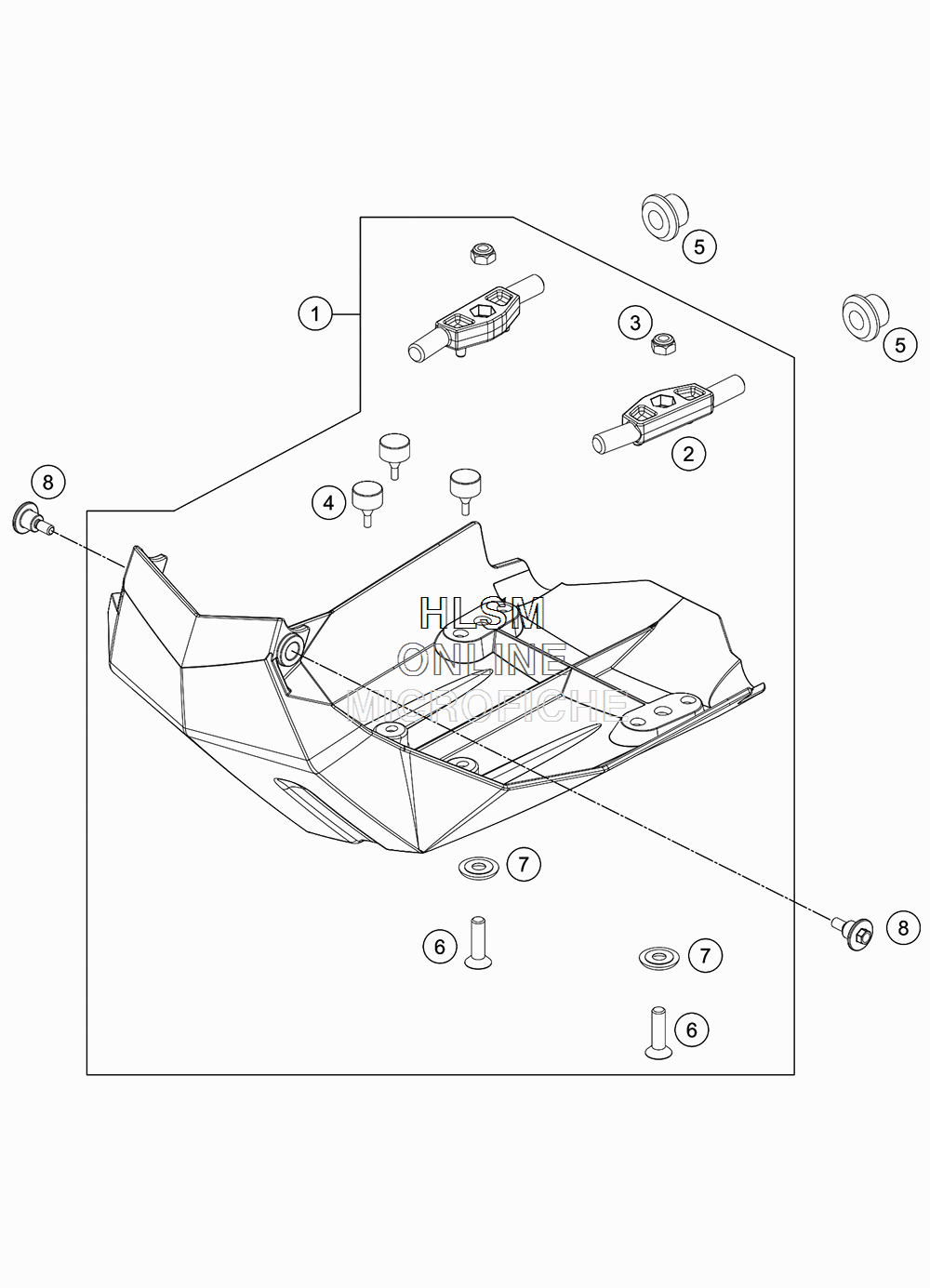

ENGINE GUARD для Ktm 690 ENDURO R - 2017 года выпуска
-
№АртикулНазвание
-
176503090044 UNDERRIDE PROTECTION CPL.UNDERRIDE PROTECTION CPL.
-
276503091000 CARTER SUPORTERCARTER SUPORTER
-
30985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
475007046010 SEAT RUBBER 10 MMSEAT RUBBER 10 MM
-
556401040000 RUBBER BUSHINGRUBBER BUSHING
-
60991080303 FLAT HEAD SCREW DIN7991-M 8X30FLAT HEAD SCREW DIN7991-M 8X30
-
758303061000 SPECIAL WASHER ALU 8 X 24 MMSPECIAL WASHER ALU 8 X 24 MM
-
860035001000 SPECIAL SCREW M6X21 WS=8SPECIAL SCREW M6X21 WS=8
