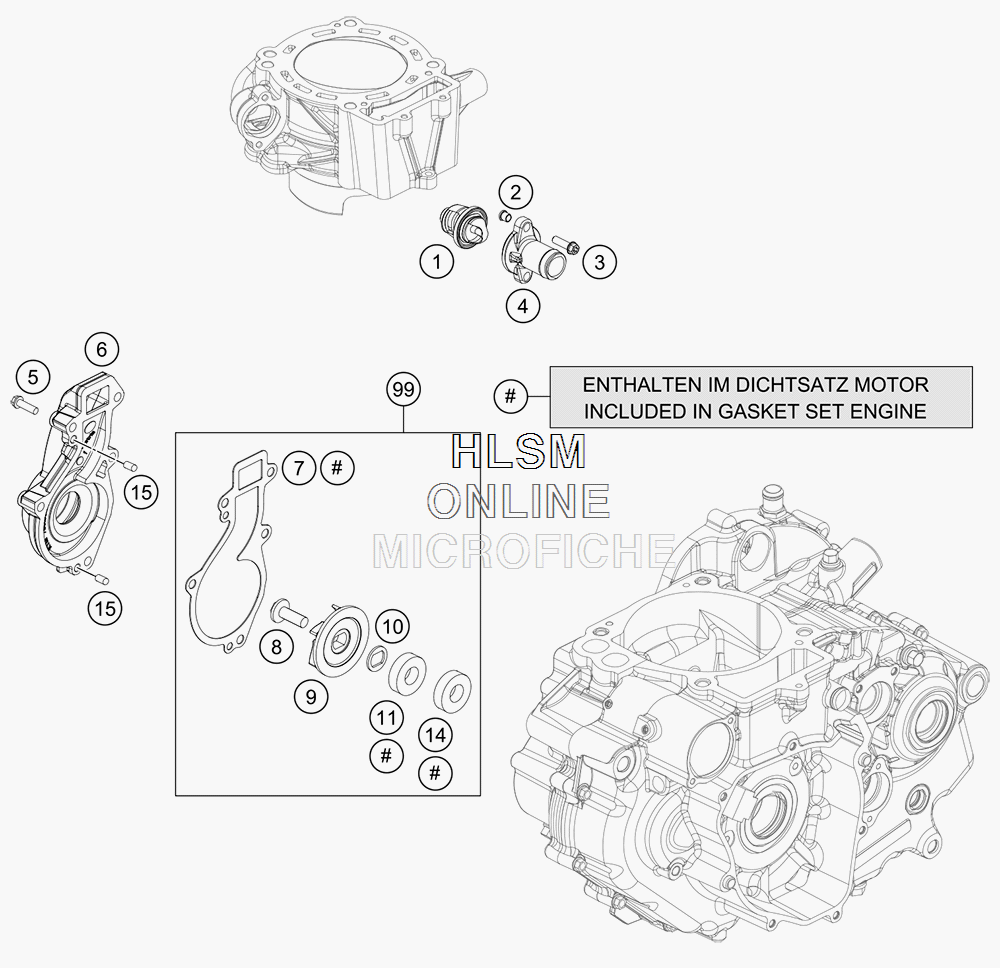

WATER PUMP для Ktm 690 SMCR - 2017 года выпуска
-
№АртикулНазвание
-
175035017000 THERMOSTATTHERMOSTAT
-
260040027050 SUPPORTING SLEEVESUPPORTING SLEEVE
-
30025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
475035016000 THERMOSTATCOVERTHERMOSTATCOVER
-
50025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
67503505210033 WATERPUMP COVERWATERPUMP COVER
-
775035053000 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
-
80024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
975035055000 WATER PUMP ROTORWATER PUMP ROTOR
-
1060035055150 FORM WASHER 16X1 NIROFORM WASHER 16X1 NIRO
-
110760123071 SHAFT SEAL RING. 12X30X7 VITONSHAFT SEAL RING. 12X30X7 VITON
-
140760123073 SHAFT SEAL RING 12X30X7 PTFESHAFT SEAL RING 12X30X7 PTFE
-
150474050100 GROOVED PIN DIN1474 5X10GROOVED PIN DIN1474 5X10
-
9975035055010 WATER PUMP REP. KITWATER PUMP REP. KIT
