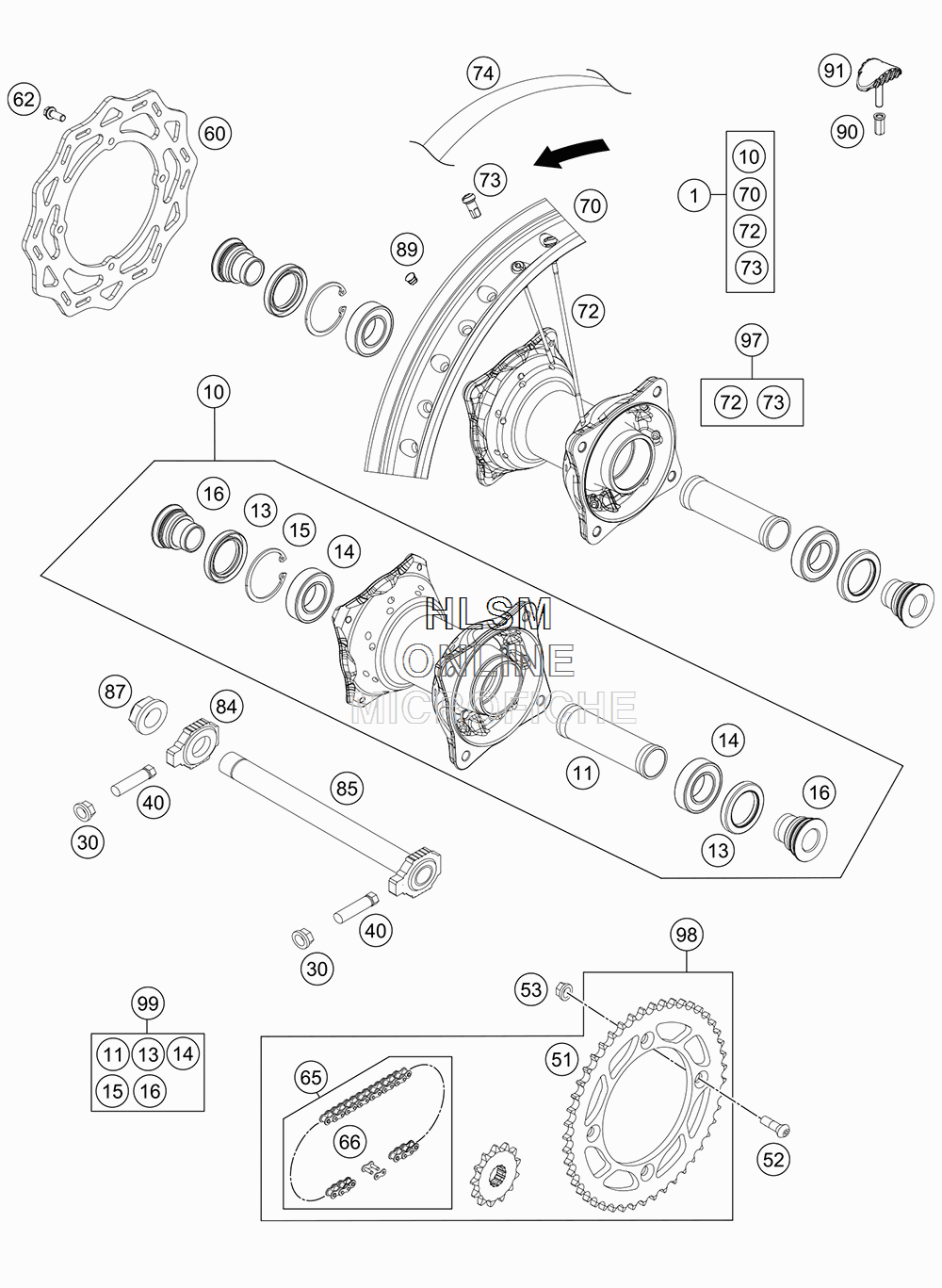

REAR WHEEL для Ktm 85 SX 19/16 - 2017 года выпуска
-
№АртикулНазвание
-
14711000174430 REAR WHEEL CPL. 16" BLACKREAR WHEEL CPL. 16" BLACK
-
1070010010044 REAR WHEEL HUB CPL. 12REAR WHEEL HUB CPL. 12
-
1170010011000 BEAR.SPACER TUBE ґ12BEAR.SPACER TUBE ґ12
-
130760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
140625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
150472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
1678010016000 BUSHING FOR HUBBUSHING FOR HUB
-
3046030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
4050203030090 HH SCREW M8X40HH SCREW M8X40
-
5147010051044 REAR SPROCKET 44-TREAR SPROCKET 44-T
-
5147010051045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
5147010051046 REAR SPROCKET 46-TREAR SPROCKET 46-T
-
5147010051047 REAR SPROCKET 47-TREAR SPROCKET 47-T
-
5147010051048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
5147010051049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
5147010051050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
5147010051051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
520019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
5306923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
6023610060000 REAR DISC D=210MMREAR DISC D=210MM
-
6259009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
6547010165124 CHAIN 124 ROLLSCHAIN 124 ROLLS
-
6647010166000 CONNECTING LINKCONNECTING LINK
-
702351007030030 RIM REAR 16X1,85 BLACKRIM REAR 16X1,85 BLACK
-
724711007116830 SPOKE M4,5X168-16" BLACKSPOKE M4,5X168-16" BLACK
-
7377109072000 SPOKE NIPPLE M4,5 ALSPOKE NIPPLE M4,5 AL
-
7447010073200 RIM BAND 16"RIM BAND 16"
-
8470010084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
8570010085044 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
8750310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9077110090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9170010090000 RIM LOCK 1,85"RIM LOCK 1,85"
-
9700050000968 SPOKE KIT REAR "16" 13SPOKE KIT REAR "16" 13
-
9800050002003 DRIVETRAIN KIT 105 SX 14T/49TDRIVETRAIN KIT 105 SX 14T/49T
-
9970010015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
