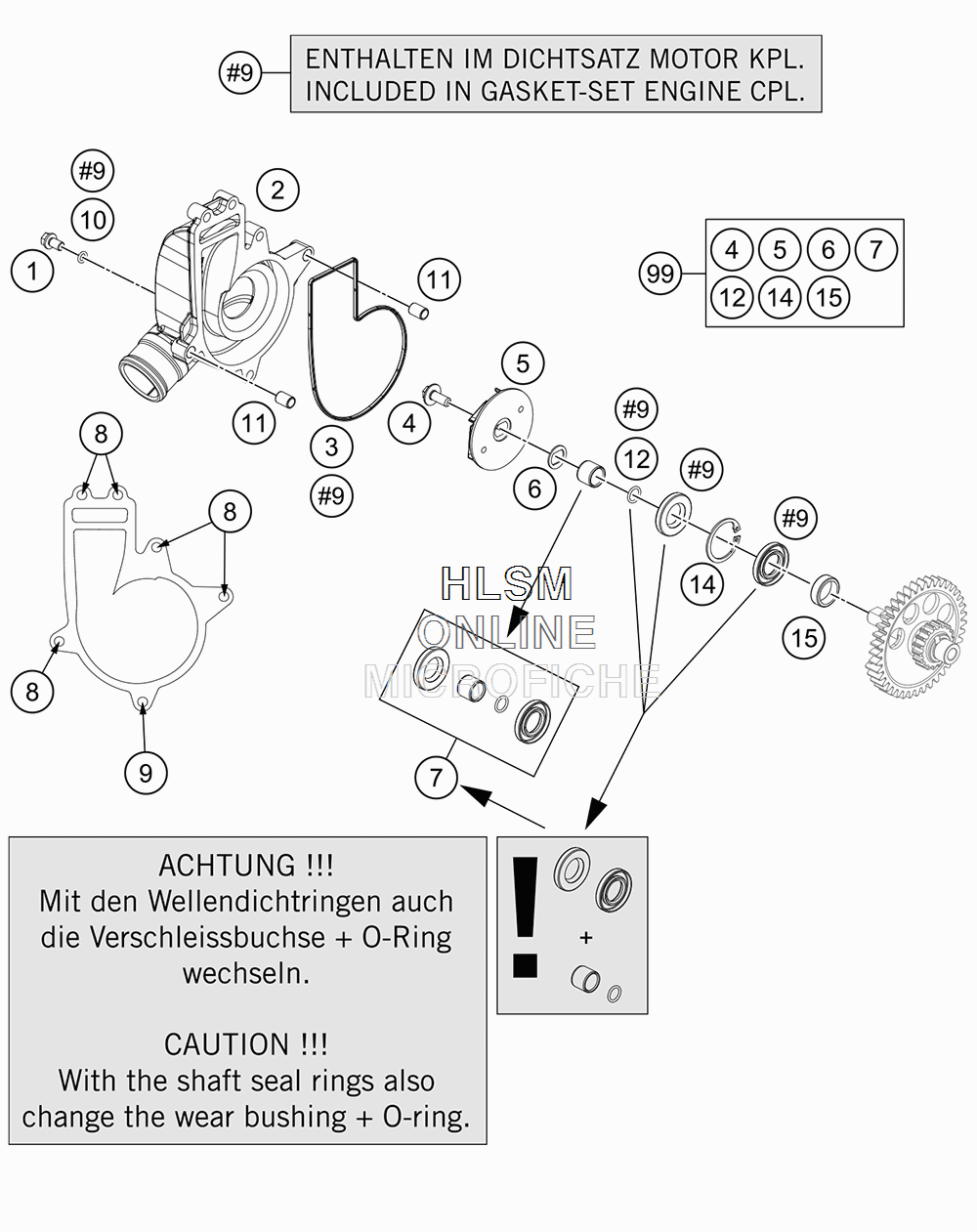

WATER PUMP для Ktm 1090 ADVENTURE - 2018 года выпуска
-
№АртикулНазвание
-
10025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
26033505200041 WATER PUMP COVER CPL.WATER PUMP COVER CPL.
-
361235061000 MOLDED RING WATER PUMP COV. 08MOLDED RING WATER PUMP COV. 08
-
40024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
560335055100 WATER PUMP WHEEL CPL.WATER PUMP WHEEL CPL.
-
660035055150 FORM WASHER 16X1 NIROFORM WASHER 16X1 NIRO
-
761235065244 WEAR BUSHING WITH SEAL RINGWEAR BUSHING WITH SEAL RING
-
80025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
90025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
100603061201 CU-DICHTRING 6X10X2CU-DICHTRING 6X10X2
-
1159030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
1207700900151 O-RING 9X1,5 V80 SHO-RING 9X1,5 V80 SH
-
1404720300121 CIRCLIP DIN0472-30X1,2 NIROCIRCLIP DIN0472-30X1,2 NIRO
-
1561330157050 SLIDE BEARINGSLIDE BEARING
-
9960335055110 WATER PUMP REP. KIT ADV.1190WATER PUMP REP. KIT ADV.1190
