KICK STARTER для Ktm 125 SX - 2018 года выпуска
-

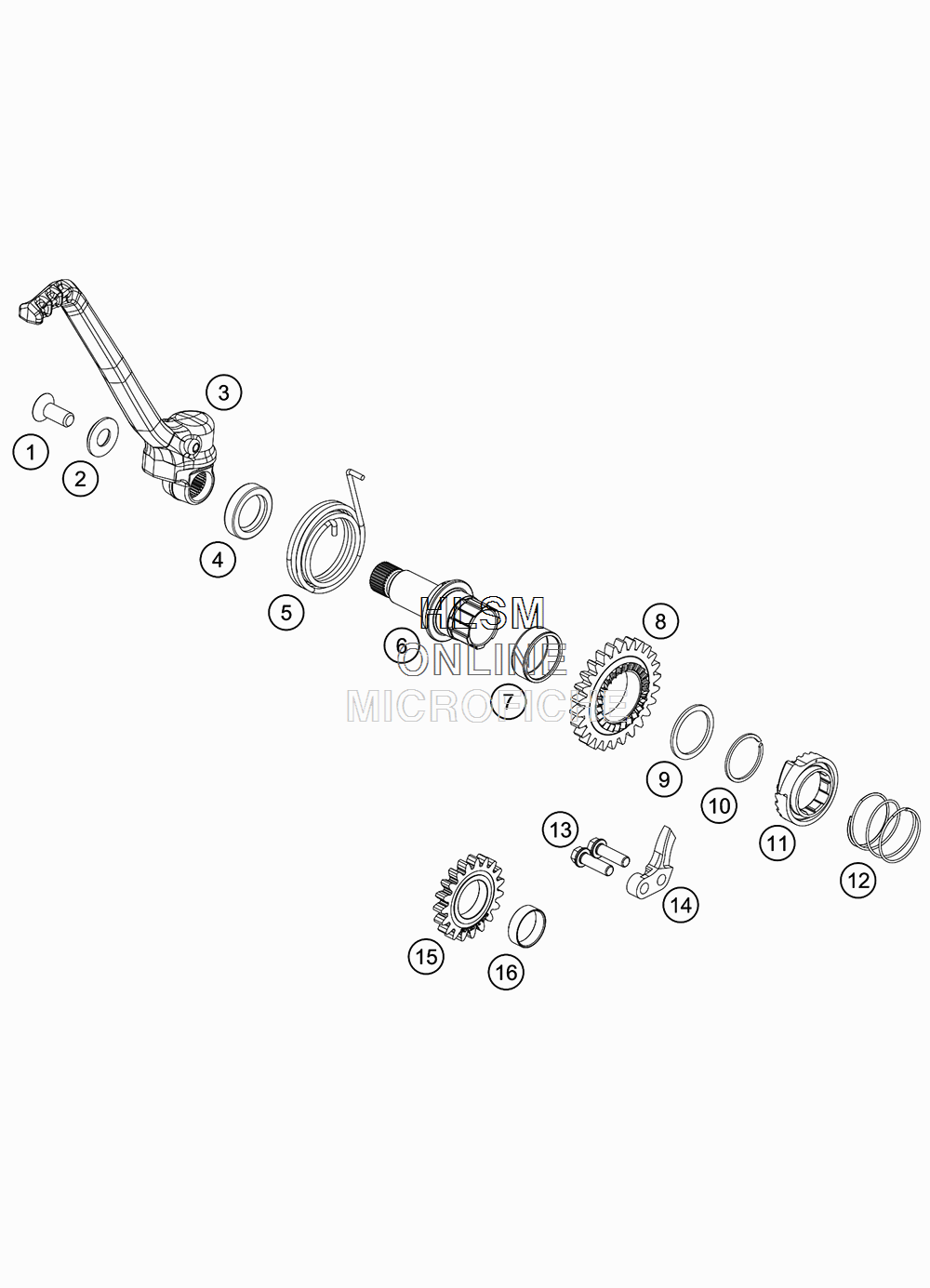

№АртикулНазвание
-
10019080206S FLAT HEAD SCREW M. ISA45 M8X20FLAT HEAD SCREW M. ISA45 M8X20
-
254633037000 WASHER 8MM GALVANIZEDWASHER 8MM GALVANIZED
-
350433070044 KICKSTARTER CPL.KICKSTARTER CPL.
-
40760193070 SHAFT SEAL RING 19X30X7 BSHAFT SEAL RING 19X30X7 B
-
550433054000 KICK STARTER SPRINGKICK STARTER SPRING
-
679233050000 KICK STARTER SHAFTKICK STARTER SHAFT
-
70405252910 NEEDLE BEAR K 25X29X10NEEDLE BEAR K 25X29X10
-
850433051026 KICK STARTER WHEEL 26TKICK STARTER WHEEL 26T
-
954833044000 STOP DISC 25X31X1,5STOP DISC 25X31X1,5
-
100417025000 CIRCLIP SW25CIRCLIP SW25
-
1150433052000 KICK STARTER RATCHETKICK STARTER RATCHET
-
1258033028000 RATCHET GEAR SPRING 1,2 MMRATCHET GEAR SPRING 1,2 MM
-
130025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1459033069000 BUMP PARTBUMP PART
-
1550433053019 STARTER INTERMEDIATE GEAR 19TSTARTER INTERMEDIATE GEAR 19T
-
1650433024050 BUSHING IDLER GEARBUSHING IDLER GEAR
