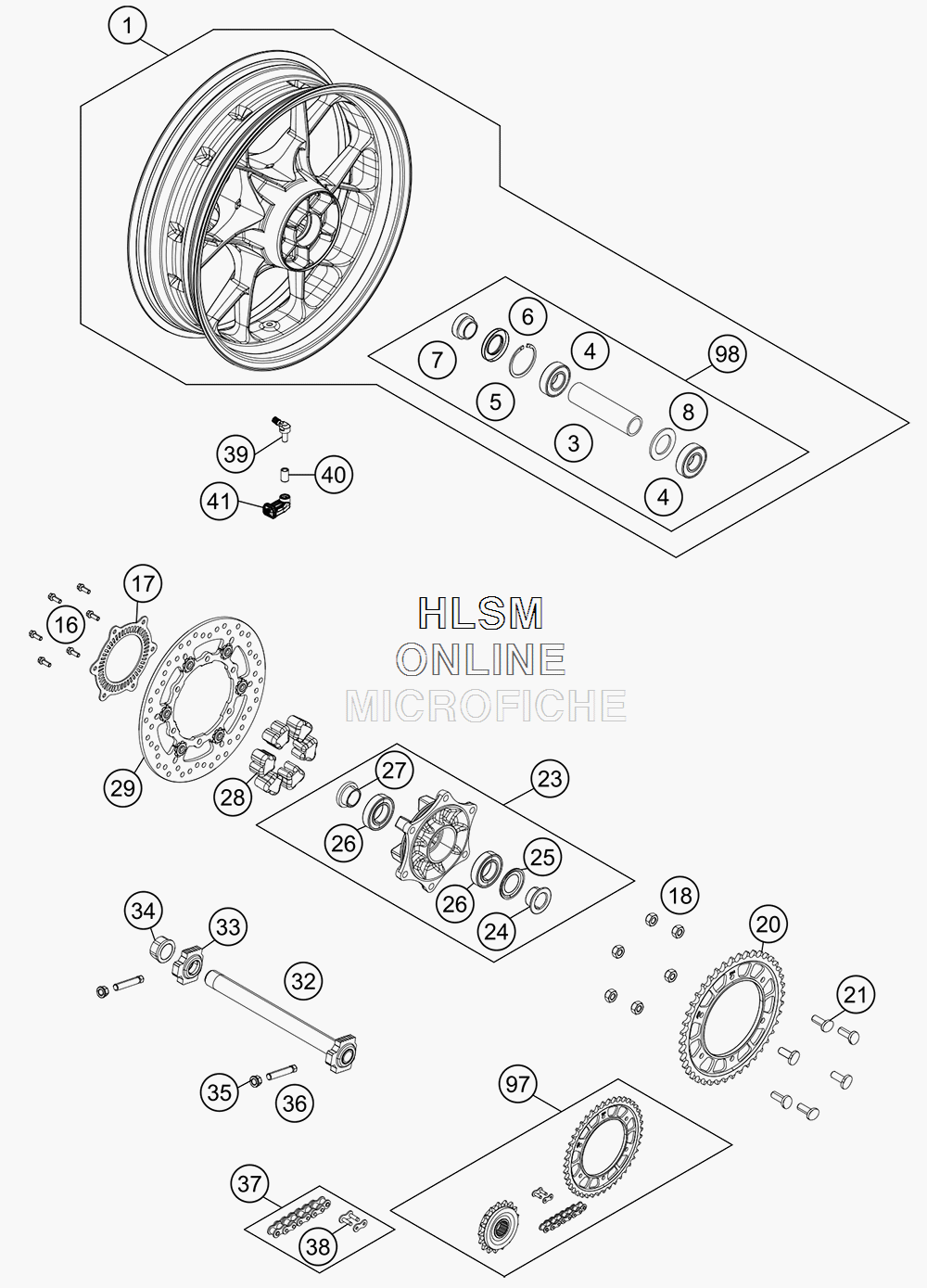

REAR WHEEL для Ktm 1290 SUPER ADVENTURE S BLACK - 2018 года выпуска
-
№АртикулНазвание
-
16071010104430 REAR WHEEL 5.0''X17'' KPL.REAR WHEEL 5.0''X17'' KPL.
-
360010011000 BEAR. SPACERTUBE L=124,8MMBEAR. SPACERTUBE L=124,8MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760310013100 SPACER BUSH. FRONT WHEEL R/SSPACER BUSH. FRONT WHEEL R/S
-
860010015000 SPACER RINGSPACER RING
-
1659009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
1760142021100 SENSOR GEAR ABS REARSENSOR GEAR ABS REAR
-
180980101253 HEXAG.NUT DIN 980V M10X1,25 SLHEXAG.NUT DIN 980V M10X1,25 SL
-
2060010051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
2160010052000 SPROCKET SCREW M10X1,25SPROCKET SCREW M10X1,25
-
236011005004433 SPROCKET SUPPORT CPL. BLACKSPROCKET SUPPORT CPL. BLACK
-
2460110012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
2560110016000 NILOS RING 6006AVNILOS RING 6006AV
-
260625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
2760110014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
2854610459000 RUBBER DAMPING BLOCKRUBBER DAMPING BLOCK
-
296031006000030 BRAKE DISK REARBRAKE DISK REAR
-
3260310081044 AXLE REAR CPL.AXLE REAR CPL.
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3461010086000 COLLAR NUT M25X1,5 WS=32COLLAR NUT M25X1,5 WS=32
-
3558414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
3650304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
3760410165118 CHAIN 525 SDZZ WITH MAST. LINKCHAIN 525 SDZZ WITH MAST. LINK
-
3860410066000 MASTER LINK F.CHAIN 525 SDZZMASTER LINK F.CHAIN 525 SDZZ
-
3961412033060 VALVE 8,5MM 90° F . TPMS SMALLVALVE 8,5MM 90° F . TPMS SMALL
-
4061412033050 NUT F. TYRE-PRESSURE SENSOR SMNUT F. TYRE-PRESSURE SENSOR SM
-
4161412033000 TIRE PRESSURE SENSOR SMALLTIRE PRESSURE SENSOR SMALL
-
9700050002013 DRIVETRAIN KIT ADV/-S 17T/42TDRIVETRAIN KIT ADV/-S 17T/42T
-
9860610015000 REAR WHEEL REP . KITREAR WHEEL REP . KIT
