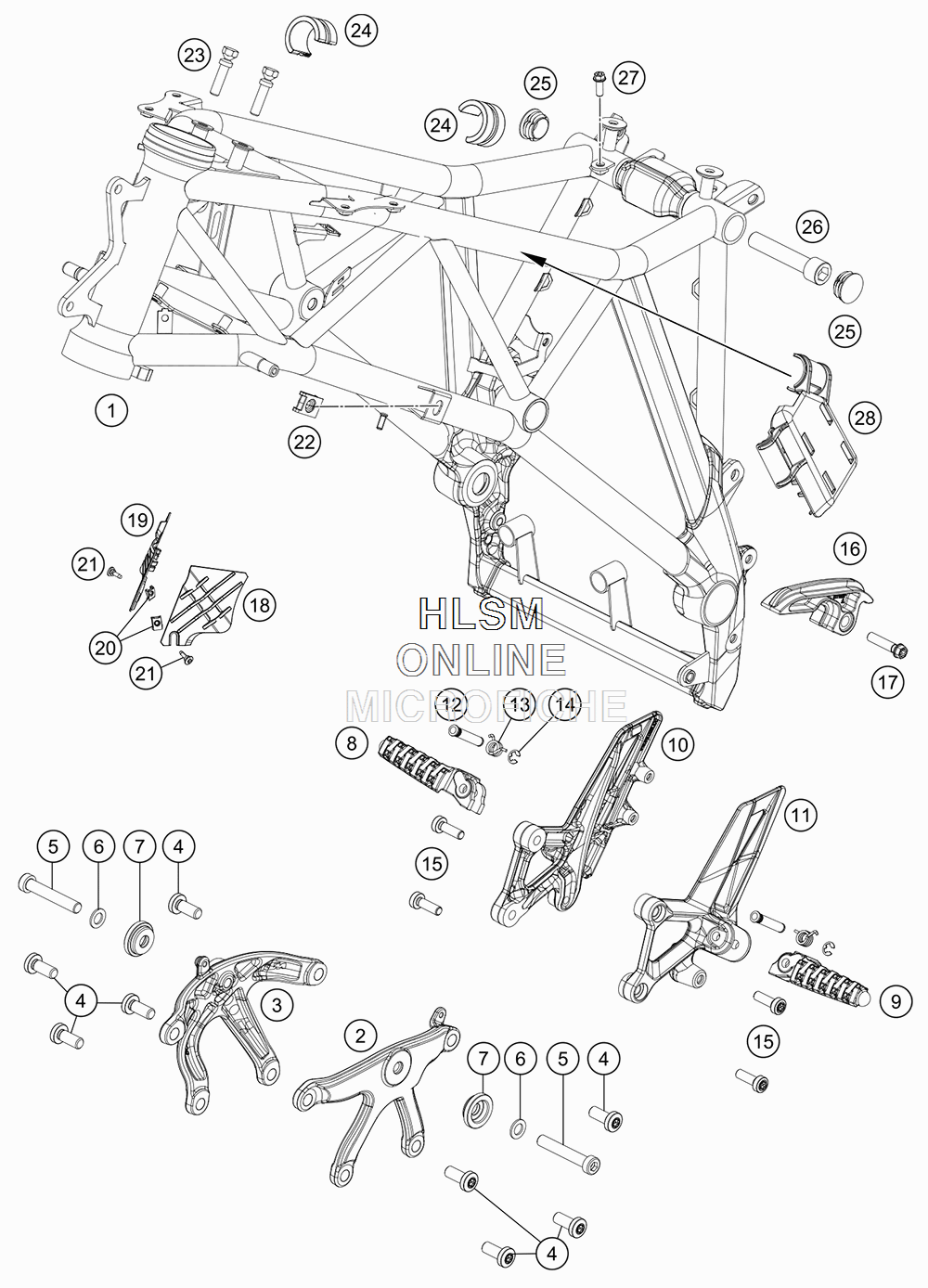

FRAME для Ktm 1290 SUPER DUKE GT ORANGE - 2018 года выпуска
-
№АртикулНазвание
-
161403001300EB FRAME "614QA" EL ORANGEFRAME "614QA" EL ORANGE
-
26030300500033S ENGINE SUPPORTL/S BLACKENGINE SUPPORTL/S BLACK
-
36030300600033S ENGINE SUPPORT R/S BLACKENGINE SUPPORT R/S BLACK
-
40035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
50035100609S AH-COLLAR SCREW M10X60 ISA45AH-COLLAR SCREW M10X60 ISA45
-
60433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
760303010000 BUSHING MOTOR MOUNTINGBUSHING MOTOR MOUNTING
-
86900314100033S FOOTREST FRONT R/SFOOTREST FRONT R/S
-
96900314000033S FOOTREST FRONT L/SFOOTREST FRONT L/S
-
106130303910033S FOOTREST SUPPOR T FRONT R/S BL.FOOTREST SUPPOR T FRONT R/S BL.
-
116130313800033S FOOTREST PLA TE FR. L/SFOOTREST PLA TE FR. L/S
-
1260003044100 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
1361003042000 SPRING FOOTREST FRONTSPRING FOOTREST FRONT
-
140799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
150035080256 AH-COLLAR SCREW M8X25 ISA45AH-COLLAR SCREW M8X25 ISA45
-
1661304076000 CHAIN SLIDING BLOCK-FRAMECHAIN SLIDING BLOCK-FRAME
-
170025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
1861303085000 FRAME COVER L/SFRAME COVER L/S
-
1961403086000 FRAME COVER RIGHTFRAME COVER RIGHT
-
2069008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
2169008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
2254603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
2361111064000 TAMPER-PROOF SCREWTAMPER-PROOF SCREW
-
2461007014000 SPACER FUEL TANKSPACER FUEL TANK
-
2561303088000 PLUG SFL 22X0,8-3,0PLUG SFL 22X0,8-3,0
-
2660004017000 SCREW M14X1,5 L=73MMSCREW M14X1,5 L=73MM
-
270025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
2861412032040 TPMS HOLDERTPMS HOLDER
