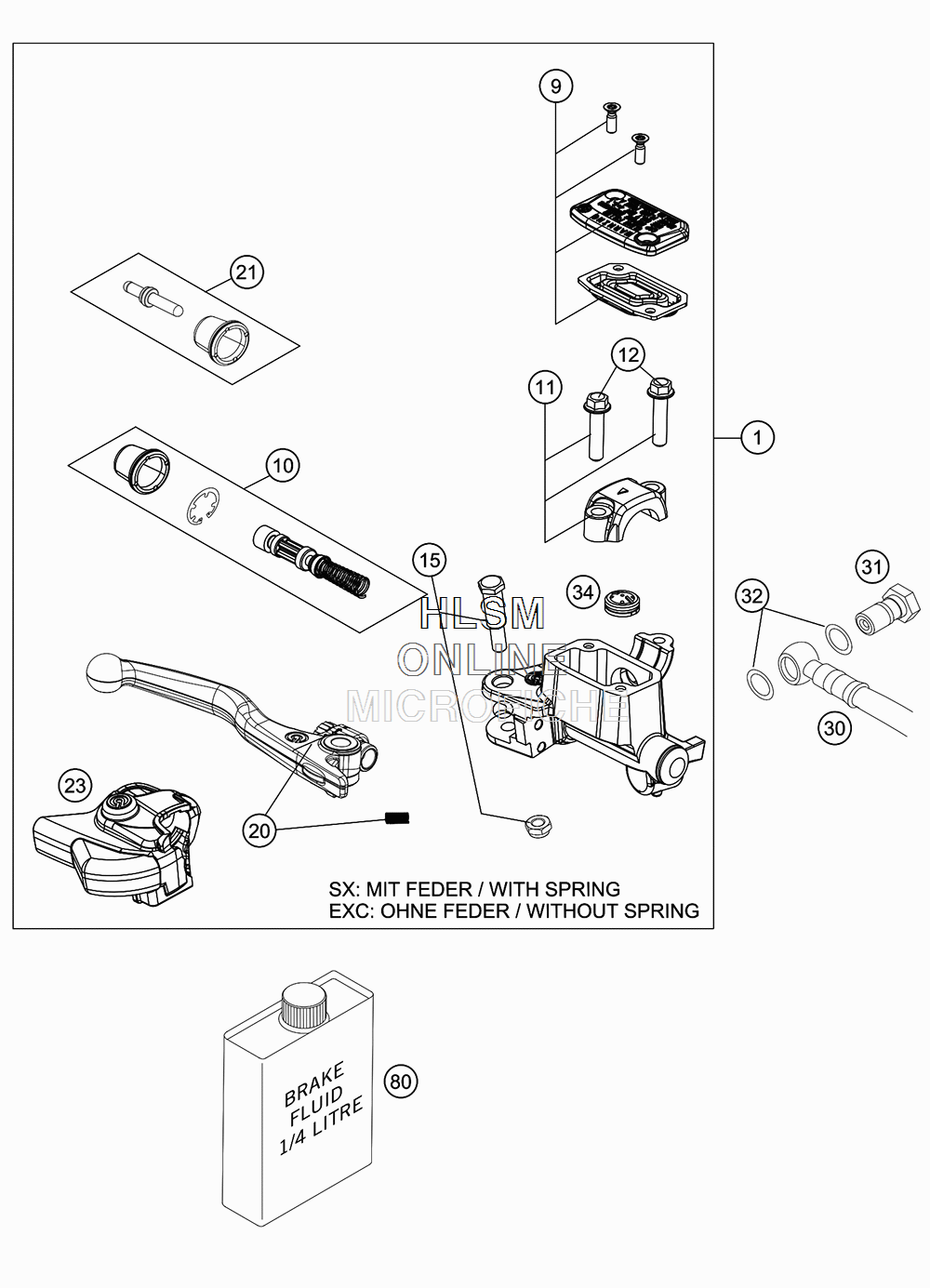

HAND BRAKE CYLINDER для Ktm 150 SX - 2018 года выпуска
-
№АртикулНазвание
-
177713001044 HAND BREAK CYLIND. CPL.HAND BREAK CYLIND. CPL.
-
977713003000 HAND BRAKE CYL. COVERHAND BRAKE CYL. COVER
-
1077713008000 REPAIR KIT PISTONREPAIR KIT PISTON
-
1154802005100 CLAMP CPL.CLAMP CPL.
-
120025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1577713006000 LEVER SCREWLEVER SCREW
-
2077713002000 HAND BRAKE LEVER +SPRINGHAND BRAKE LEVER +SPRING
-
2177713007000 PUSH ROD CPL.PUSH ROD CPL.
-
2377713004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
3059013010000 BRAKEHO. FRONT 1235MMBRAKEHO. FRONT 1235MM
-
3154813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
320603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
3454802051000 VALVEVALVE
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
