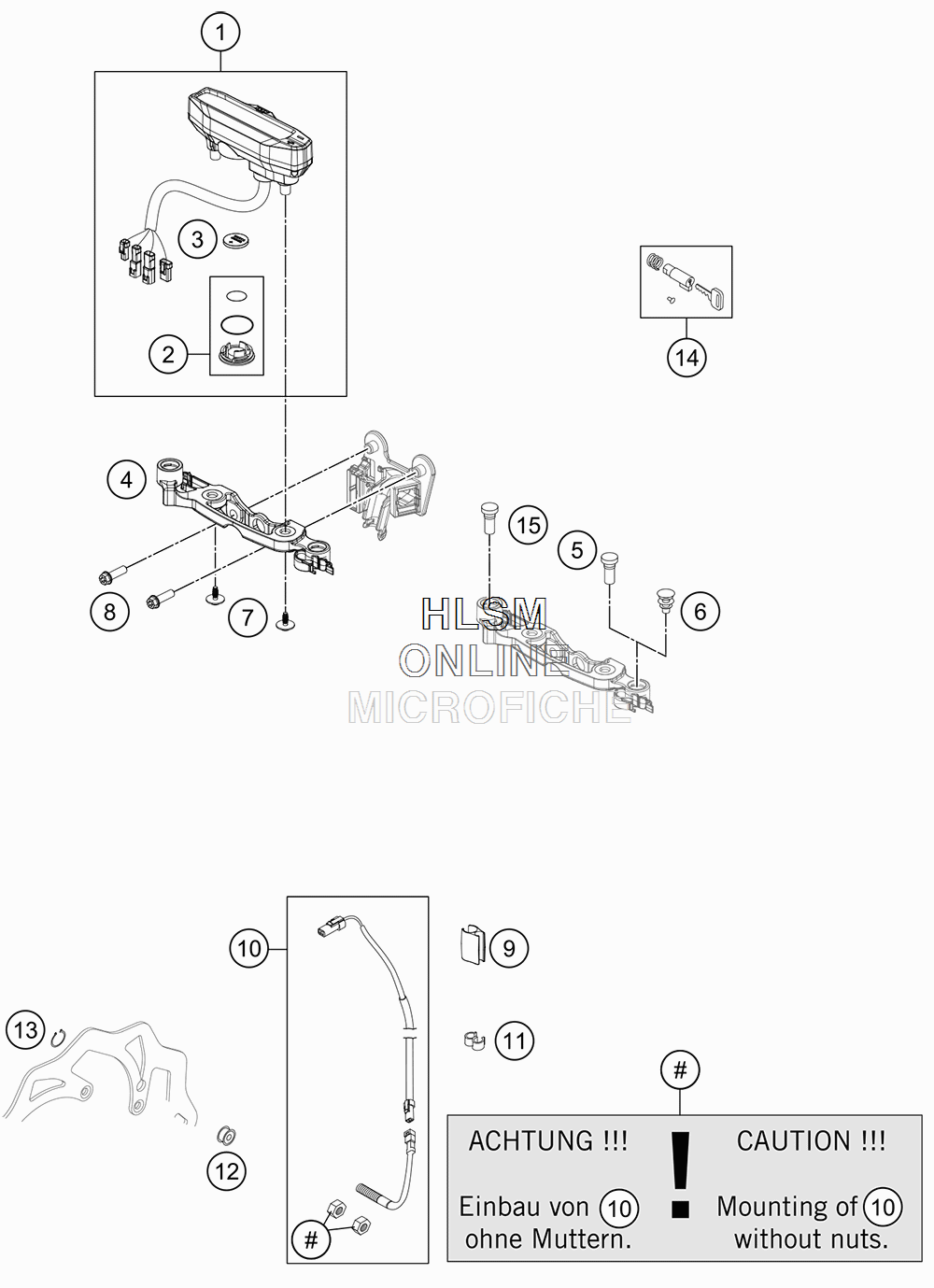

INSTRUMENTS / LOCK SYSTEM для Ktm 250 EXC TPI - 2018 года выпуска
-
№АртикулНазвание
-
177714069400 TACHO DIGITAL KM/H F. 21"TACHO DIGITAL KM/H F. 21"
-
277714069010 BATTERY COVER F. SPEEDOMETERBATTERY COVER F. SPEEDOMETER
-
358314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
455614060000 TACHOMETER BRACKETTACHOMETER BRACKET
-
558011024300 FLASHER INDICAT.LIGHT GREEN'98FLASHER INDICAT.LIGHT GREEN'98
-
650210086000 COVERING CAP SFL16COVERING CAP SFL16
-
70081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
80024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
954813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
1054814068100 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
1160111094000 CLIP 5/7 MMCLIP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
130471009104 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
1478003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
-
1555638063000 INDICA TOR LAMP ''OIL LEVEL''INDICA TOR LAMP ''OIL LEVEL''
