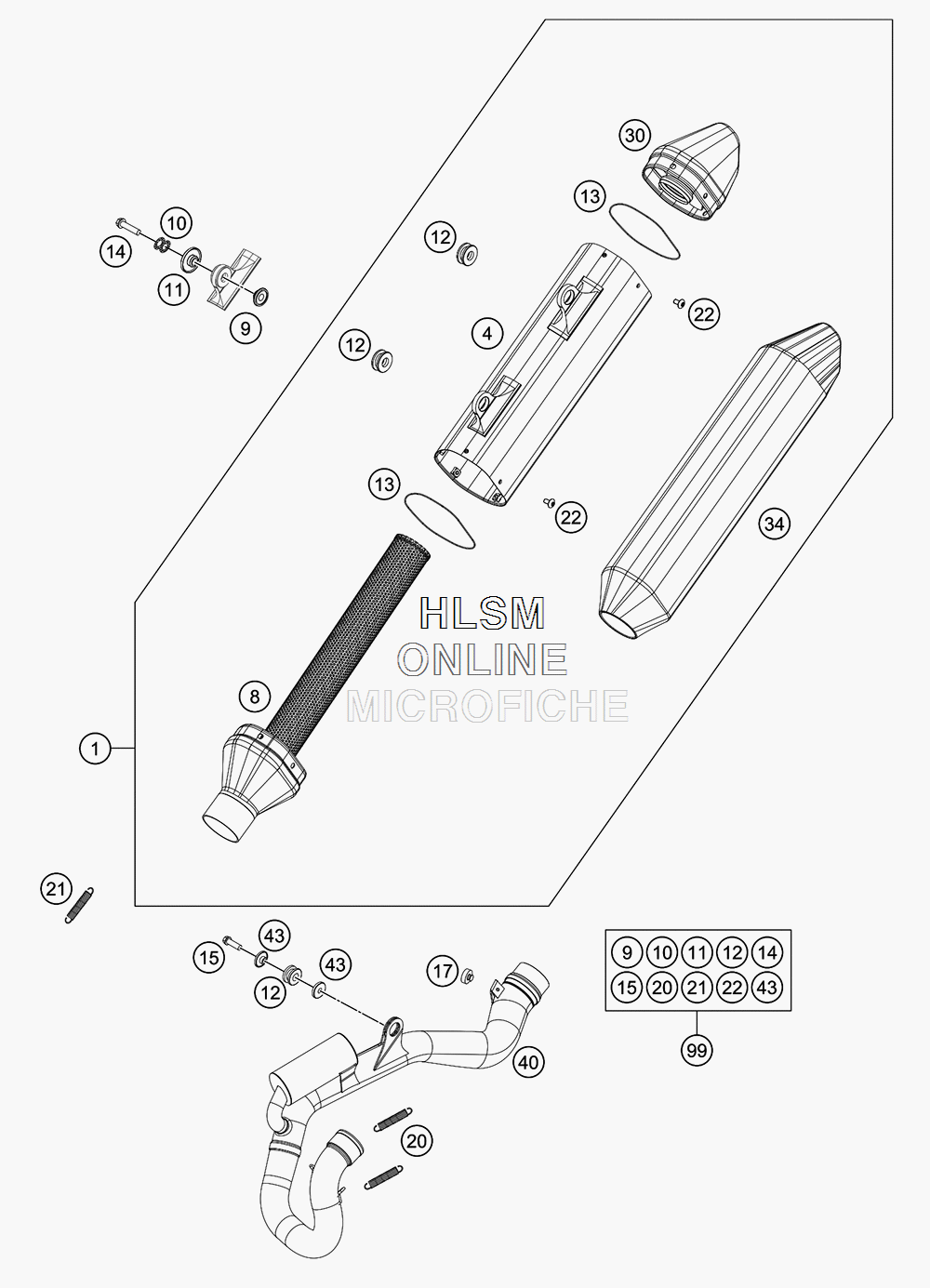

EXHAUST SYSTEM для Ktm 250 SX-F - 2018 года выпуска
-
№АртикулНазвание
-
179005079000 SILENCERSILENCER
-
479005079080 SILENCER HOUSINGSILENCER HOUSING
-
879005079050 CONNECTING CAP CPL.CONNECTING CAP CPL.
-
977205069000 BUSHING 7.5X12X20X8.2BUSHING 7.5X12X20X8.2
-
1050233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
1177205169000 BUSHING 7.5X12X28X8.3BUSHING 7.5X12X28X8.3
-
1277205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
130770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
140025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
150025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
1754308042000 RUBBER BUFFERRUBBER BUFFER
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
2150305116000 TEN.SPRING L=75MM EY.MOVEABLETEN.SPRING L=75MM EY.MOVEABLE
-
2278105081010 SCREW TORX M5X10SCREW TORX M5X10
-
3077705079060 ENDCAP CPL.ENDCAP CPL.
-
3479005078590 ROCKWOOL PREFORMEDROCKWOOL PREFORMED
-
4079005007100 EXHAUST PIPE SXEXHAUST PIPE SX
-
4377805069000 BUSHING 8.5X12X28X8.3BUSHING 8.5X12X28X8.3
-
9900050000819 EXHAUST PARTS KITEXHAUST PARTS KIT
