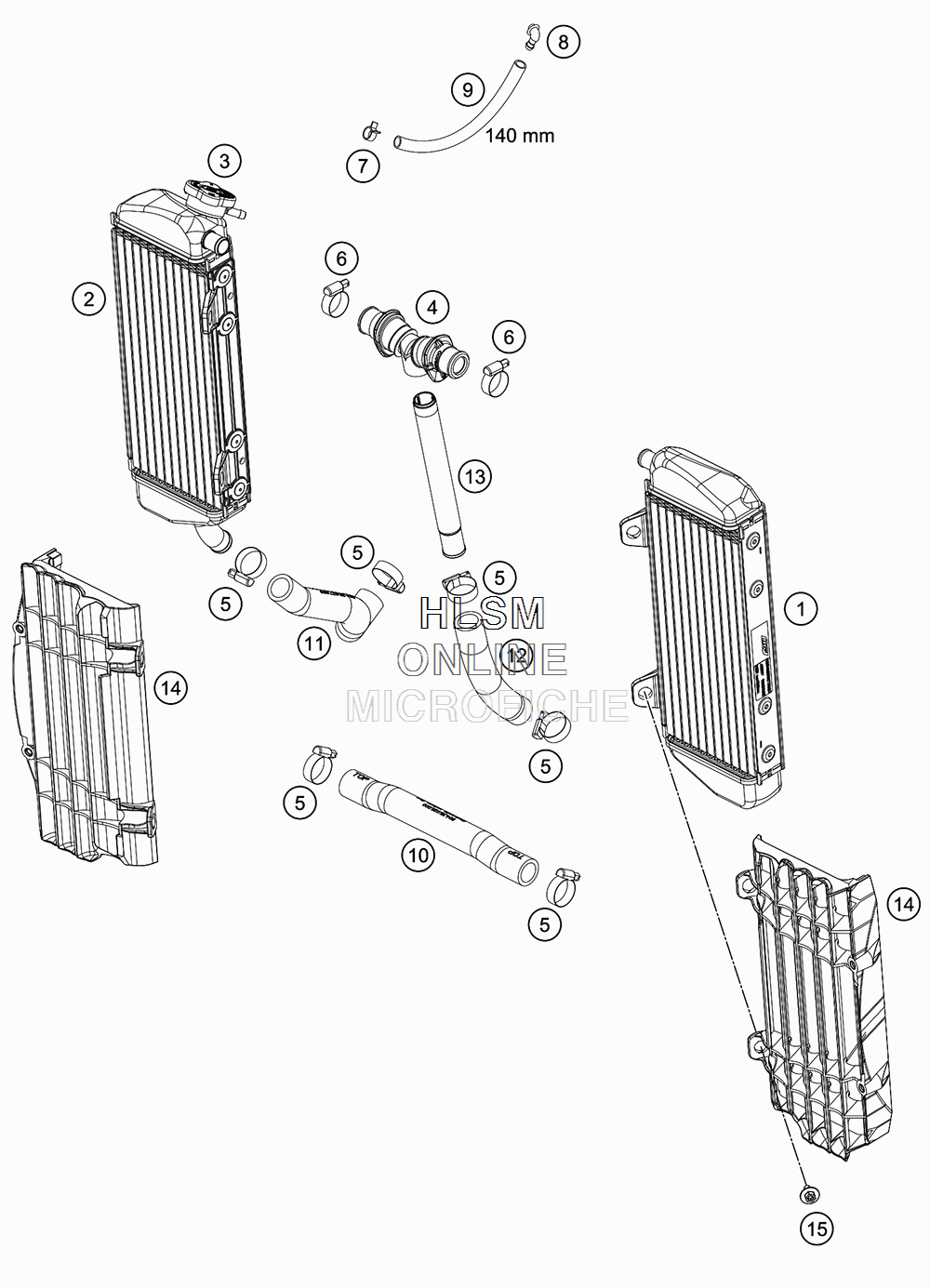

COOLING SYSTEM для Ktm 300 XC-W - 2018 года выпуска
-
№АртикулНазвание
-
150435007100 RADIATOR LEFTRADIATOR LEFT
-
250435008100 RADIATOR RIGHTRADIATOR RIGHT
-
379035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
479035071044 Y-PIECE CPL.Y-PIECE CPL.
-
510001020000 HOSE CLAMP GEMI 18-29HOSE CLAMP GEMI 18-29
-
642013037400 HOSE CLAMP NORMA 14/24HOSE CLAMP NORMA 14/24
-
759007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
-
850303089000 ANGLE PIECEANGLE PIECE
-
950335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
1056535025001 RADIATOR HOSE 18X25 PER METRERADIATOR HOSE 18X25 PER METRE
-
1155435024000 HOSE ENGINE Y -LINKHOSE ENGINE Y -LINK
-
1255435025000 RADIA TOR TUBE 18X25 L=115RADIA TOR TUBE 18X25 L=115
-
1350435073000 COOLING WATER PIPECOOLING WATER PIPE
-
150024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
