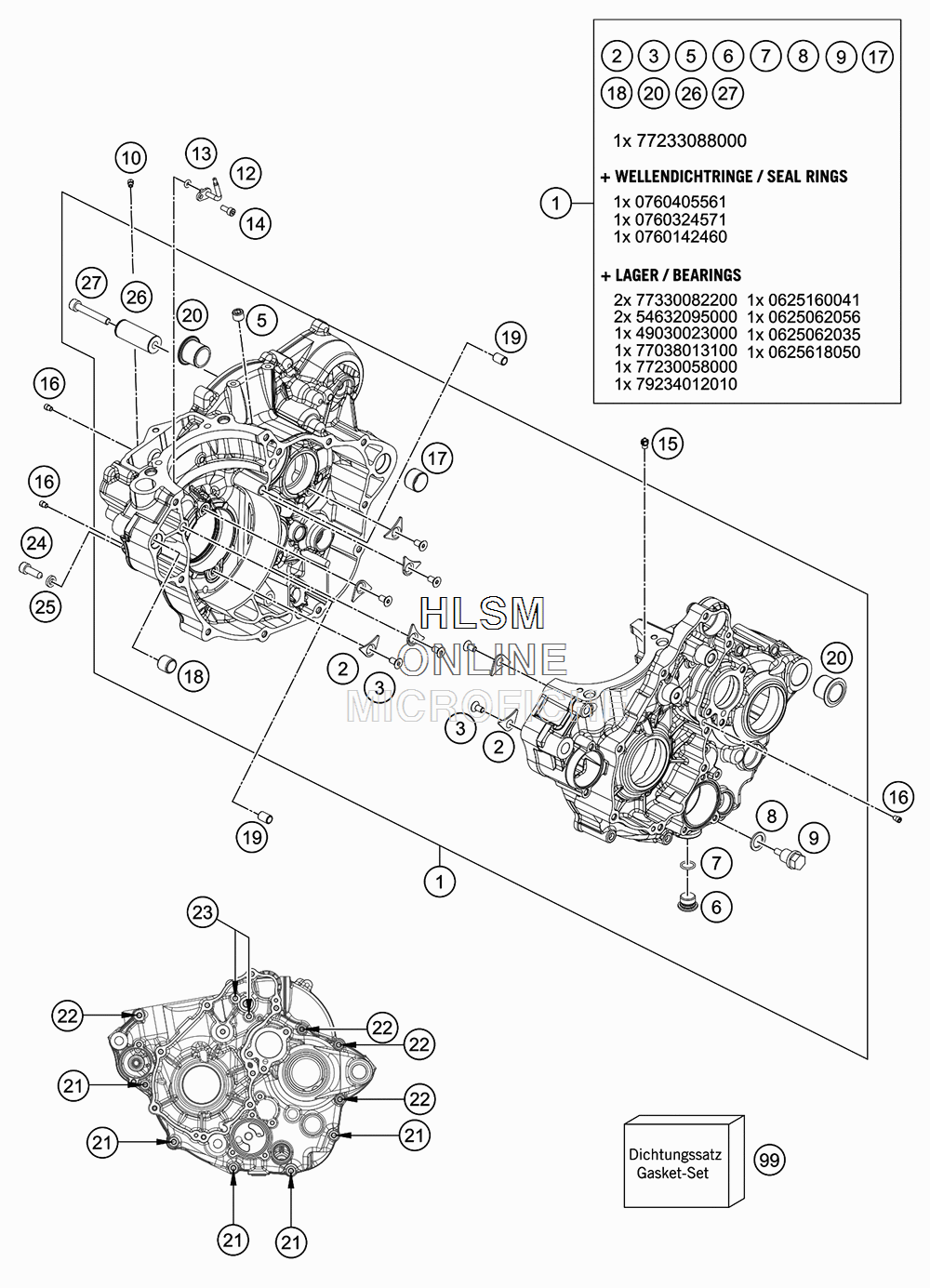

ENGINE CASE для Ktm 350 EXC-F - 2018 года выпуска
-
№АртикулНазвание
-
179230100133 ENGINE CASE CPL.ENGINE CASE CPL.
-
275030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
30019050121S INT. TORX FLAT HEAD M5X12 T25INT. TORX FLAT HEAD M5X12 T25
-
50906100100 PLUG DIN0906-M10X1PLUG DIN0906-M10X1
-
678036081000 HOLDING BOLT M14X1,5HOLDING BOLT M14X1,5
-
70770110015 O-RING 1,5X11 SILICONO-RING 1,5X11 SILICON
-
858038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
958030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
1080030058060 OIL JET "60" M4OIL JET "60" M4
-
1277830064070 OIL JET CURVED " 70 "OIL JET CURVED " 70 "
-
130770035020 O-RING 3,5X2,00 NBRO-RING 3,5X2,00 NBR
-
140912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
1560030063070 OIL JET 70 M5OIL JET 70 M5
-
1659030058000 JET 100 BING(44-031/180) M4JET 100 BING(44-031/180) M4
-
1759030024000 DOWEL 17 X 19 X 12DOWEL 17 X 19 X 12
-
1854630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
1959030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
2079230010000 CASE BUSHCASE BUSH
-
210025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
220025060656 HH COLLAR SCREW M6X65HH COLLAR SCREW M6X65
-
230025060706 HH COLLAR SCREW M6X70HH COLLAR SCREW M6X70
-
2458030080000 LOCATING SCREW M8 L=23LOCATING SCREW M8 L=23
-
2558030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
2659033018000 BUSHING PINBUSHING PIN
-
270912060406 AH SCREW DIN0912 M 6X40AH SCREW DIN0912 M 6X40
-
9979030099000 ENGINE GASKET KITENGINE GASKET KIT
