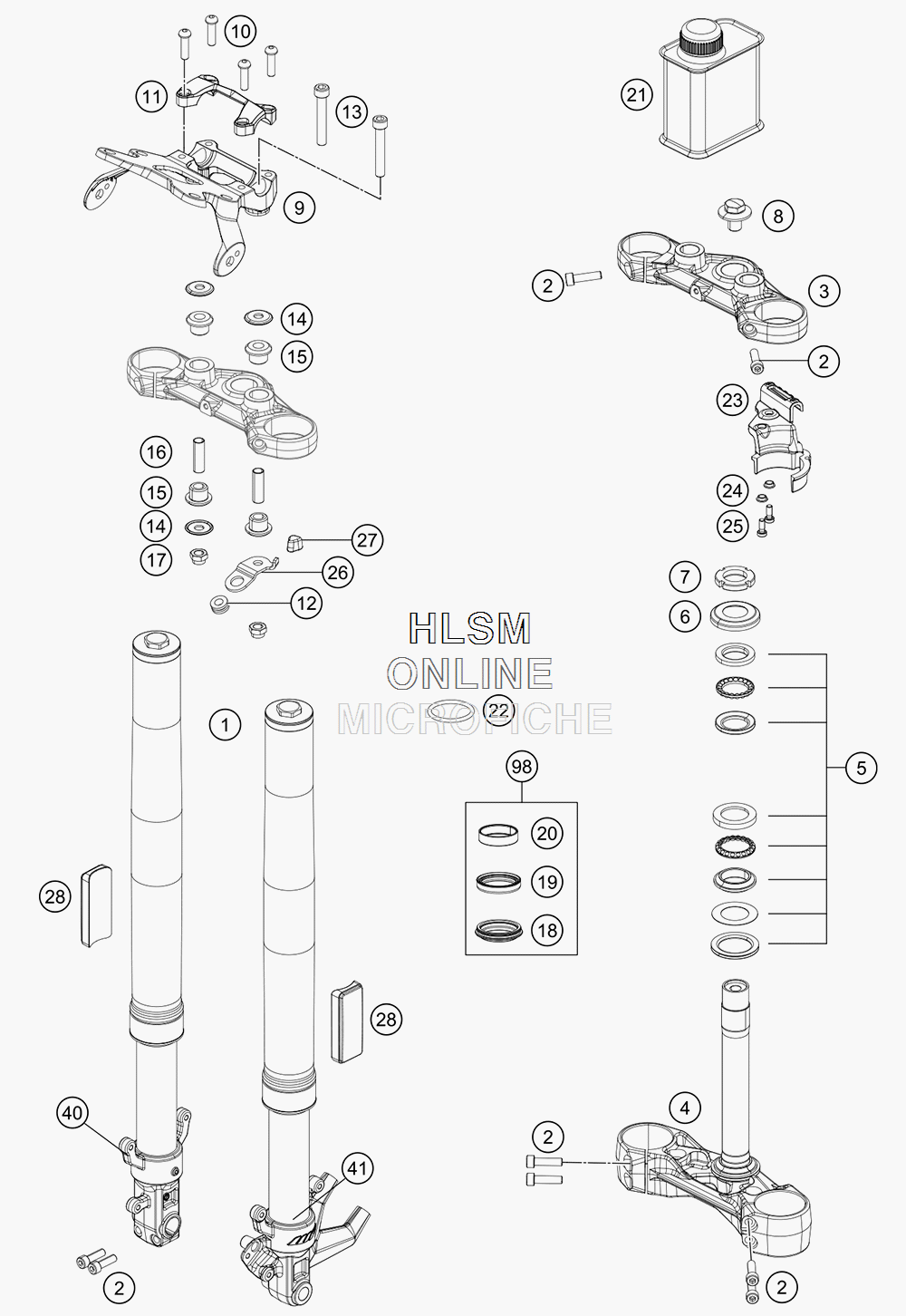

FRONT FORK- TRIPLE CLAMP для Ktm 390 DUKE WHITE - 2018 года выпуска
-
№АртикулНазвание
-
193301002100 ASSEMBLY LEG RIGHT 390 HDASSEMBLY LEG RIGHT 390 HD
-
290501045000 AH SCREW M8X1.25X30AH SCREW M8X1.25X30
-
393001034033 UPPER TRIPLE CLAMP GDCUPPER TRIPLE CLAMP GDC
-
493001032133 ASSEMBLY LOWER TRIPLE CLAMP GDCASSEMBLY LOWER TRIPLE CLAMP GDC
-
590101080044 STEERING HEAD BEARING-KITSTEERING HEAD BEARING-KIT
-
690101086000 PROTECTION CAPPROTECTION CAP
-
790101036000 ADJUSTING RING STEERING HEADADJUSTING RING STEERING HEAD
-
890501044000 SCREW STEERING HEADSCREW STEERING HEAD
-
993014064000 HOLDER HANDSBAR CUM TFT SPEEDOHOLDER HANDSBAR CUM TFT SPEEDO
-
10J912080293 BOLT SOCKET-M8X1.25X L 29XBLACKBOLT SOCKET-M8X1.25X L 29XBLACK
-
1193001038000 HANDLEBAR CLAMPHANDLEBAR CLAMP
-
1293032060030 SLEEVE CLUTCH CABLE GUIDESLEEVE CLUTCH CABLE GUIDE
-
1393001044000 HEXAGON SOCKET SCREW M10X1.25X72 8.8HEXAGON SOCKET SCREW M10X1.25X72 8.8
-
1490101042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
1590101040000 RUBBER BUSHINGRUBBER BUSHING
-
1693001041000 SPACER TUBE 10.2X12X42SPACER TUBE 10.2X12X42
-
17J982101253 SELF L. NUT M10X1,25 H11 WS17SELF L. NUT M10X1,25 H11 WS17
-
1843570624 DUST CAP 43X53,4X5,8DUST CAP 43X53,4X5,8
-
1943570623 OIL SEAL RING 43X52,9X11,4OIL SEAL RING 43X52,9X11,4
-
2043570618 GUIDE BUSHING 43X47X12GUIDE BUSHING 43X47X12
-
2148601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
2240140024 O-RING NBR 43X2O-RING NBR 43X2
-
2393013055000 HOSE CLAMPHOSE CLAMP
-
2490113055010 SLEEVE FOR HOSE CLAMPSLEEVE FOR HOSE CLAMP
-
25J021060156 AH SCREW M6X15 10.9AH SCREW M6X15 10.9
-
2693032059000 BRACKET CLUTCH CABLE GUIDEBRACKET CLUTCH CABLE GUIDE
-
2793032060020 RUBBER CLUTCH CABLE GUIDERUBBER CLUTCH CABLE GUIDE
-
2890212582001 SIDE REFLECTOR FRONTSIDE REFLECTOR FRONT
-
4093001007033 ASSEMBLY FORK PIPE RH.ASSEMBLY FORK PIPE RH.
-
4193001006033 ASSEMBLY FORK PIPE LH.ASSEMBLY FORK PIPE LH.
-
9890101000010 REP. KIT FORK KPL.REP. KIT FORK KPL.
