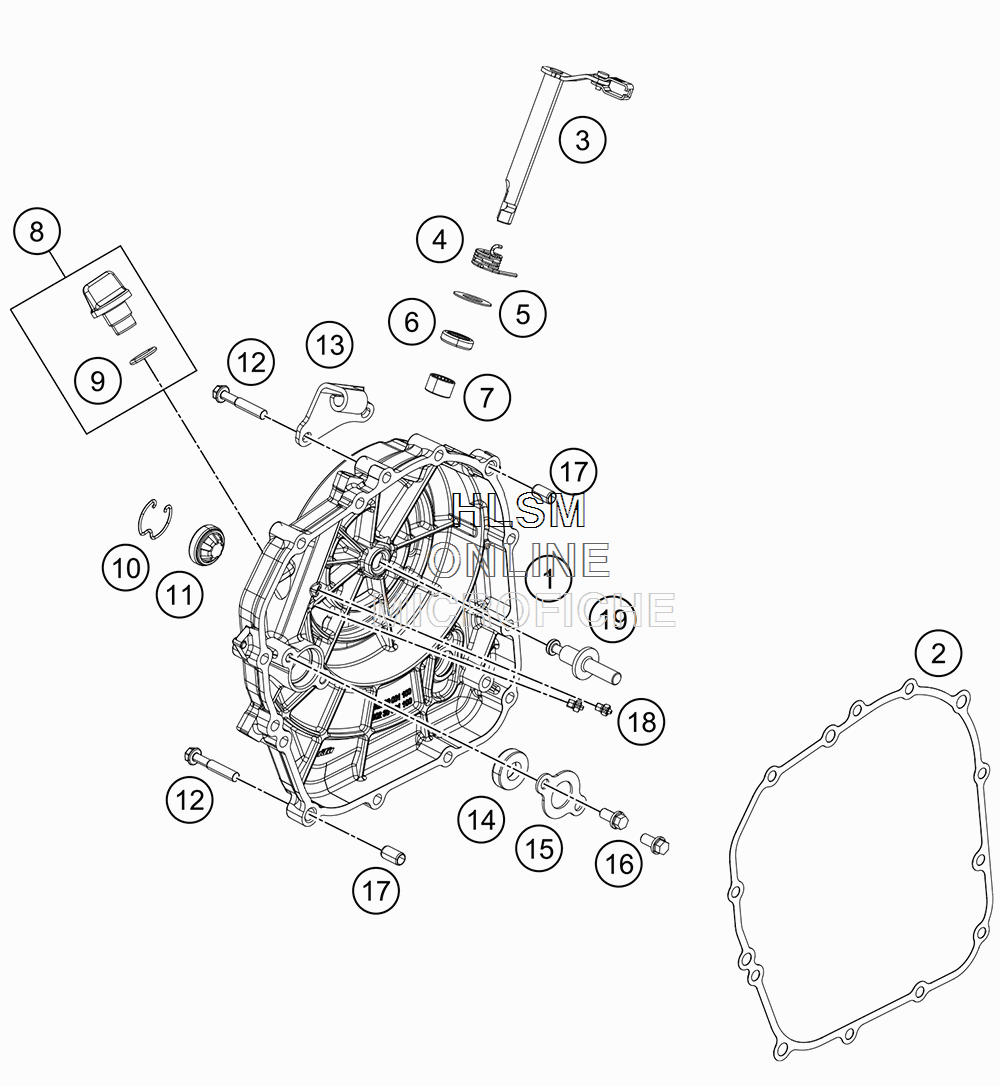

CLUTCH COVER для Ktm 390 RC - 2018 года выпуска
-
№АртикулНазвание
-
190230001144 CLUTCH COVER WITH PLUGCLUTCH COVER WITH PLUG
-
290230027000 GASKET CLUTCH COVERGASKET CLUTCH COVER
-
390232048133 CLUTCH RELEASE LEVER CPL.CLUTCH RELEASE LEVER CPL.
-
490232048003 SPRING F. RELEASE LEVERSPRING F. RELEASE LEVER
-
590132048005 WASHER 12,5X24X0,8MMWASHER 12,5X24X0,8MM
-
690132051000 OIL SEAL RINGOIL SEAL RING
-
790132050000 NEEDLE BEARINGNEEDLE BEARING
-
890130020000 OIL PLUG CPL.OIL PLUG CPL.
-
9J770013824 O-RING 13,8X2,4O-RING 13,8X2,4
-
1090630095000 WIRE CIRCLIP 28X1,5WIRE CIRCLIP 28X1,5
-
1190130095100 OIL GAUGE GLASSOIL GAUGE GLASS
-
12J025060353 HEX COLLAR SCREW M6X35HEX COLLAR SCREW M6X35
-
1390230059100 BRACKET CLUTCH CABLEBRACKET CLUTCH CABLE
-
1490134127000 OIL SEAL RINGOIL SEAL RING
-
1590230060001 STOPPER SHAFT SEAL RINGSTOPPER SHAFT SEAL RING
-
1690130078001 FLANGED BOLT 6X12FLANGED BOLT 6X12
-
1790130024000 PIN DOWEL 8X6,4X14MMPIN DOWEL 8X6,4X14MM
-
1890130064000 OIL JETOIL JET
-
1990232048004 PULL RODPULL ROD
