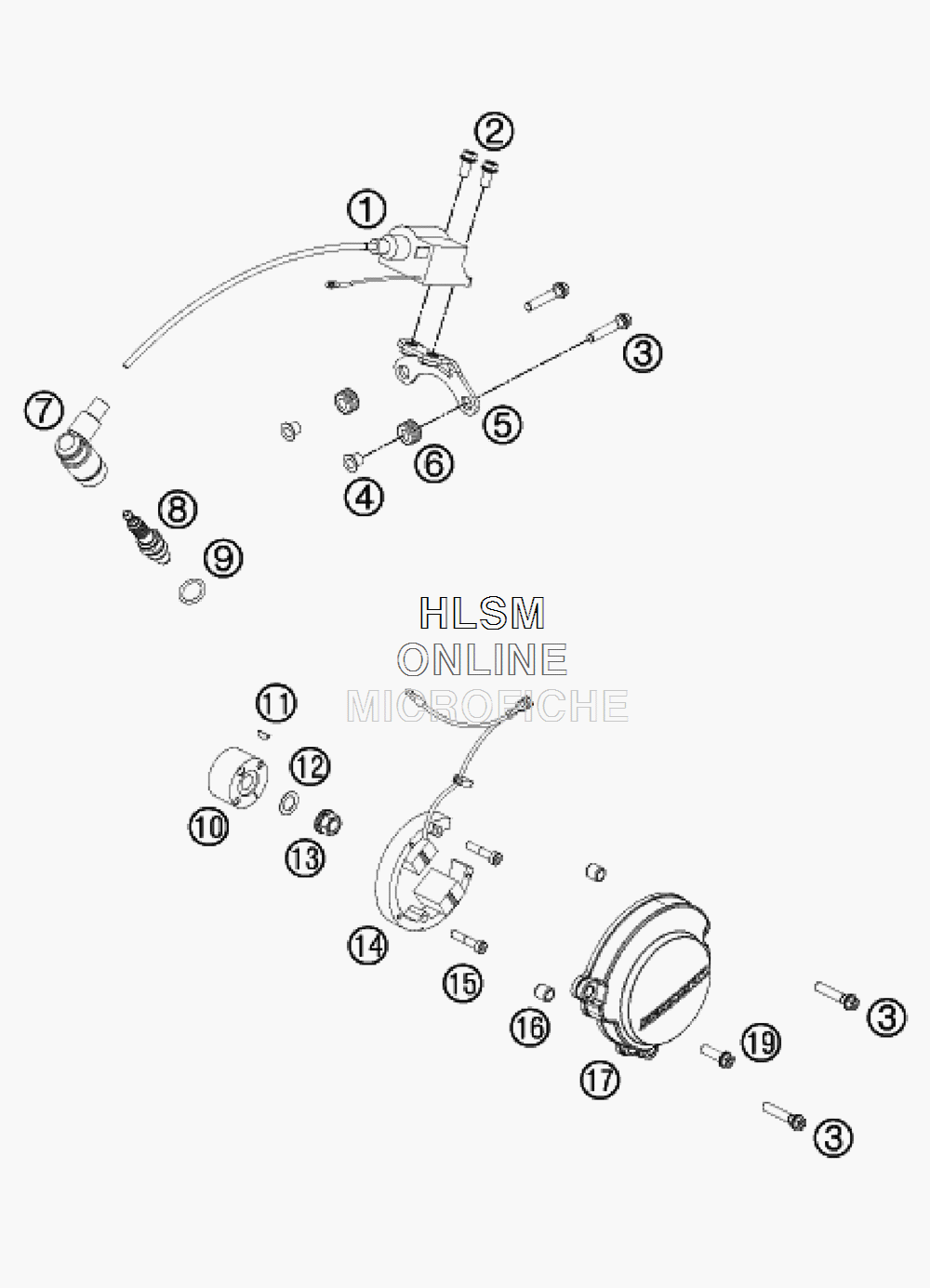

IGNITION SYSTEM для Ktm 50 SX - 2018 года выпуска
-
№АртикулНазвание
-
145239006100 IGNITION COILIGNITION COIL
-
20025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
30025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
445239060050 COLLAR BUSHING 6,3X8X13X9,5COLLAR BUSHING 6,3X8X13X9,5
-
545239010000 IGNIT. COIL RETAIN. PLATE CPL.IGNIT. COIL RETAIN. PLATE CPL.
-
631008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
746239090000 SPARK PLUG CONNECTORSPARK PLUG CONNECTOR
-
845239093000 SPARK PLUG LR8BSPARK PLUG LR8B
-
90770012030 O-RING 12,00X3,0 VITON 75O-RING 12,00X3,0 VITON 75
-
1045139005100 FLYWEEL ROTOR 50FLYWEEL ROTOR 50
-
110888025030 WOODRUFF KEY DIN6888-2,5X3WOODRUFF KEY DIN6888-2,5X3
-
1245132020000 WASHER 10,4X16,8X0,4WASHER 10,4X16,8X0,4
-
1358414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
1445139004000 FLYWHEEL STATOR 50CCM LCFLYWHEEL STATOR 50CCM LC
-
150012050253 AH SCREW DIN6912 M5X25AH SCREW DIN6912 M5X25
-
1645230024000 DOWEL 9,8X7X5.5DOWEL 9,8X7X5.5
-
1745230002300 IGNITION COVER CPL.IGNITION COVER CPL.
-
190025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
