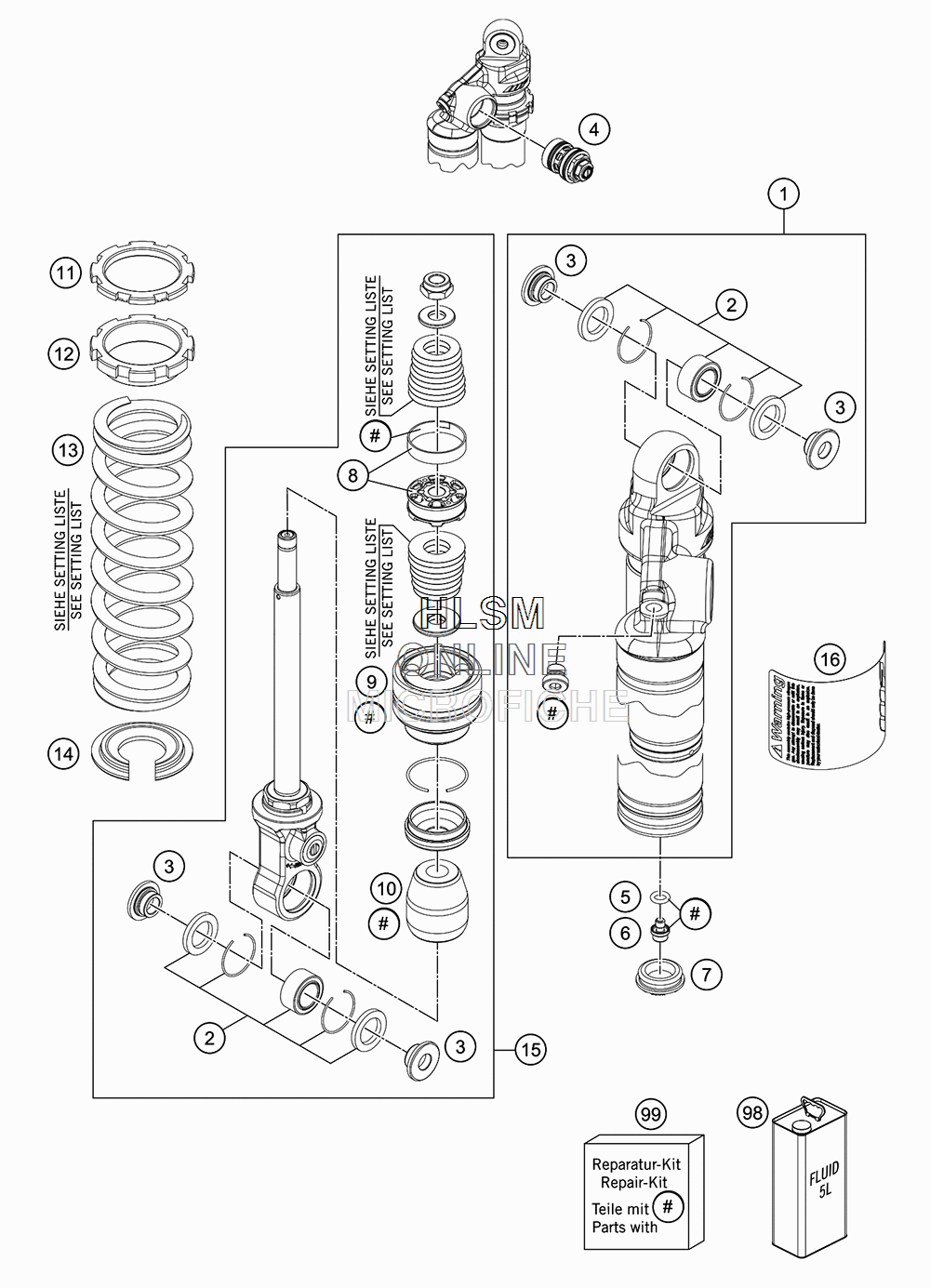

SHOCK ABSORBER DISASSEMBLED для Ktm 65 SX MINI - 2018 года выпуска
-
№АртикулНазвание
-
136120846S1 MONOSHOCK TOP PART CPL.MONOSHOCK TOP PART CPL.
-
2R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
346180009 SPACER BUSHING KGW 10X22SPACER BUSHING KGW 10X22
-
450181101S9 DCC-MINI 65SXDCC-MINI 65SX
-
546810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
636120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
746811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
814460016 PISTON + PISTON SPRINGPISTON + PISTON SPRING
-
936120787S ADAPTOR 36MM H26,6 CPL.ADAPTOR 36MM H26,6 CPL.
-
1036120799 BUMP RUBBERBUMP RUBBER
-
1136120015 COUNTERNUTCOUNTERNUT
-
1236120418 ADJUSTING NUTADJUSTING NUT
-
1393010224S SHOCK SPRING 35N/MM - 210MMSHOCK SPRING 35N/MM - 210MM
-
1393010225S SHOCK SPRING 40N/MM - 210MMSHOCK SPRING 40N/MM - 210MM
-
1393010226S SHOCK SPRING 45N/MM - 210MMSHOCK SPRING 45N/MM - 210MM
-
1436120386 SPRING RET. H=3, D=14,5SPRING RET. H=3, D=14,5
-
1536120781S12 MONOSHOCK LOWER PART CPL.MONOSHOCK LOWER PART CPL.
-
1652000143 STICKER WP W ARNING 65X40STICKER WP W ARNING 65X40
-
9850180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
99R12023 REP AIR KITREP AIR KIT
