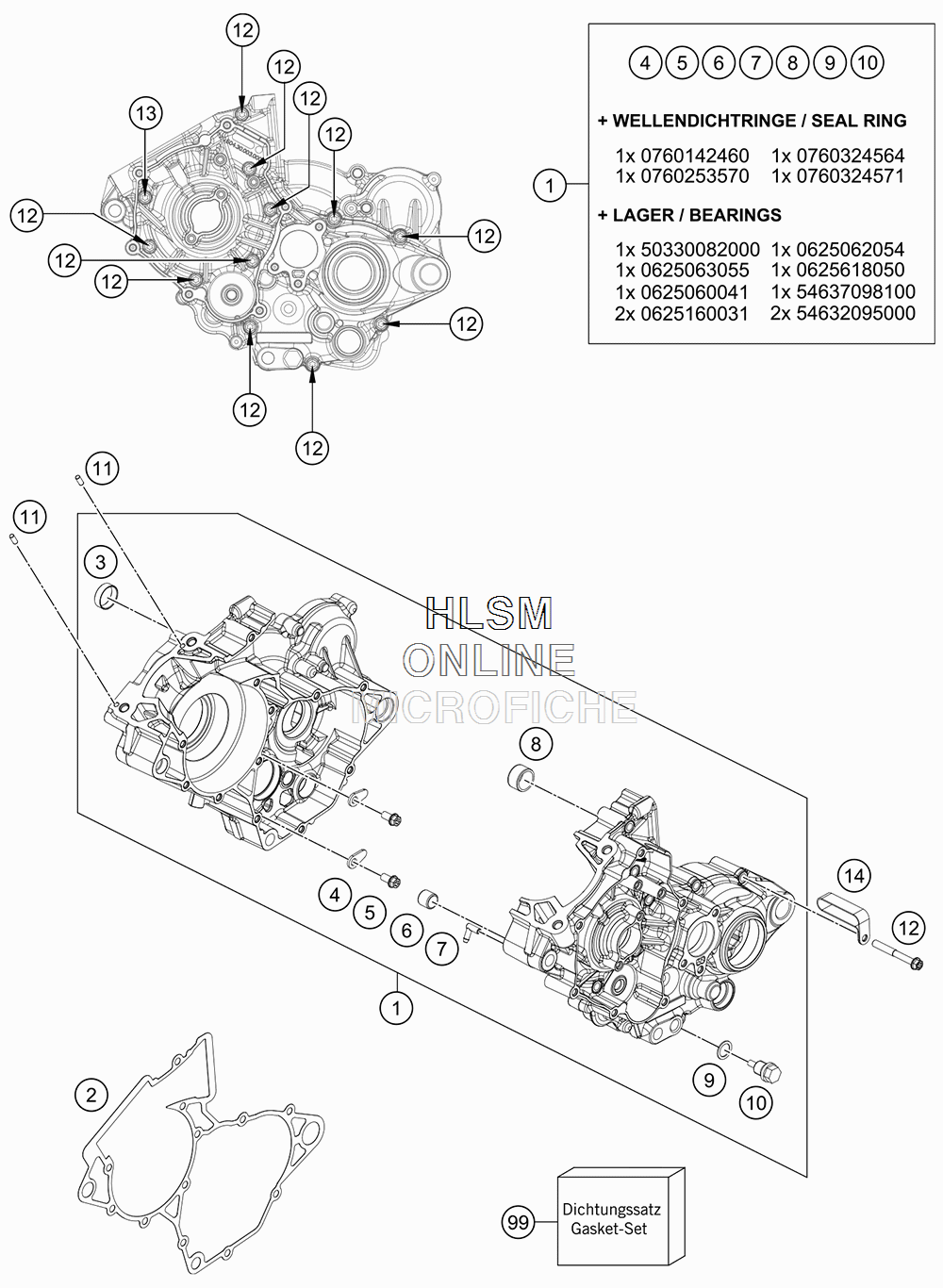

ENGINE CASE для Ktm 125SX - 2019 года выпуска
-
№АртикулНазвание
-
150430000044 ENGINECASE CPL.ENGINECASE CPL.
-
250430039000 GASKET ENGINE CASEGASKET ENGINE CASE
-
350433024050 BUSHING IDLER GEARBUSHING IDLER GEAR
-
454634049000 RETAINING PLATERETAINING PLATE
-
50025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
654630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
745130022000 ANGLE PIECE 50CCM LCANGLE PIECE 50CCM LC
-
854830027000 DOWEL 21X12DOWEL 21X12
-
958038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1058030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
110402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
120025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
130025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
1455430090000 BRACKET FOR BLEEDING TUBEBRACKET FOR BLEEDING TUBE
-
9950430099000 GASKET SET ENGINE 125/150GASKET SET ENGINE 125/150
