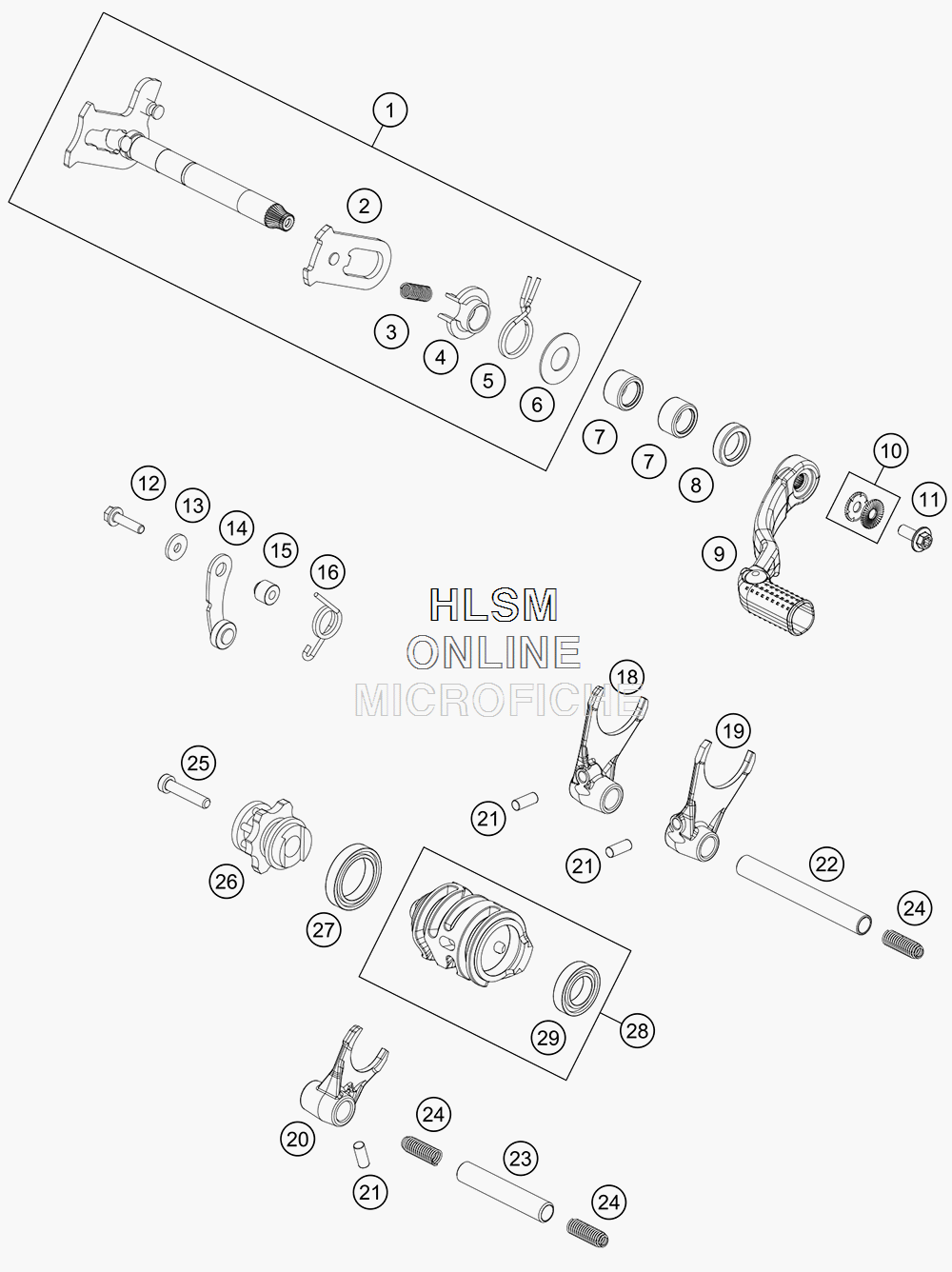

SHIFTING MECHANISM для Ktm 150 XCW - 2019 года выпуска
-
№АртикулНазвание
-
150534005044 SHIFT SHAFT CMPL.SHIFT SHAFT CMPL.
-
261234008044 SLIDING PLATESLIDING PLATE
-
356534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
454634020000 SPRING GUIDESPRING GUIDE
-
554834014000 RETURN SPRINGRETURN SPRING
-
654634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
754632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
80760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
950434031000 SHIFT LEVER CPL.SHIFT LEVER CPL.
-
1050233041500 PAIR NORDLOCK WASHER M6PAIR NORDLOCK WASHER M6
-
110024060156S HH COLLAR SCREW M6X15 TORX30HH COLLAR SCREW M6X15 TORX30
-
120025050206 HH COLLAR SCREW M5X20HH COLLAR SCREW M5X20
-
130349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
1450334024144 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
1554634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
1654834023000 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
1850434003000 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
-
1950534002000 SHIFTING FORK 2/4 GEARSHIFTING FORK 2/4 GEAR
-
2050434001000 SHIFTING FORK 5/6 GEARSHIFTING FORK 5/6 GEAR
-
210402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
2254834020000 SHIFT. RAIL C. SHAFT 250/300SHIFT. RAIL C. SHAFT 250/300
-
2354834019000 SHIFT. RAIL MAIN SHAFT 250/300SHIFT. RAIL MAIN SHAFT 250/300
-
2458038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
250012060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
2650434015100 SHIFT DRUM LOCATING CPL.SHIFT DRUM LOCATING CPL.
-
270625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2850534012033 SHIFT ROLLER CPL.SHIFT ROLLER CPL.
-
290625069034 BALL BEARING 6903 C4BALL BEARING 6903 C4
