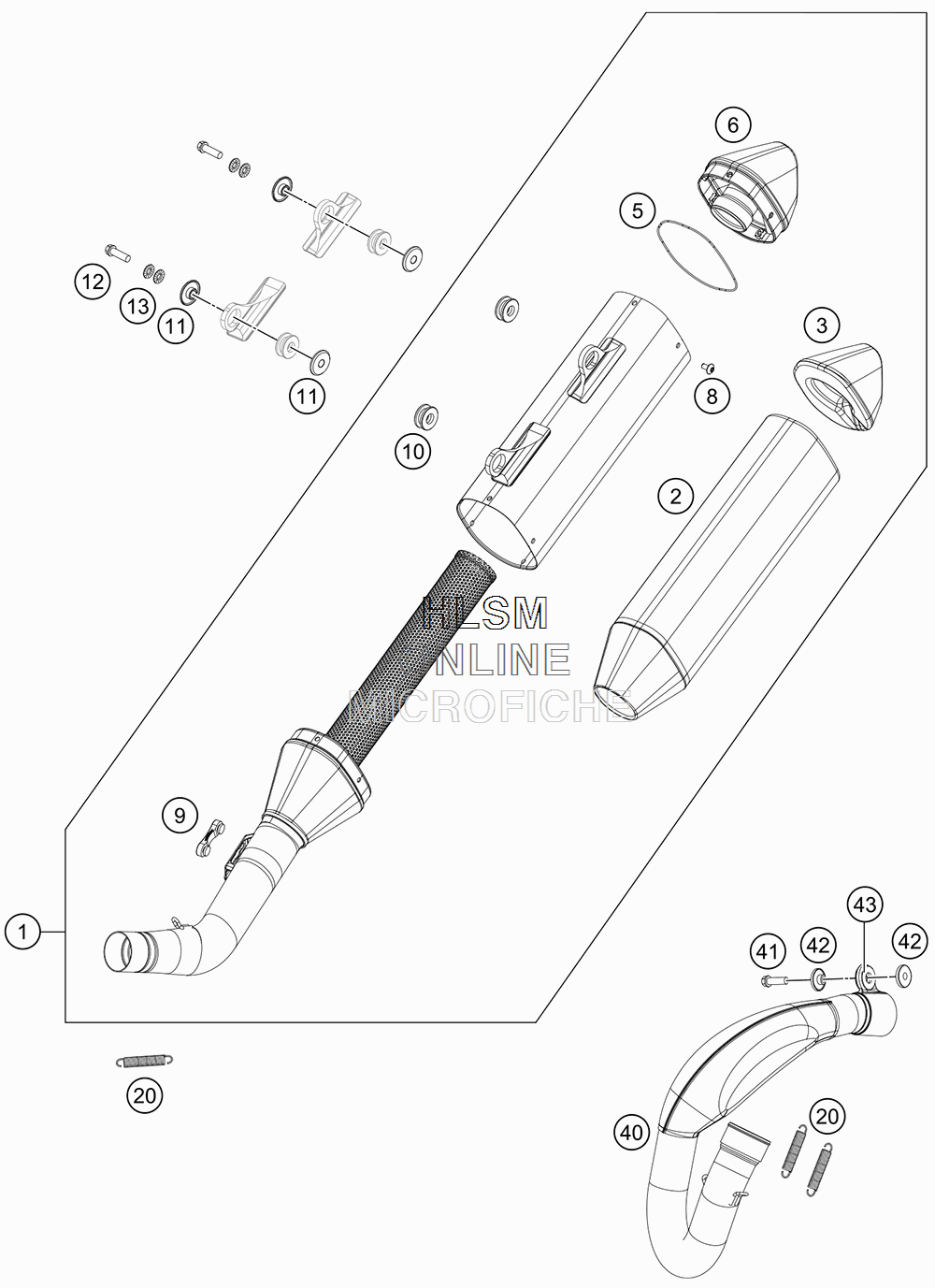

EXHAUST SYSTEM для Ktm 250 SXF - 2019 года выпуска
-
№АртикулНазвание
-
179105079000 SILENCERSILENCER
-
279105078520 ROCKWOOL PREFORMEDROCKWOOL PREFORMED
-
379105078080 ROCKWOOL PREFORMEDROCKWOOL PREFORMED
-
50770800021 O-RING 80,00X2,00 VITONO-RING 80,00X2,00 VITON
-
679105079060 ENDCAP CPL.ENDCAP CPL.
-
878105081010 SCREW TORX M5X10SCREW TORX M5X10
-
979105098000 EXHAUST SPACEREXHAUST SPACER
-
1077205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
1177205169000 BUSHING 7.5X12X28X8.3BUSHING 7.5X12X28X8.3
-
120025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
1350233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
4079105007000 EXHAUST MAINFOLDEXHAUST MAINFOLD
-
410025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
4259405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
-
4379105068000 DAMPER GRAYDAMPER GRAY
