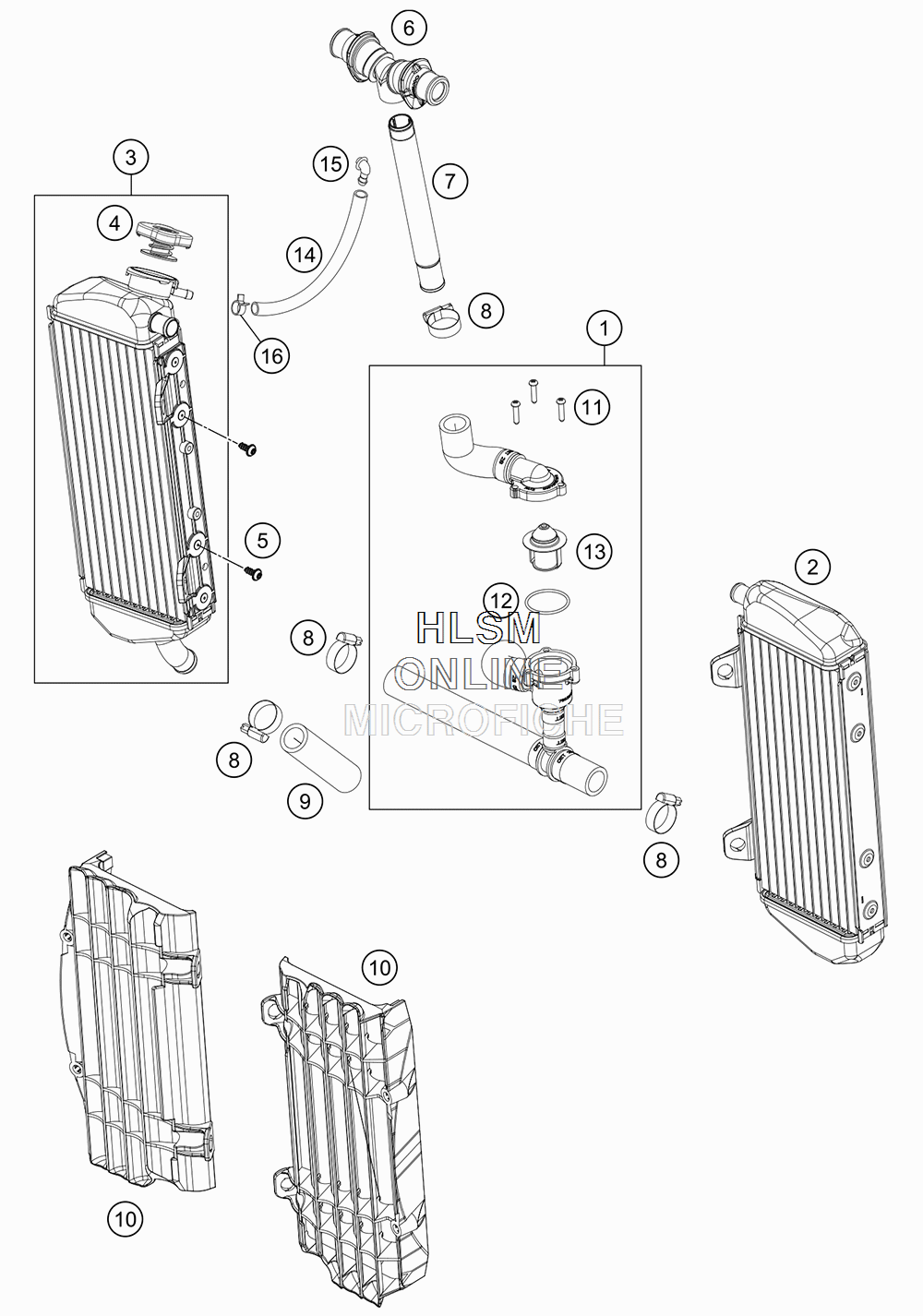

COOLING SYSTEM для Ktm 250 XCW-TPI - 2019 года выпуска
-
№АртикулНазвание
-
155635026133 PREFORMED HOSE W . THERM.PREFORMED HOSE W . THERM.
-
250435007200 RADIATOR LEFTRADIATOR LEFT
-
350435008200 RADIATOR RIGHTRADIATOR RIGHT
-
479035016000 RADIATOR CAP 1,8 BARRADIATOR CAP 1,8 BAR
-
50024060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
679035071044 Y-PIECE CPL.Y-PIECE CPL.
-
750435073000 COOLING WATER PIPECOOLING WATER PIPE
-
810001020000 HOSE CLAMP GEMI 18-29HOSE CLAMP GEMI 18-29
-
955635027000 PRE-FORMENDHOSEE NGINE/RADIA TPRE-FORMENDHOSEE NGINE/RADIA T
-
107903513400030 RADIA TOR PROTECTORRADIA TOR PROTECTOR
-
110016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
120770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
1359435017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
1450335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
1550303089000 ANGLE PIECEANGLE PIECE
-
1659007017000 CLAMP YDNAC 10096F (9,6MM)CLAMP YDNAC 10096F (9,6MM)
